CTX50-1P-R

ACTIVE Nonstandard EAR99

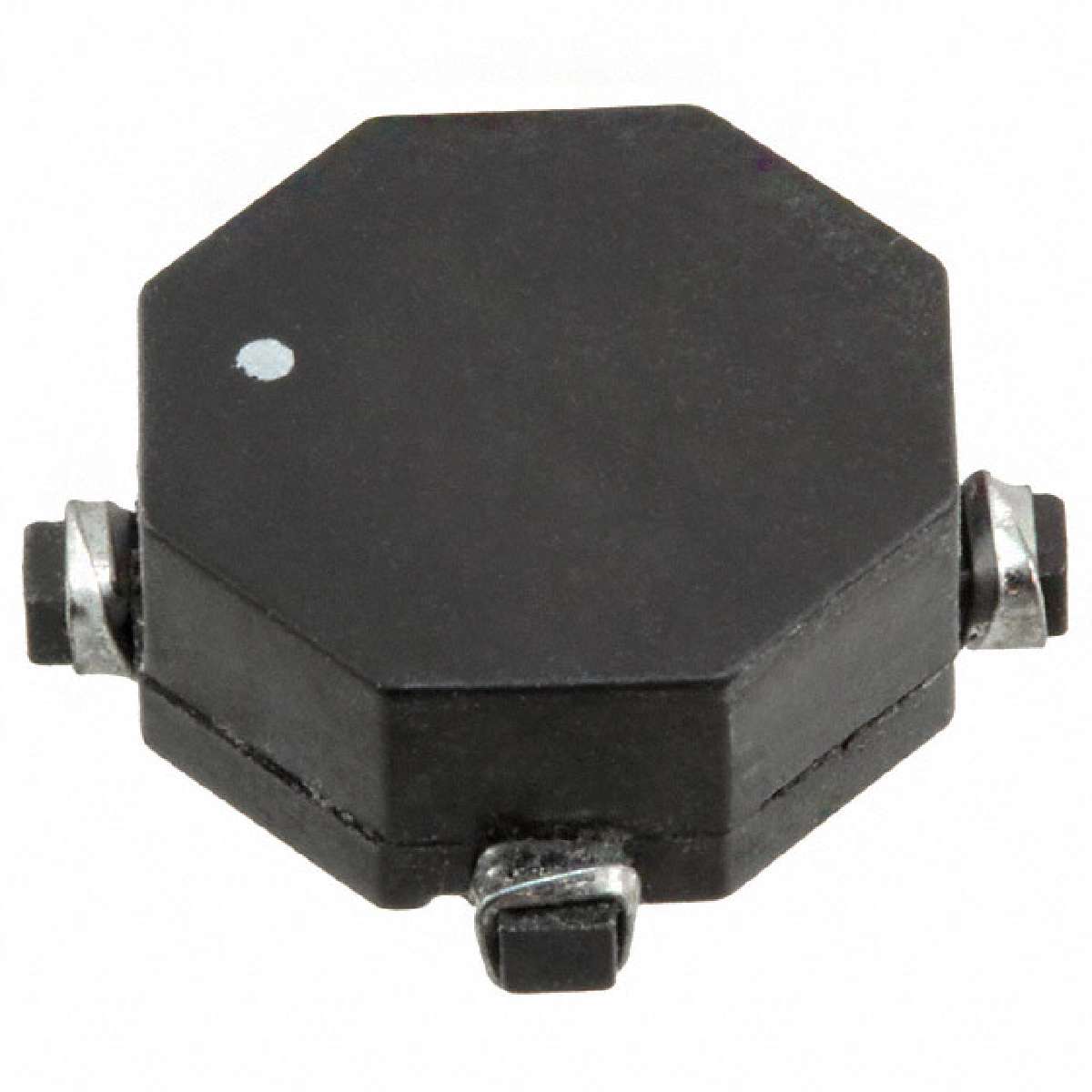

Product description : CTX Series 50.52 uH 0.7 A 0.316 Ohm DCR Horizontal SMT EconoPac Power Inductor
SPQ：1100
Datasheet : CTX50-1P-R.pdf

Package / Case	Nonstandard
DC Resistance (DCR) - Series	1.263 Ohm Max
Height	0.165" (4.19mm)
Inductance - Connected In Series	202.07µH
Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Current Rating - Series	350mA
Category	Inductors, Coils, Chokes
Series	Econo-Pac™
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
ECCN	EAR99
Tolerance	±20%
DC Resistance (DCR) - Parallel	316 mOhm Max
Number of Coils	2
Inductance - Connected In Parallel	50.52µH
Part Status	Active
Current Rating - Parallel	700mA
Manufacturer	Eaton
Family	Arrays, Signal Transformers
Shielding	Unshielded
Packaging	Tape & Reel (TR)

Datasheet： CTX50-1P-R.pdf
