CTX33-1P-R specifications -Ameya360 electronic components purchase network

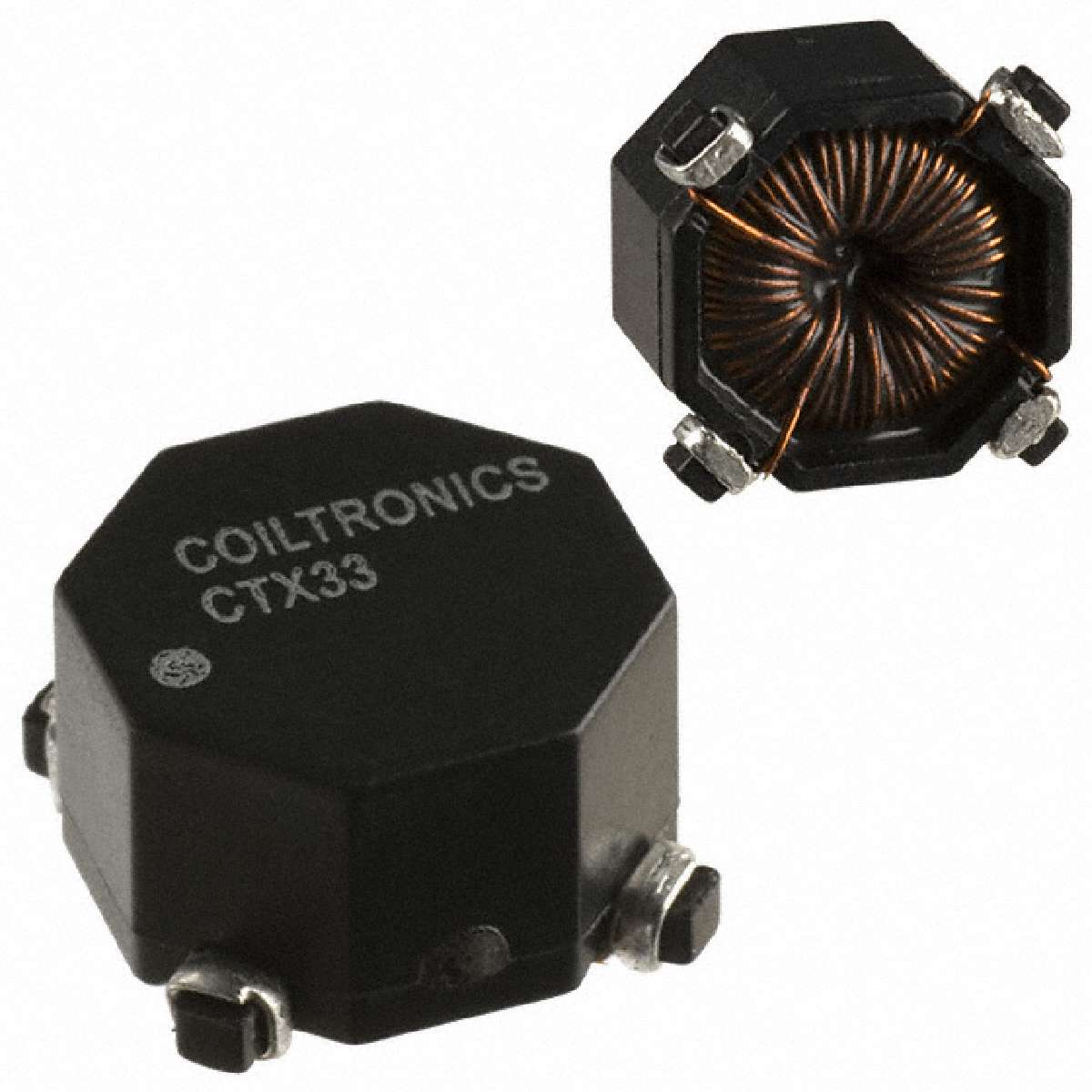

CTX33-1P-R

ACTIVE Nonstandard EAR99
Product description : CTX Series 32.33 uH 0.8 A Shielded Horizontal SMT EconoPac Toroidal Inductor
SPQ：1100
Datasheet : CTX33-1P-R.pdf

Package / Case	Nonstandard
DC Resistance (DCR) - Series	1.001 Ohm Max
Height	0.165" (4.19mm)
Inductance - Connected In Series	129.32µH
Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Current Rating - Series	400mA
Category	Inductors, Coils, Chokes
Series	Econo-Pac™
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
ECCN	EAR99
Tolerance	±20%
DC Resistance (DCR) - Parallel	250 mOhm Max
Number of Coils	2
Inductance - Connected In Parallel	32.33µH
Part Status	Active
Current Rating - Parallel	800mA
Manufacturer	Eaton
Family	Arrays, Signal Transformers
Shielding	Unshielded
Packaging	Cut Tape (CT)

Datasheet： CTX33-1P-R.pdf
