CTX20-4P-R

ACTIVE Nonstandard EAR99

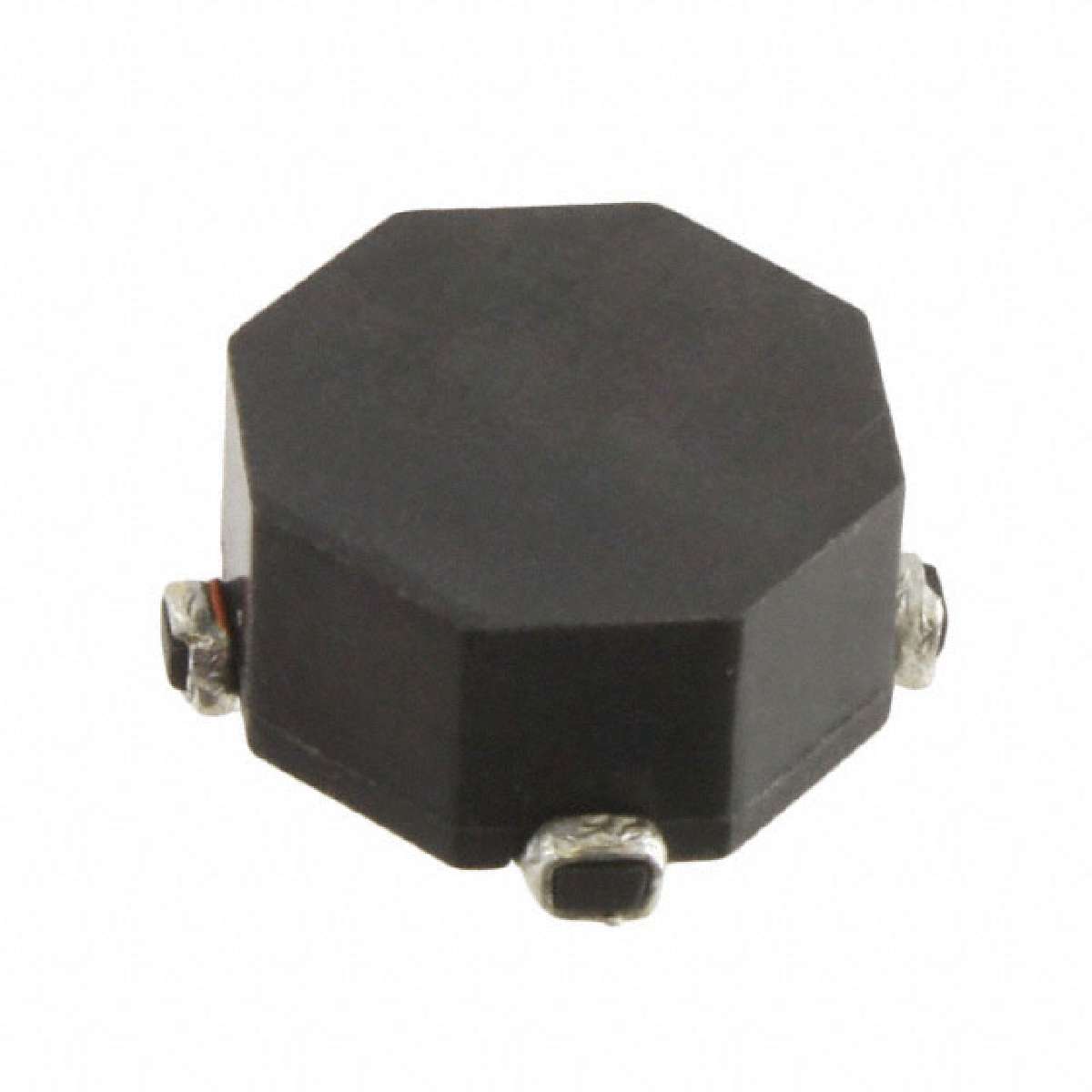

Product description : CTX Series 20.62 uH 1.9 A Shielded Horizontal SMT EconoPac Toroidal Inductor
SPQ：600
Datasheet : CTX20-4P-R.pdf

Package / Case	Nonstandard
DC Resistance (DCR) - Series	337 mOhm Max
Height	0.250" (6.35mm)
Inductance - Connected In Series	82.47µH
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Current Rating - Series	950mA
Category	Inductors, Coils, Chokes
Series	Econo-Pac™
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
ECCN	EAR99
Tolerance	±20%
DC Resistance (DCR) - Parallel	84 mOhm Max
Number of Coils	2
Inductance - Connected In Parallel	20.62µH
Part Status	Active
Current Rating - Parallel	1.9A
Manufacturer	Eaton
Family	Arrays, Signal Transformers
Shielding	Unshielded
Packaging	Cut Tape (CT)

Datasheet： CTX20-4P-R.pdf
