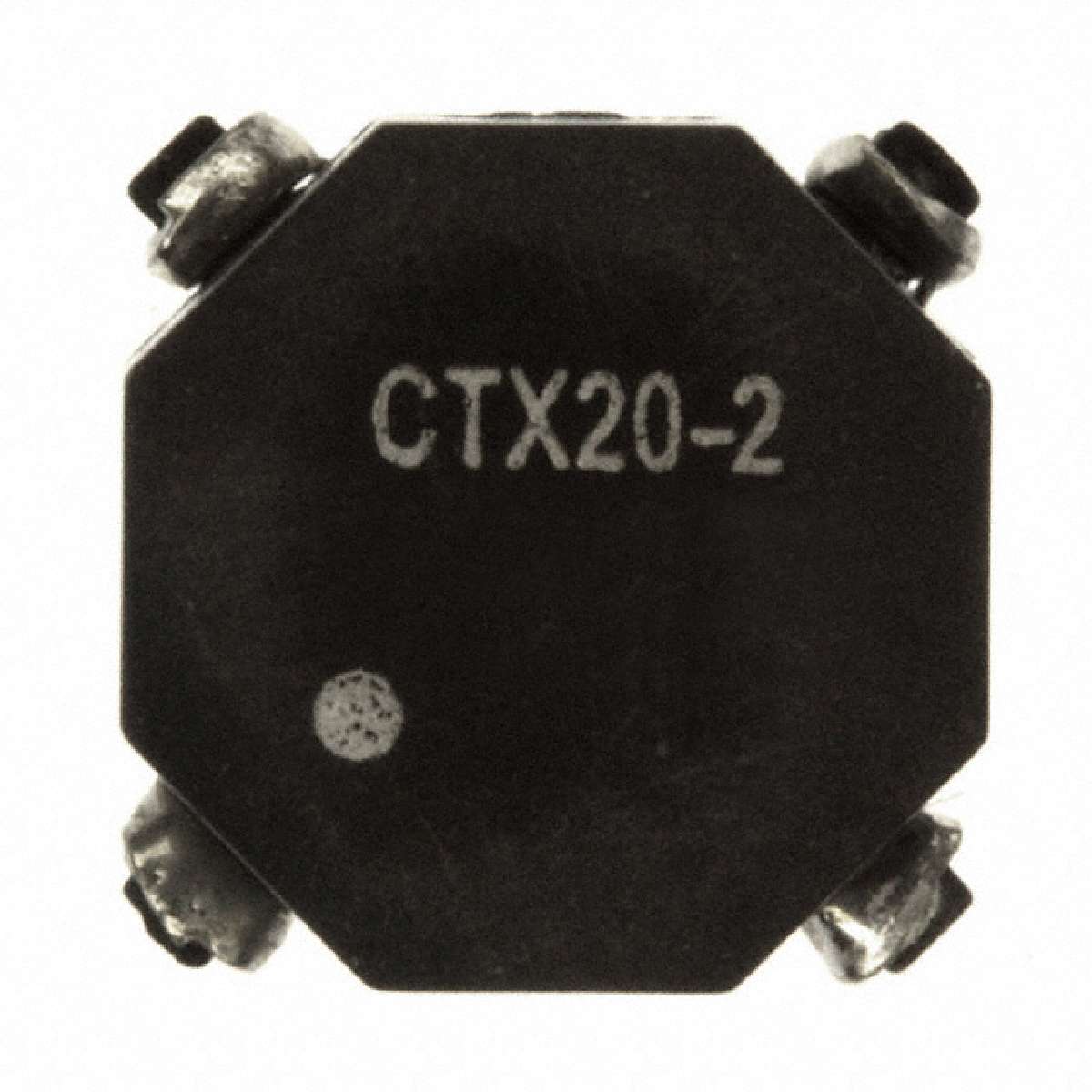

CTX20-2-R

ACTIVE Nonstandard EAR99
Product description : CTX Series 20.73 uH 1.3 A Shielded Horizontal SMT OctaPac Toroidal Inductor
SPQ：800
Datasheet : CTX20-2-R.pdf

Package / Case	Nonstandard
DC Resistance (DCR) - Series	426 mOhm Max
Height	0.235" (5.97mm)
Inductance - Connected In Series	82.91µH
Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Current Rating - Series	650mA
Category	Inductors, Coils, Chokes
Series	OCTA-PAC®
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
ECCN	EAR99
Tolerance	±20%
DC Resistance (DCR) - Parallel	107 mOhm Max
Number of Coils	2
Inductance - Connected In Parallel	20.73µH
Part Status	Active
Current Rating - Parallel	1.3A
Manufacturer	Eaton
Family	Arrays, Signal Transformers
Shielding	Unshielded
Packaging	Cut Tape (CT)

Datasheet： CTX20-2-R.pdf
