CTX15-4A-R

ACTIVE EAR99

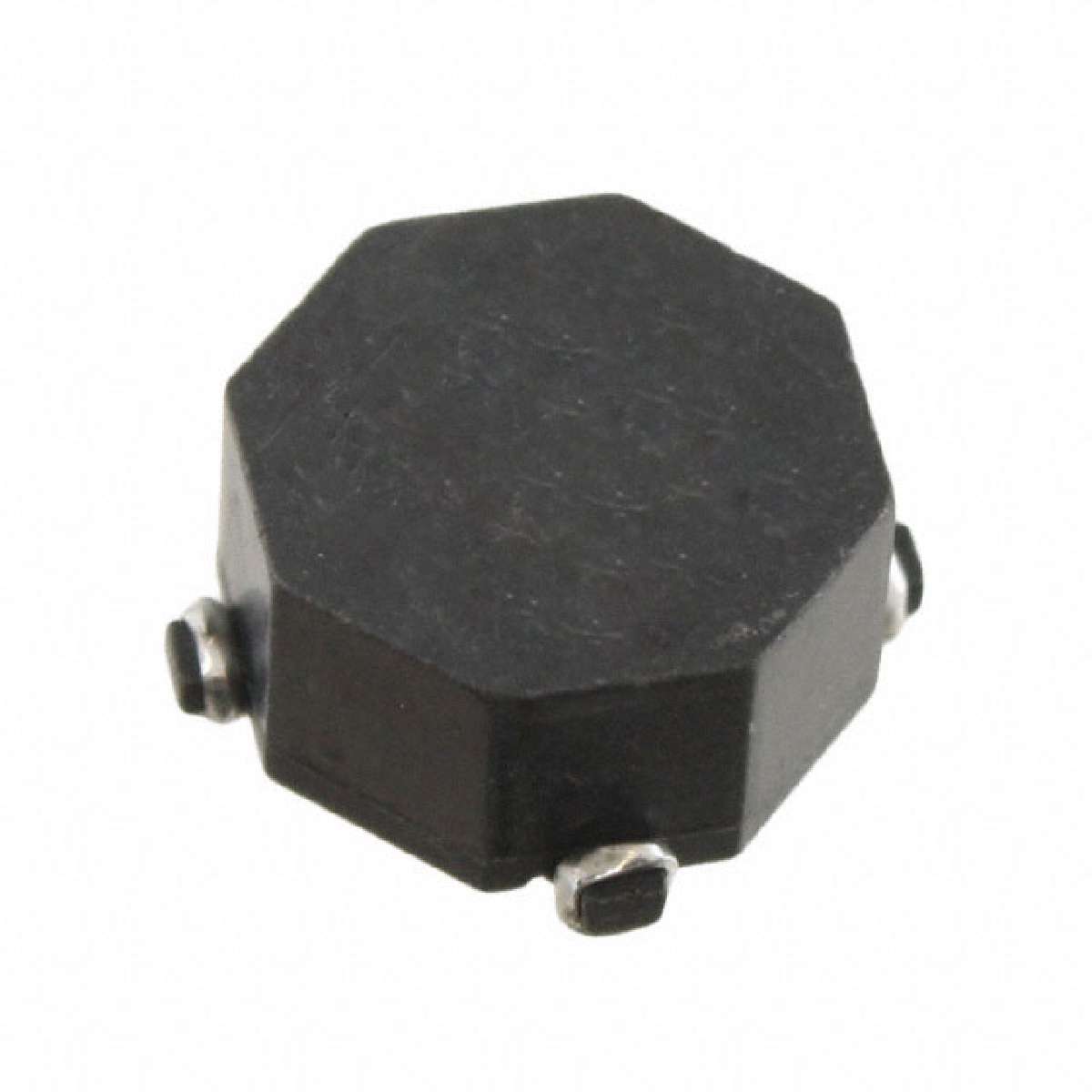

Product description : CTX Series 14.7 uH 3.46A 0.029Ohm DCR Horizontal SMT OctaPac Plus Power Inductor
SPQ：600
Datasheet : CTX15-4A-R.pdf

Width:	11.43 mm
Product:	Power Inductors
Inductance - Parallel:	14.7 uH
Manufacturer:	Eaton
Factory Pack Quantity:	600
Maximum DC Current:	3.46 A
Inductance - Series:	58.81 uH
Product Category:	Coupled Inductors
Tolerance:	20 %
Unit Weight:	0.080000 oz
Mounting Style:	SMD/SMT
Core Material:	Amorphous Metal
Packaging:	Reel
Length:	11.43 mm
Operating Temperature Range:	- 40 C to + 85 C
Brand:	Coiltronics / Eaton
RoHS:	Details
Termination Style:	SMD/SMT
Maximum DC Resistance:	29 mOhms
Height:	6.35 mm
Type:	Inductors and Transformers
ECCN	EAR99

Datasheet： CTX15-4A-R.pdf
