| AXK6S60447YG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

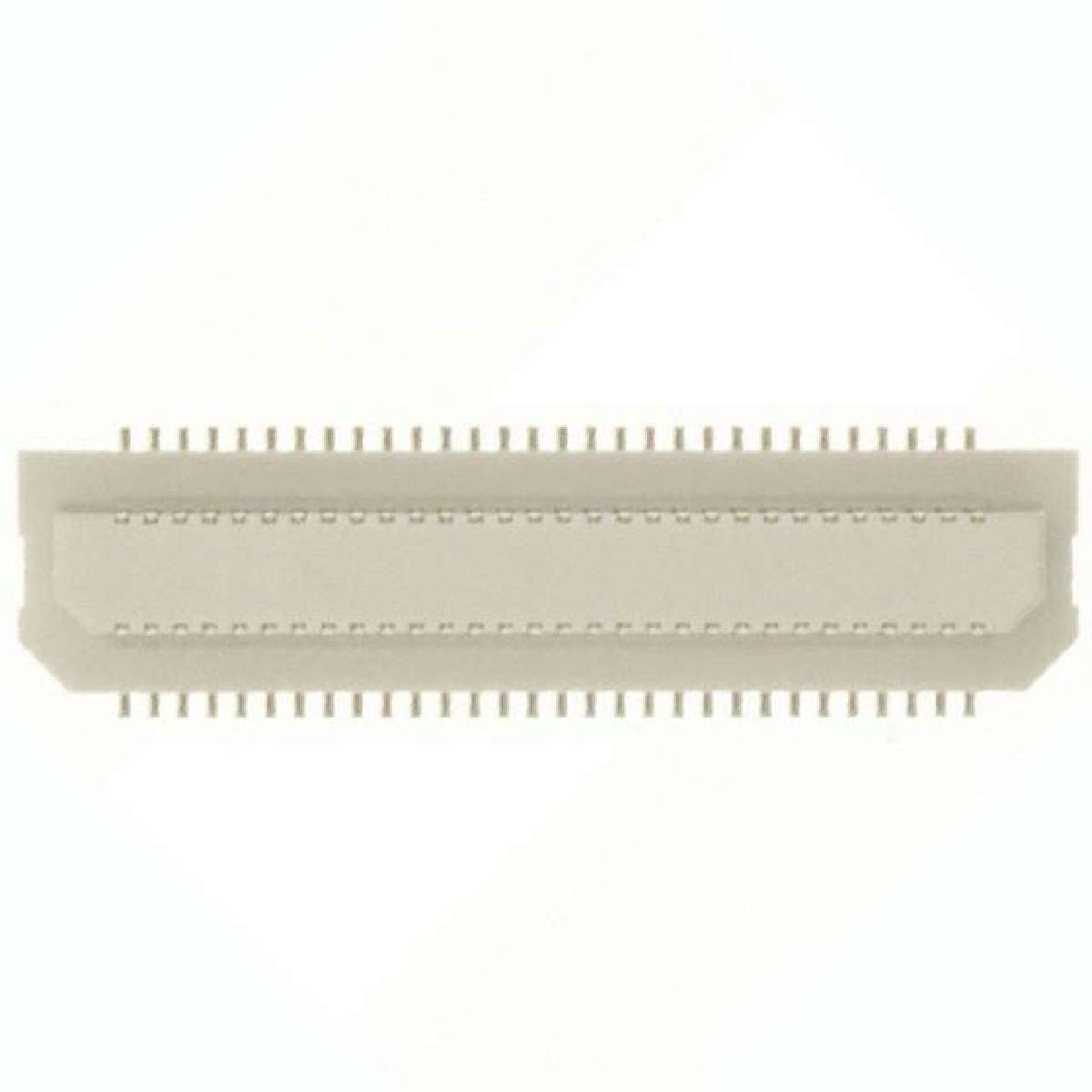

60 Position 0.5 mm Pitch Dual Row Board to Board Surface Mount Header Connector
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Height Above Board | 0.130" (3.30mm) |
|---|---|
| Contact Finish | Gold |
| Product Training Modules | Tough Contact Connectors |
| Other Related Documents | Connectors SMD-Technical Info How to Read Date Codes |
| Number of Positions | 60 |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Connector Type | Header, Outer Shroud Contacts |
| Pitch | 0.020" (0.50mm) |
| RoHS | Lead free / RoHS Compliant |
| Mated Stacking Heights | 4mm, 4.5mm, 7mm |
| Catalog Drawings | P5KS Series_Header-18.20 P5KS Series_Header FtPrnt-14.50 |
| Mating | 255-2557-2-ND - CONN SOCKET P5KS .5MM 60POS SMD 255-2558-2-ND - CONN SOCKET P5KS .5MM 60POS SMD 255-2557-1-ND - CONN SOCKET P5KS .5MM 60POS SMD 255-2558-1-ND - CONN SOCKET P5KS .5MM 60POS SMD 255-2557-6-ND - CONN SOCKET P5KS .5MM 60POS SMD 255-2558-6-ND |
| Online Catalog | P5K and P5KS Series |
| Series | P5KS |
| Mounting Type | Surface Mount |
| Number of Rows | 2 |
| Packaging | Cut Tape (CT) |
| ECCN | EAR99 |
