| CS22-08IO1M | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

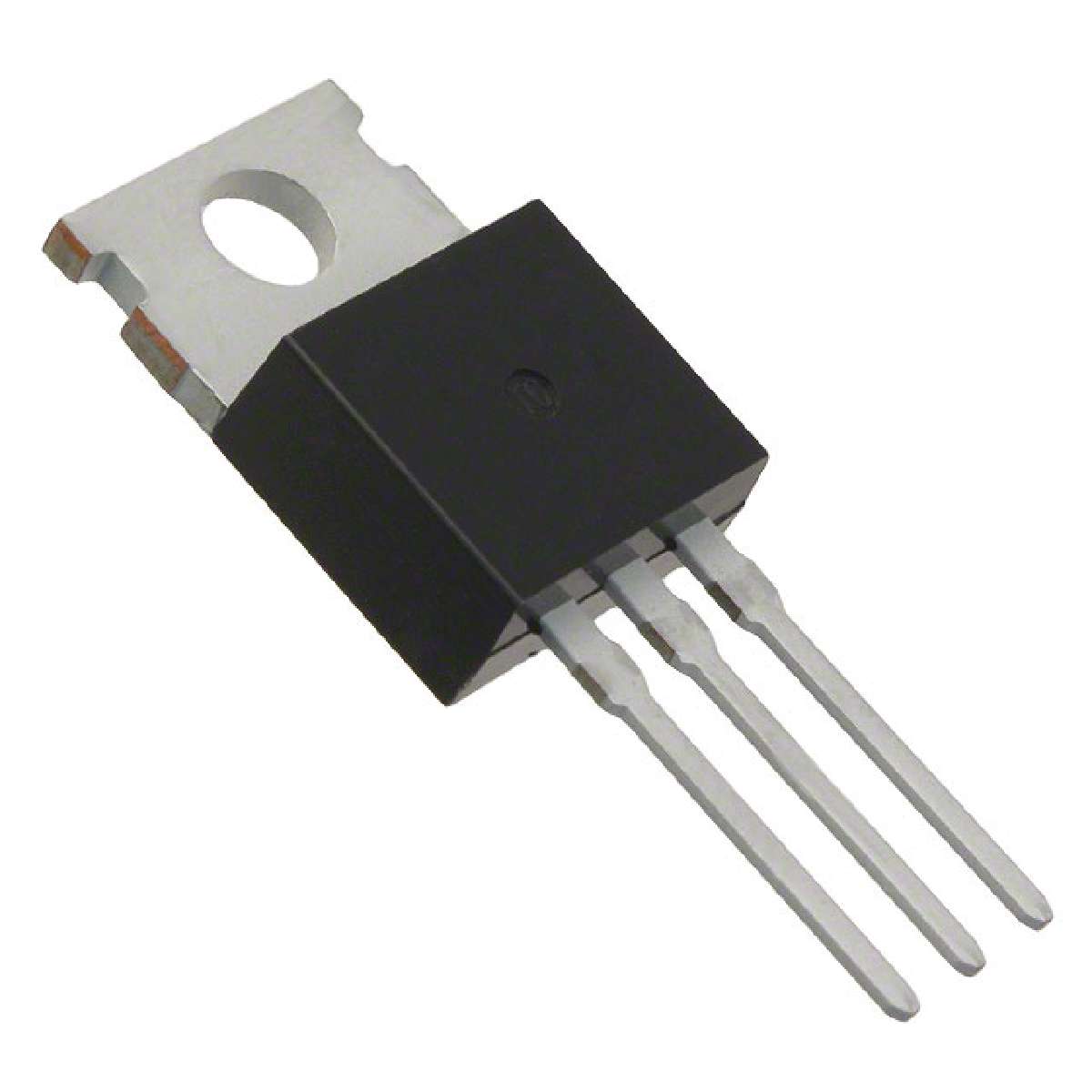

CS22 Series 800 Vrrm 18 A 1.4 Vt Phase Control Thyristor - TO-220
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| SCR Type | Standard Recovery |
|---|---|
| Current - On State (It (AV)) (Max) | 16A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 325A |
| Part Status | Active |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
| Manufacturer | IXYS |
| Current - On State (It (RMS)) (Max) | 25A |
| Mounting Type | Through Hole |
| Current - Hold (Ih) (Max) | 60mA |
| Packaging | Tube |
| Package / Case | TO-220-3 Isolated Tab |
| Supplier Device Package | TO-220 Isolated Tab |
| Current - Gate Trigger (Igt) (Max) | 30mA |
| Voltage - On State (Vtm) (Max) | 1.3V |
| Category | Discrete Semiconductor Products |
| Current - Off State (Max) | 10µA |
| Family | Thyristors - SCRs |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Off State | 800V |
| ECCN | EAR99 |
