CS12ANW03 specifications -Ameya360 electronic components purchase network

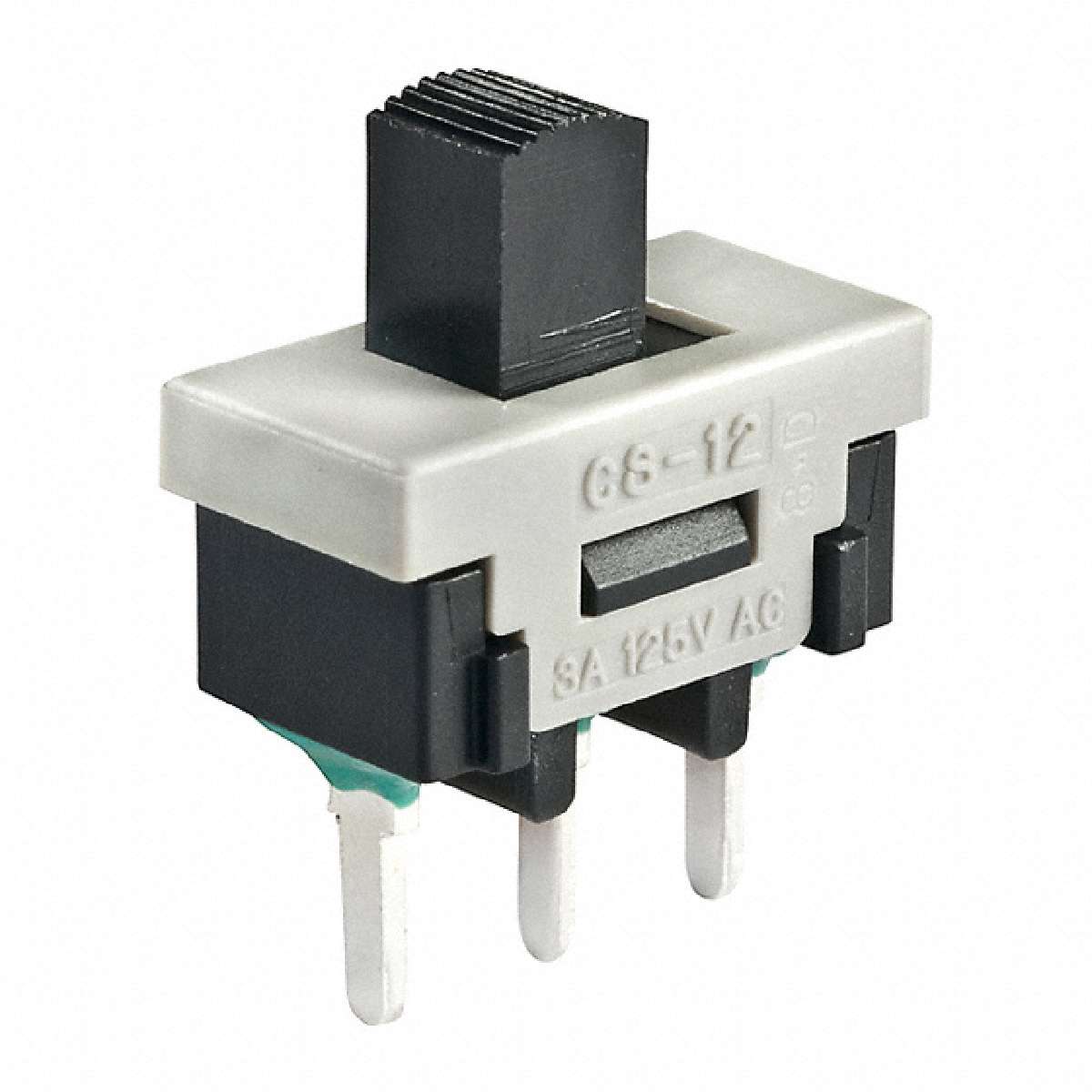

CS12ANW03

ACTIVE EAR99
Product description : CS Series SPDT On-None-On 12 V Miniature Power Rated Slide Switch
SPQ：100
Datasheet : CS12ANW03.pdf

Mounting Angle:	Straight
Switch Function:	ON - ON
Actuator:	Narrow
Voltage Rating AC:	125 V
Operating Temperature Range:	- 30 C to + 85 C
Factory Pack Quantity:	1
Brand:	NKK Switches
Termination Style:	Straight PC
Product Category:	Slide Switches
Contact Plating:	Silver
Type:	Power Rated Slide Switches
Mounting Style:	PCB
Packaging:	Bulk
Travel:	2.2 mm
Manufacturer:	NKK Switches
Series:	CS
Contact Form:	SPDT
Part # Aliases:	CS-12AAP1
RoHS:	Details
Contact Material:	Copper
Flammability Rating:	UL 94 V-0
Illumination:	Non-Illuminated
Contact Current Rating:	3 A at 125 VAC
ECCN	EAR99

Datasheet： CS12ANW03.pdf
