| CRLCBSR-12-01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

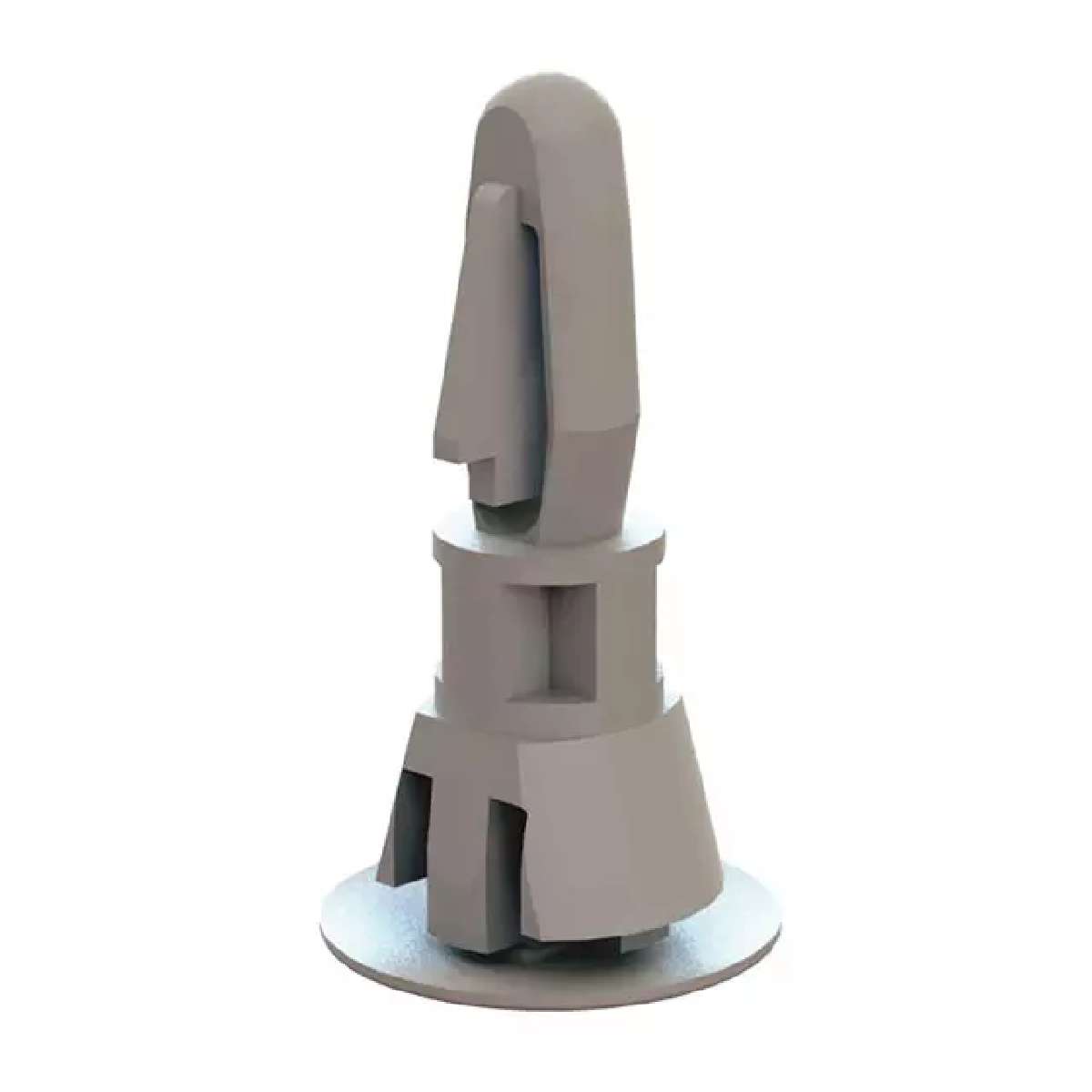

CRLCBSR Series Natural Nylon .750 inch Reverse Locking Circuit Board Support
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Mounting Hole Diameter | 0.236" (6.00mm) |
|---|---|
| Material | Nylon |
| Holding Type | Snap Lock |
| Between Board Height | 0.750" (19.05mm) 3/4" |
| Category | Hardware, Fasteners, Accessories |
| Mounting Panel Thickness | 0.031" ~ 0.047" (0.80mm ~ 1.20mm) |
| Series | CRLCBSR |
| Mounting Type | Snap Lock |
| Support Panel Thickness | 0.063" (1.60mm) |
| Support Hole Diameter | 0.157" (3.99mm) |
| Features | Locking, Reverse Mounting |
| Part Status | Active |
| Manufacturer | Essentra Components |
| Length - Overall | 1.248" (31.70mm) |
| Family | Board Supports |
| ECCN | EAR99 |
