| CRE22F2BBBNE | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

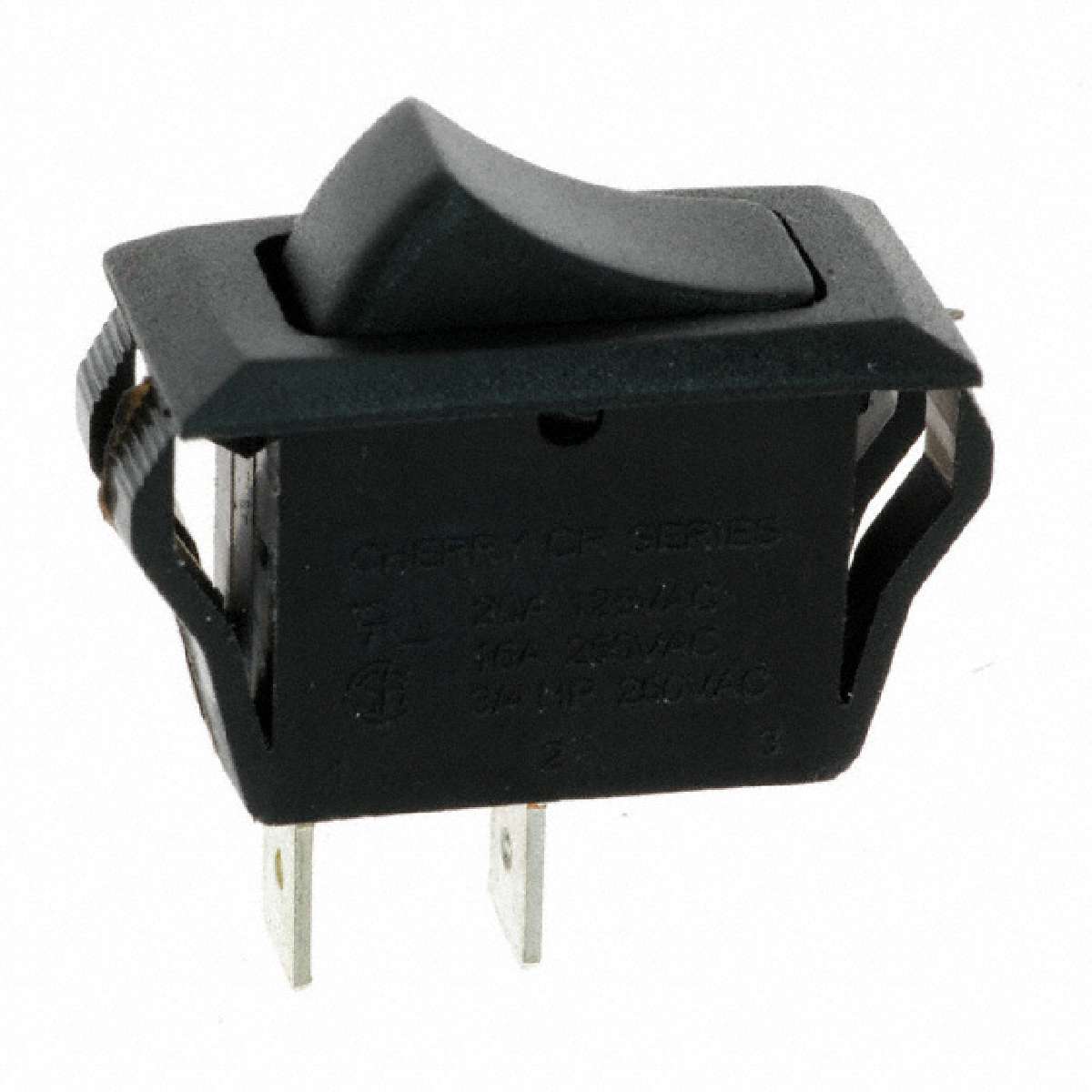

CR Series SPST On-Off 20 A 125 V Quick Connect Black Rocker Switch
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPST |
|---|---|
| Actuator Marking | No Marking |
| Voltage Rating - AC | 125V |
| Part Status | Active |
| Manufacturer | Cherry |
| Color - Actuator/Cap | Black |
| Mechanical Life | 100,000 Cycles |
| Panel Cutout Dimensions | Rectangular - 28.50mm x 12.10mm |
| Operating Temperature | -20°C ~ 85°C |
| Current Rating | 20A (AC) |
| Actuator Type | Concave (Curved) |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Electrical Life | 6,000 Cycles |
| Category | Switches |
| Series | CR |
| Family | Rocker Switches |
| Mounting Type | Panel Mount, Snap-In |
| Packaging | Bulk |
| ECCN | EAR99 |
