| CRD16CM0CB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

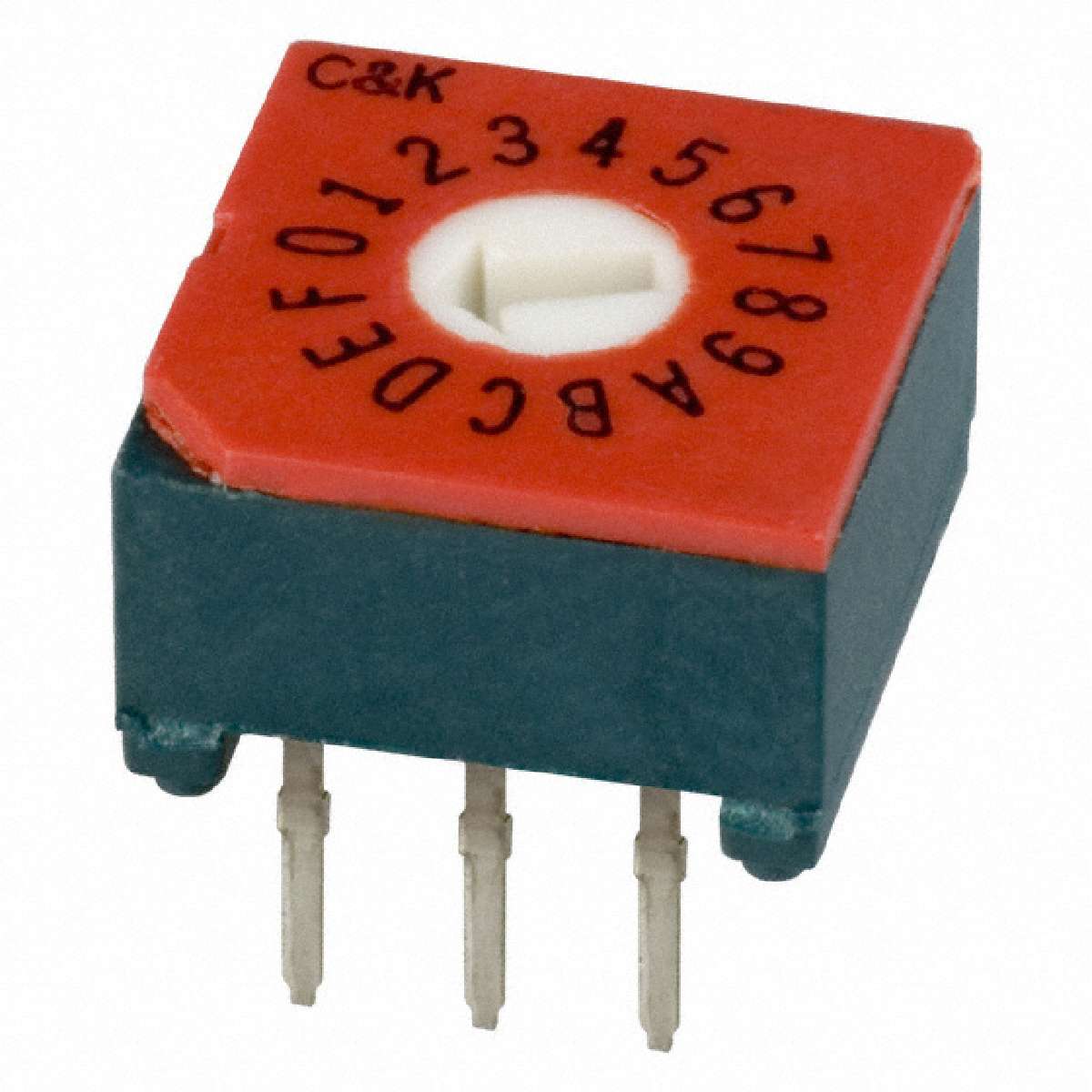

CRD Series 16 Position Through Hole Coded Rotary DIP Switch
|
||
| 标准包装：45 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination Style | PC Pin |
|---|---|
| Voltage Rating | 20VAC/DC |
| Electrical Life | 20,000 Steps |
| Washable | Yes |
| Packaging | Tube |
| Circuit | Hexadecimal Complement |
| Features | Process Sealed |
| Category | Switches |
| Actuator Level | Flush, Recessed |
| Mechanical Life | 30,000 Steps |
| Series | CRD |
| Operating Temperature | -20°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Polyphenylene Sulfide (PPS) |
| Manufacturer | C&K Components |
| Mounting Type | Through Hole |
| Height Above Board | 0.256" (6.50mm) |
| Actuator Type | Rotary for Tool |
| Part Status | Active |
| Contact Material | Beryllium Copper |
| Length | 0.393" (10.00mm) |
| Number of Positions | 16 |
| Family | DIP Switches |
| Current Rating | 0.4VA |
| ECCN | EAR99 |
