| EVQ-PAD04M | ||
|---|---|---|
|
|
||
|
||

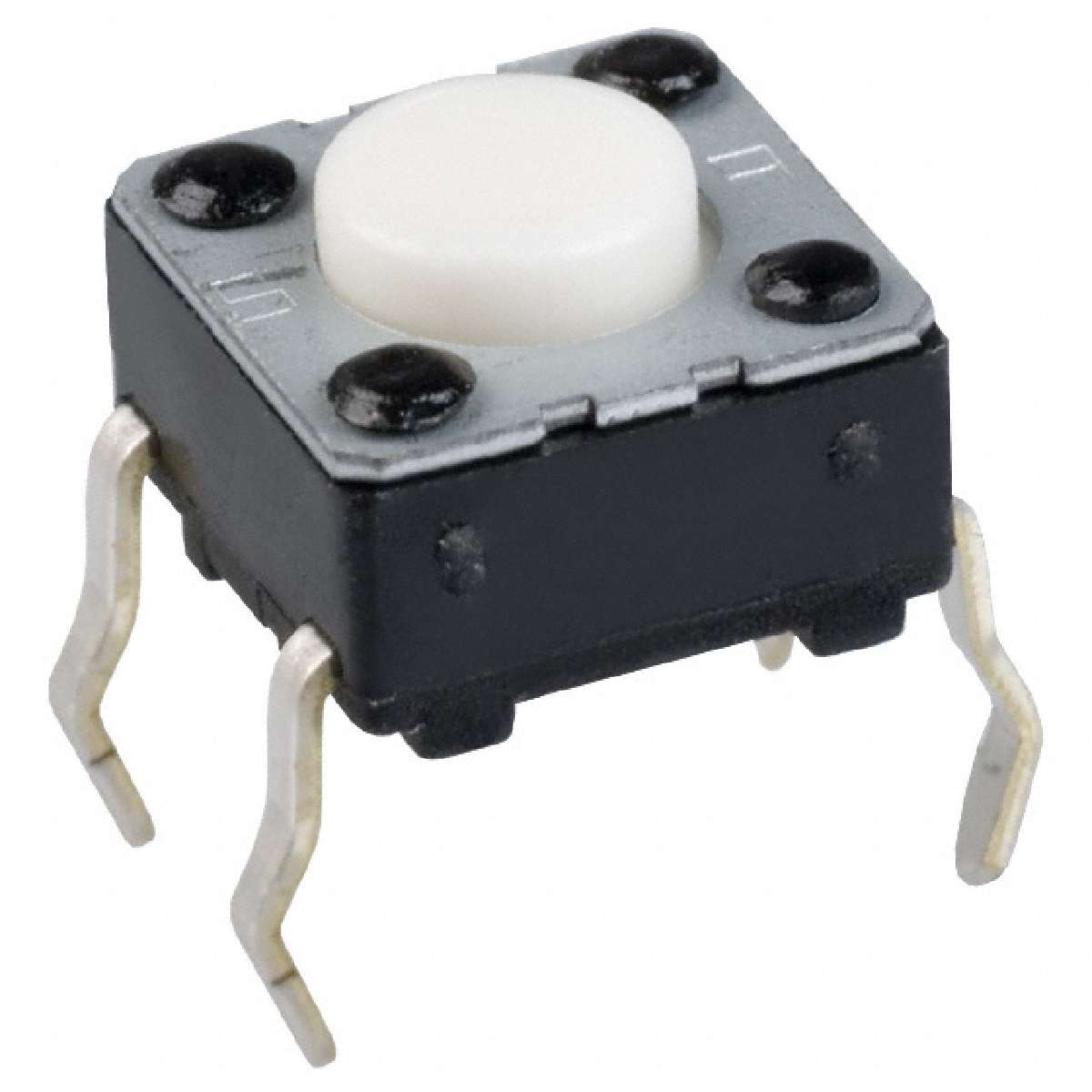

| Product description : EVQ-PA Series 6 x 6 mm Through Hole 1.3 N Light Touch Switch | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Switch Function | Off-Mom |
|---|---|
| Actuator Height off PCB, from Pins | 4.30mm |
| Product Training Modules | Tact Switches |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Illumination | Non-Illuminated |
| Switch Travel | 0.25mm |
| Series | EVQPA |
| Outline | 6.00mm x 6.00mm |
| 3D Model | EVQPA Series.stp |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Operating Force | 130gf |
| Packaging | Bulk |
| Actuator Type | Standard |
| Catalog Drawings | EVQ-PA _4.3 EVQ-PA Series Footprint Through Hole Circuit 1 |
| Online Catalog | EVQ-PA Series |
| Mechanical Life | 100,000 Cycles |
| Family | Tactile Switches |
| Operating Temperature | -20°C ~ 70°C |
| RoHS | Lead free / RoHS Compliant |
