| CONREVSMA004 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

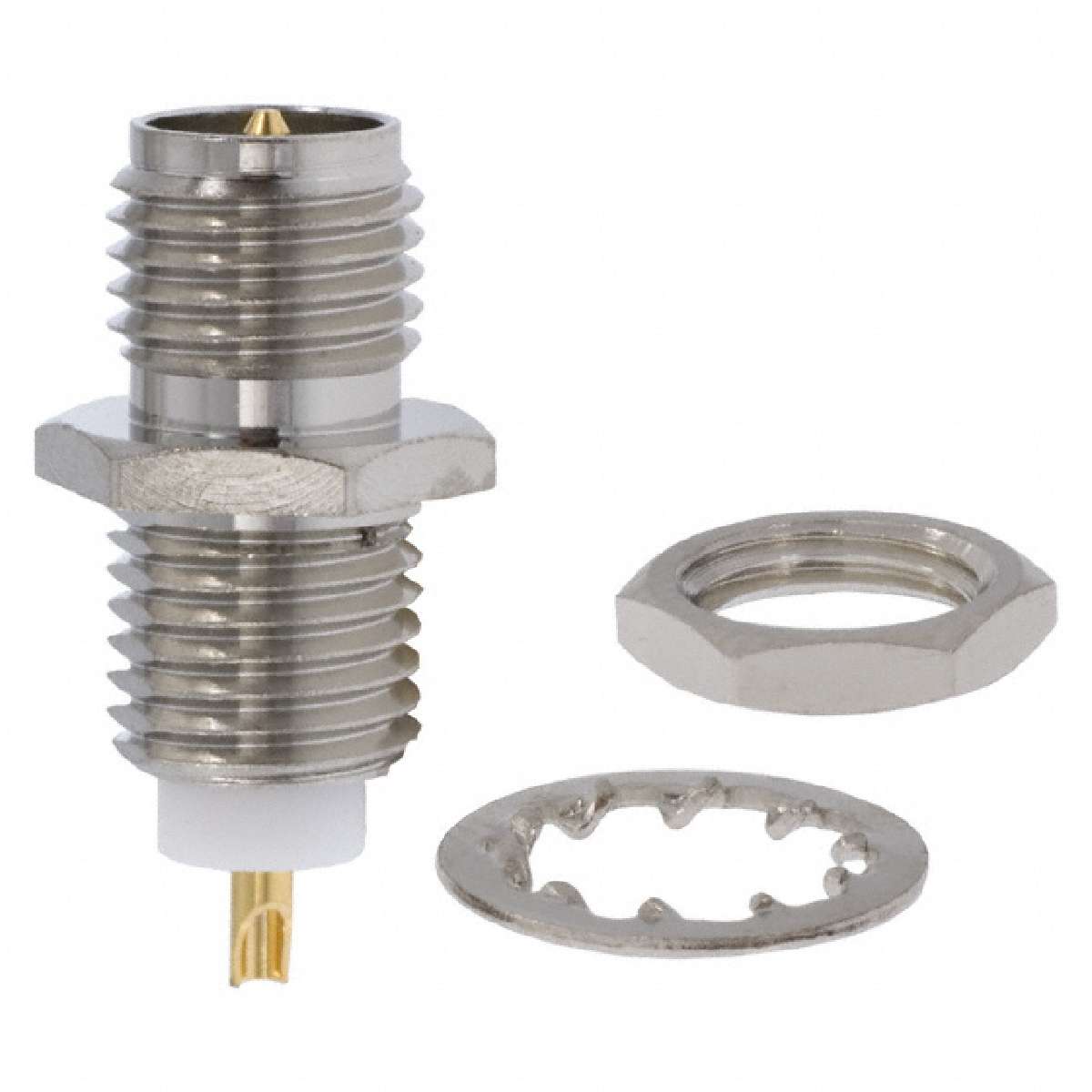

RP-SMA Series Female Bulkhead Front Mount Solder Pot Jack
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Impedance | 50 Ohm |
|---|---|
| Shield Termination | Solder |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Body Finish | Nickel |
| Packaging | Bulk |
| Housing Color | Silver |
| Features | Extended Insulation |
| Category | Connectors, Interconnects |
| Operating Temperature | -65°C ~ 165°C |
| ECCN | EAR99 |
| Connector Style | RP-SMA |
| Contact Termination | Solder Cup |
| Body Material | Brass |
| Manufacturer | Linx Technologies Inc. |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Part Status | Active |
| Family | Coaxial Connectors (RF) |
| Connector Type | Receptacle, Male Pin |
