| CMT908-V4 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

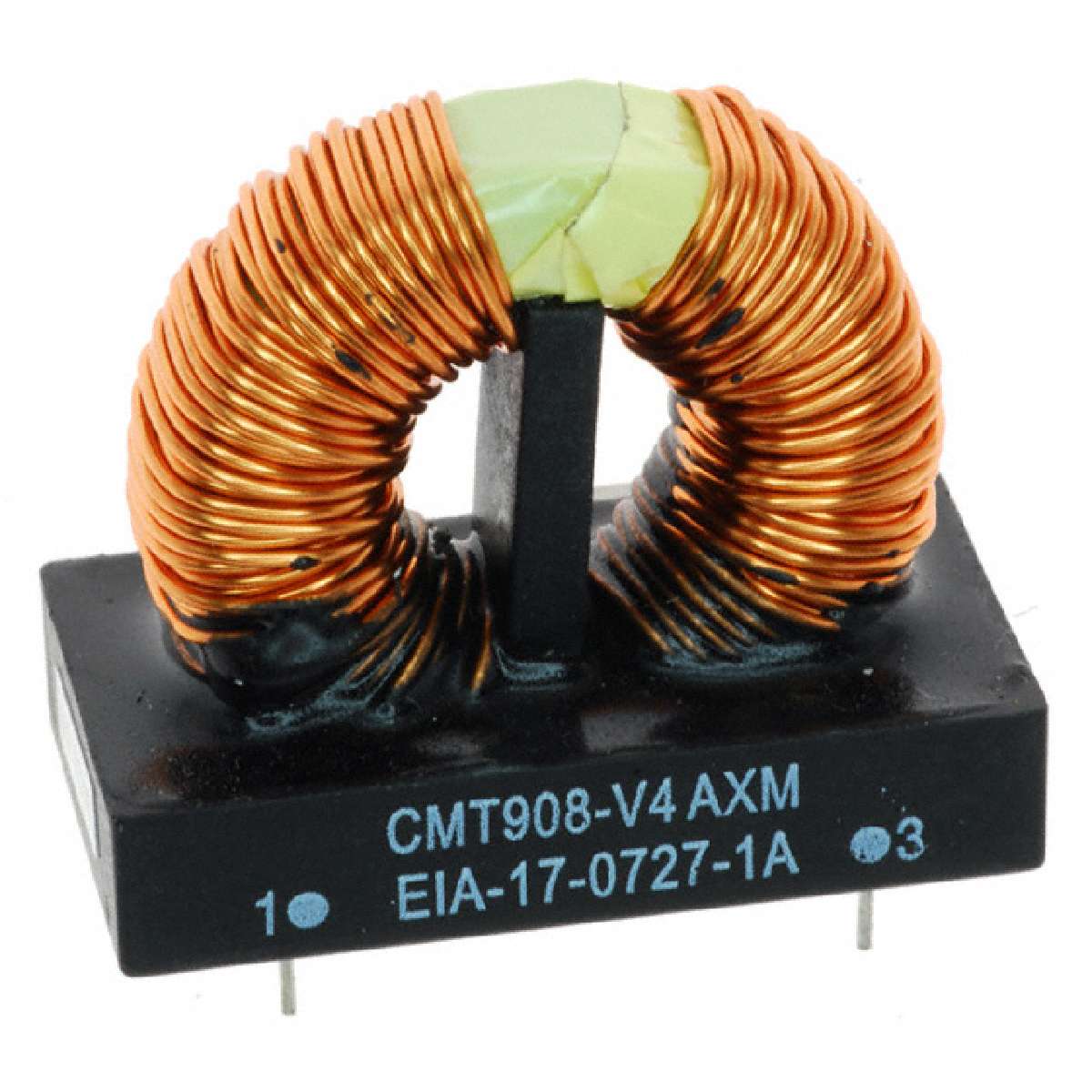

CMT Series 16 mH 2.6A 0.16 Ohm DCR Through Hole Vertical Common Mode Inductor
|
||
| 标准包装：126 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Vertical, 4 PC Pin |
|---|---|
| Number of Lines | 2 |
| Part Status | Active |
| Category | Filters |
| Series | CMT |
| Height (Max) | 1.500" (38.10mm) |
| Filter Type | Power Line |
| ECCN | EAR99 |
| Current Rating (Max) | 2.6A |
| Size / Dimension | 1.450" L x 0.800" W (36.83mm x 20.32mm) |
| DC Resistance (DCR) (Max) | 160 mOhm |
| Manufacturer | Triad Magnetics |
| Family | Common Mode Chokes |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| 数据手册： |
|---|
