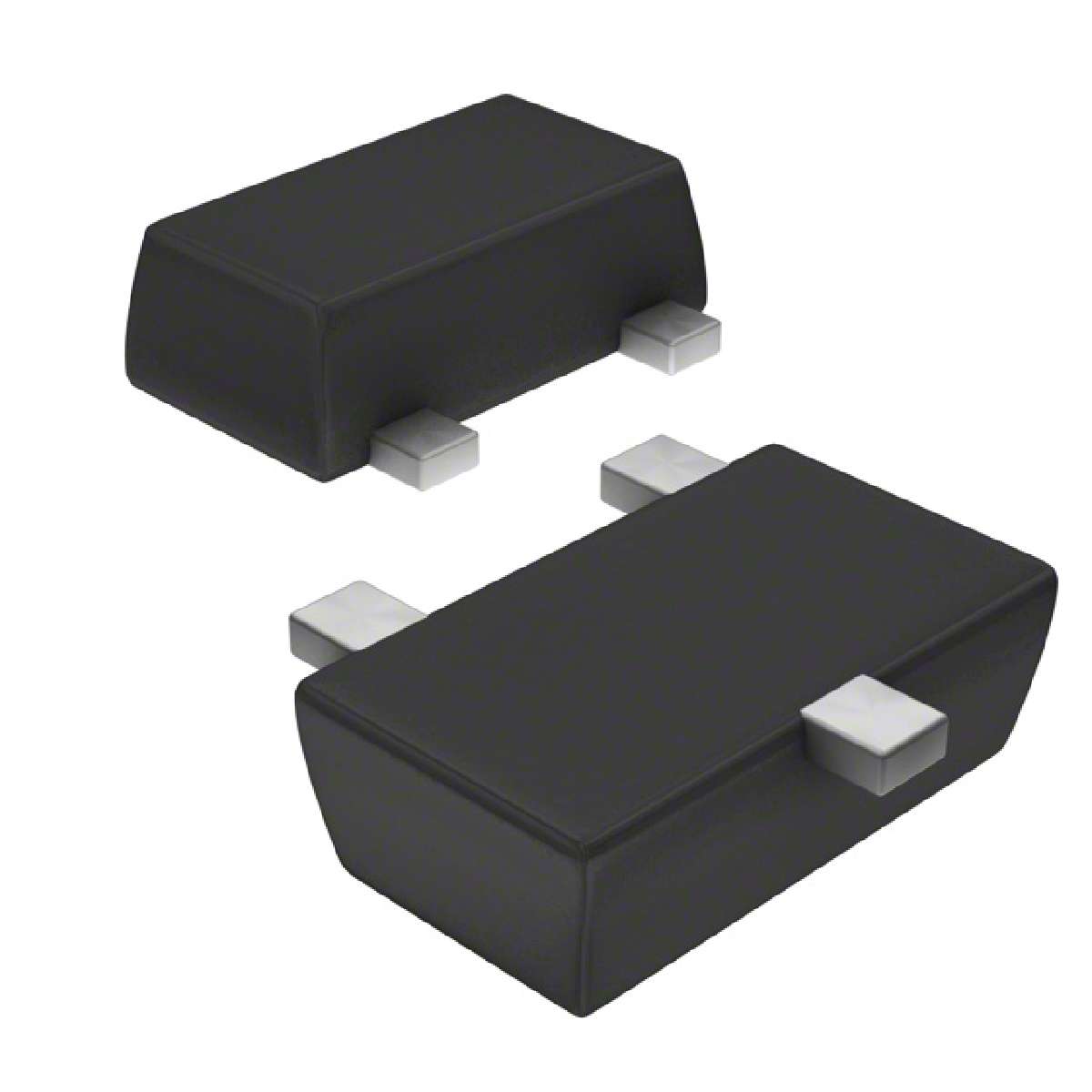

CMPSH1-4 TR

ACTIVE SOT-23F ECL99
Product description : CMPSH Series Single 40 V 1 A SMT Schottky Barrier Rectifier - SOT-23F
SPQ：3000
Datasheet : CMPSH1-4 TR.pdf

Operating Temperature - Junction	-65°C ~ 150°C
Capacitance @ Vr, F	25pF @ 25V, 1MHz
Supplier Device Package	SOT-23F
Diode Type	Schottky
Category	Discrete Semiconductor Products
Reverse Recovery Time (trr)	12ns
Family	Diodes - Rectifiers - Single
Voltage - DC Reverse (Vr) (Max)	40V
Packaging	Cut Tape (CT)
Current - Average Rectified (Io)	1.75A
Package / Case	SOT-23-3 Flat Leads
Part Status	Active
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Manufacturer	Central Semiconductor Corp
Current - Reverse Leakage @ Vr	100µA @ 30V
Mounting Type	Surface Mount
Voltage - Forward (Vf) (Max) @ If	620mV @ 1.5A
ECCN	ECL99

Datasheet： CMPSH1-4 TR.pdf
