| CMA30E1600PN | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

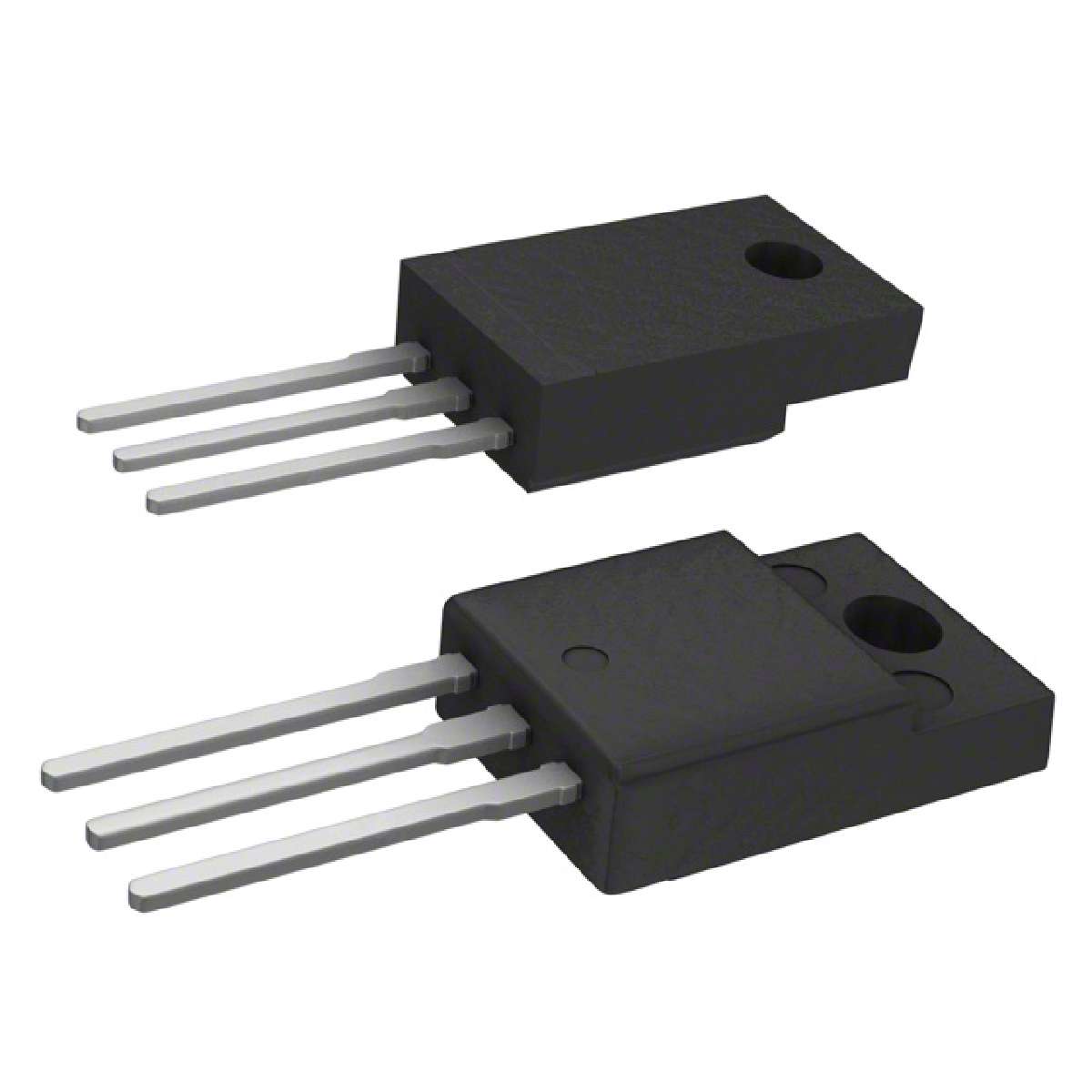

1600V,50A Thyristor, TO-220ABFP (3)
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Holding Current Ih Max: | 60 mA |
|---|---|
| Packaging: | Tube |
| Breakover Current IBO Max: | 280 A |
| Maximum Gate Peak Inverse Voltage: | 10 V |
| Package / Case: | TO-220 |
| Mounting Style: | Through Hole |
| Vf - Forward Voltage: | 1.7 V |
| Length: | 10.36 mm (Max) |
| Series: | CMA30E1600 |
| Non Repetitive On-State Current: | 280 A |
| Off-State Leakage Current @ VDRM IDRM: | 0.01 mA |
| Product Category: | SCRs |
| Type: | SCRs |
| ECCN | EAR99 |
| Width: | 4.9 mm (Max) |
| Gate Trigger Voltage - Vgt: | 1.3 V |
| Minimum Operating Temperature: | - 40 C |
| Gate Trigger Current - Igt: | 28 mA |
| Height: | 9.19 mm (Max) |
| Unit Weight: | 0.081130 oz |
| Rated Repetitive Off-State Voltage VDRM: | 1600 V |
| Manufacturer: | IXYS |
| Factory Pack Quantity: | 50 |
| Brand: | IXYS |
| RoHS: | Details |
| Current Rating: | 30 A |
| Maximum Operating Temperature: | + 150 C |
