| CKL12BTW01-019 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

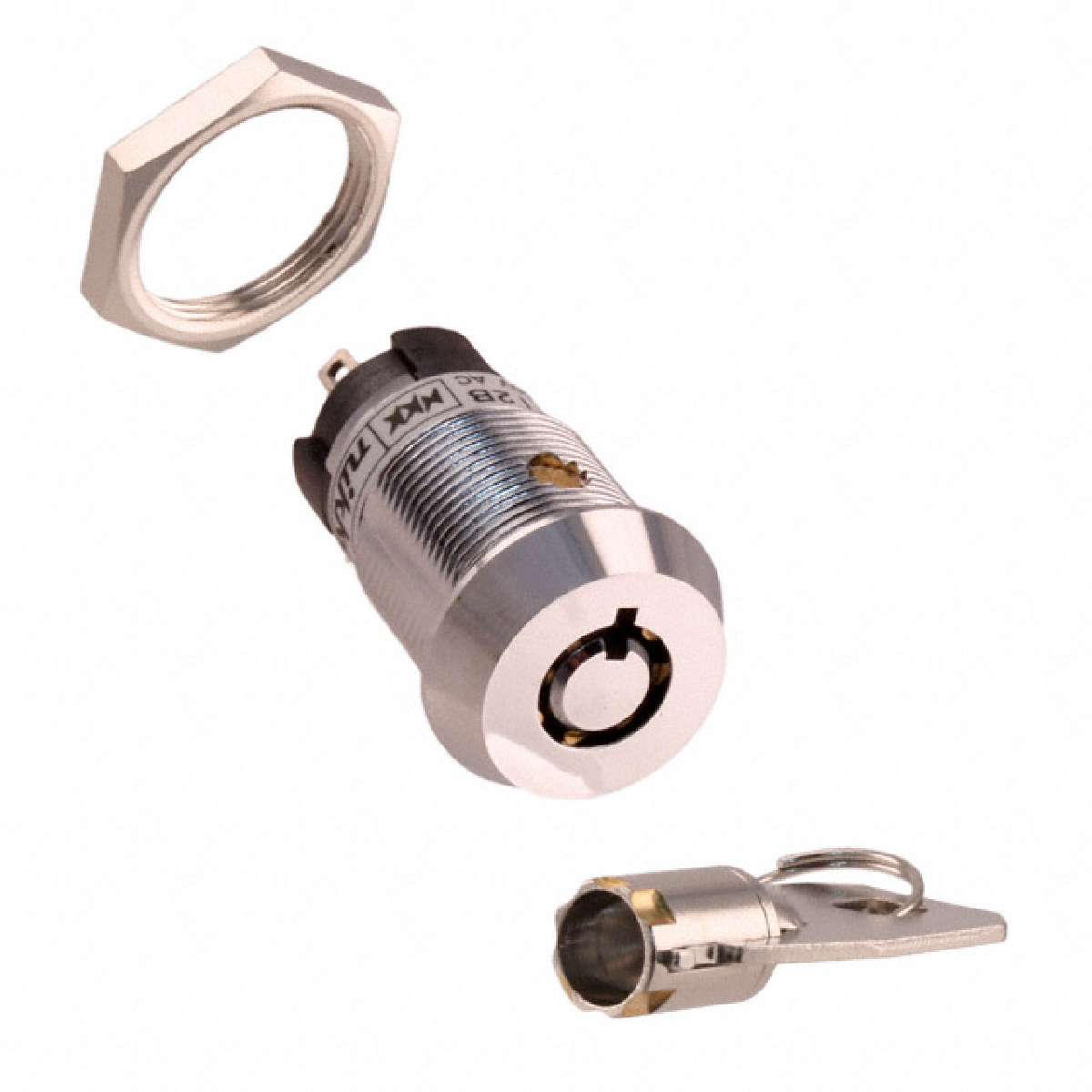

High Security Keylock Switches
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Depth Behind Flange | 34.60mm |
|---|---|
| Actuator Type | Tubular Key |
| Contact Finish | Silver |
| Key Removable Positions | 1 only |
| Termination Style | Solder Lug |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Contact Material | Silver (Ag) |
| Number of Positions | 2 |
| Family | Keylock Switches |
| Mounting Type | Panel Mount |
| Contact Timing | Non-Shorting (BBM) |
| ECCN | EAR99 |
| Circuit | SPDT |
| Switch Function | On-On |
| Angle of Throw | 90° |
| Voltage Rating - AC | 250V |
| Features | Epoxy Sealed Terminals |
| Electrical Life | 10,000 Cycles |
| Category | Switches |
| Series | CK |
| Mechanical Life | 30,000 Cycles |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Operating Temperature | -25°C ~ 70°C |
| Current Rating | 3A (AC) |
