| CCL-LX45IT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

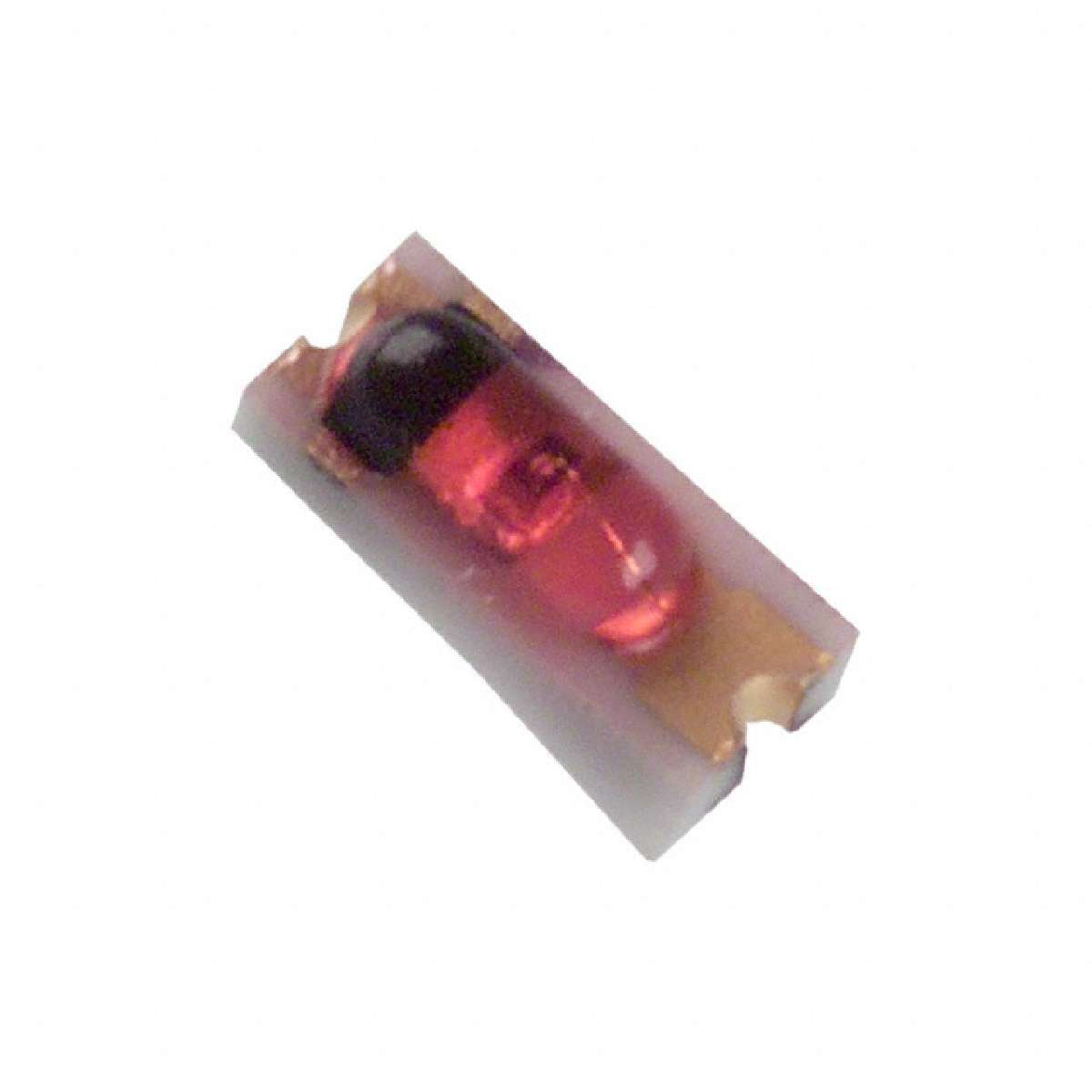

Red 3.2 x 1.27 mm 180° Transparent 7.2 mcd 2.1 V Ceramic Surface Mount LED
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Transparent |
|---|---|
| Packaging: | Reel |
| Manufacturer: | Lumex |
| Minimum Operating Temperature: | - 30 C |
| Brand: | Lumex |
| RoHS: | Details |
| LED Size: | 3.2 mm x 1.27 mm |
| Illumination Color: | Red |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 2.1 V |
| ECCN | EAR99 |
| Viewing Angle: | 180 deg |
| If - Forward Current: | 20 mA |
| Luminous Intensity: | 7.2 mcd |
| Factory Pack Quantity: | 3000 |
| Wavelength/Color Temperature: | 635 nm |
| Package / Case: | 1205 |
| Product Category: | Standard LEDs - SMD |
| Lens Shape: | Dome |
| Wavelength: | 635 nm |
| Maximum Operating Temperature: | + 80 C |
