NCP5369MNR2G specifications -Ameya360 electronic components purchase network


NCP5369MNR2G

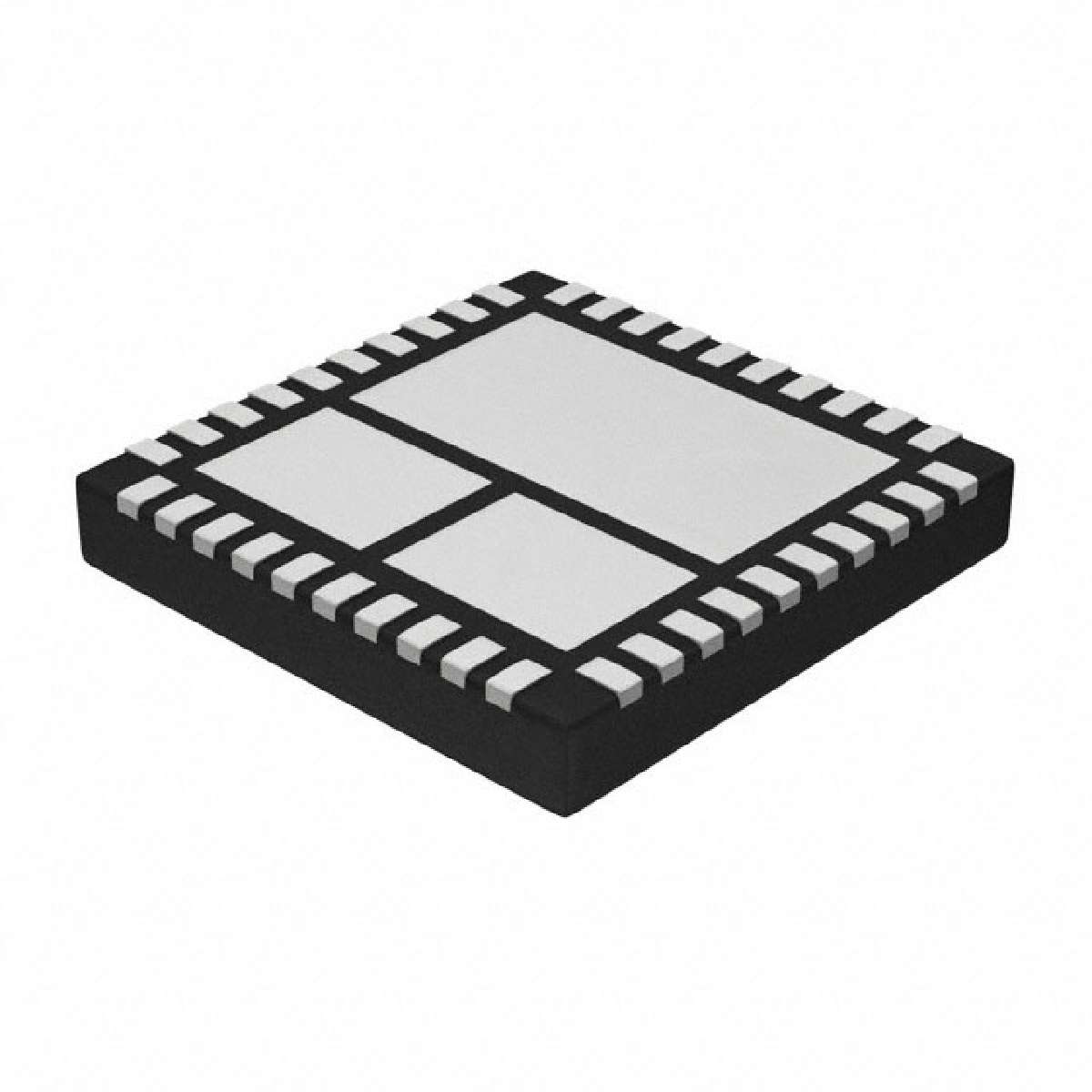

ACTIVE 40-QFN (6x6)
Product description : NCP5369 Series 4.5 - 20 V 35 A 1 MHz 35 A Integrated Driver w/ MOSFET - QFN-40
SPQ：1
Datasheet : NCP5369MNR2G.pdf

Voltage - Supply	4.5 V ~ 25 V
Number of Outputs	1
PCN Assembly/Origin	Assembly/Test Site Update 21/Aug/2014 Assembly/Test Site Revision 09/Dec/2014
Supplier Device Package	40-QFN (6x6)
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
RoHS	Lead free / RoHS Compliant
Current - Peak Output	35A
Package / Case	40-VFQFN Exposed Pad
Type	Half Bridge
Family	PMIC - MOSFET, Bridge Drivers - Internal Switch
Operating Temperature	-10°C ~ 100°C
Input Type	PWM

Datasheet： NCP5369MNR2G.pdf
