| CB315FP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

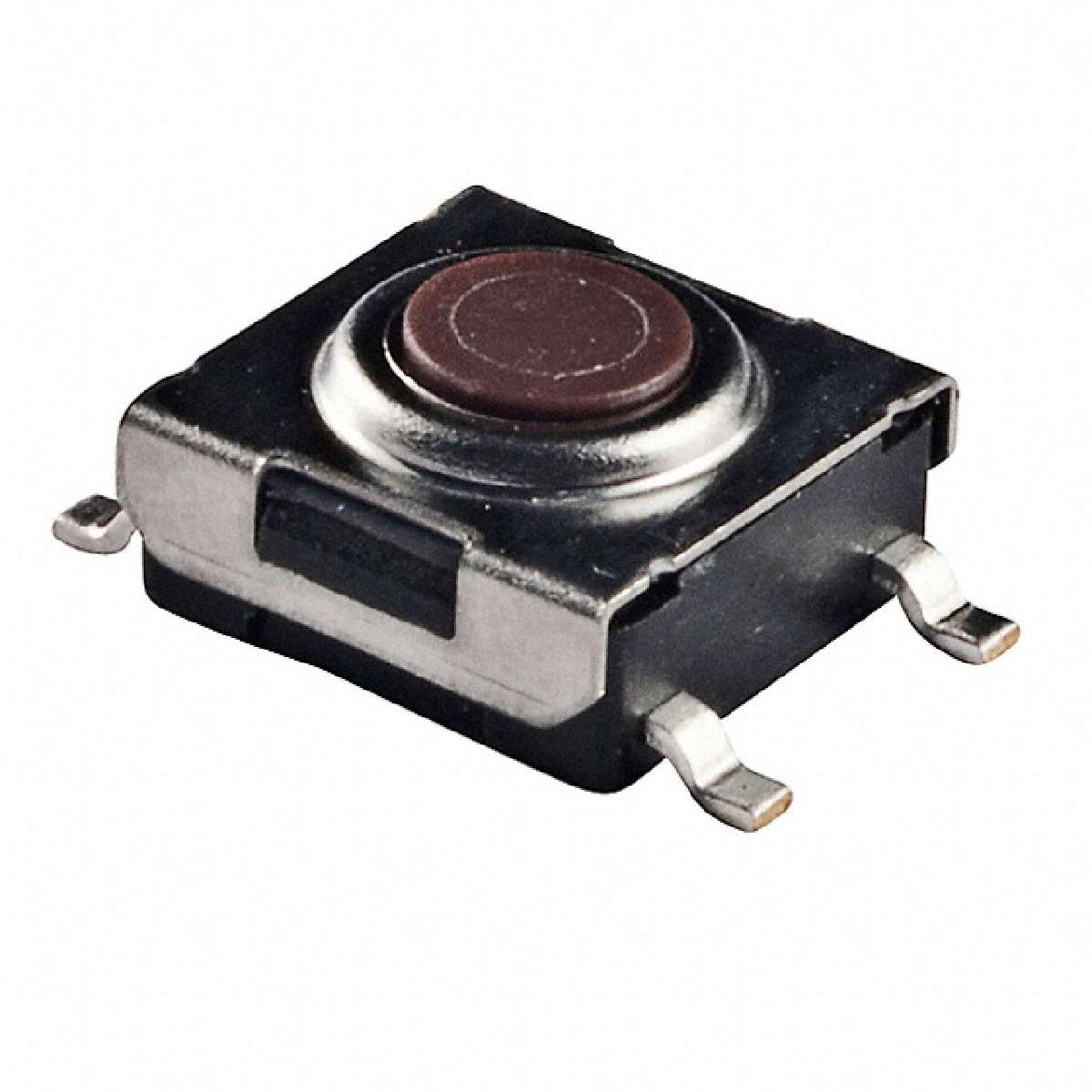

Microswitch TACT; SPST; Pos: 2; 0.05A/24VDC; 1.57N; 6.2x6.2x3.1mm
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPST-NO |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Termination Style | Gull Wing |
| Part Status | Active |
| Category | Switches |
| Switch Travel | 0.25mm |
| Operating Force | 157gf |
| Family | Tactile Switches |
| Mounting Type | Surface Mount |
| Packaging | Tray |
| ECCN | EAR99 |
| Actuator Type | Standard |
| Actuator Orientation | Top Actuated |
| Actuator Height off PCB, from Pins | 3.10mm |
| Features | Sealed - Fully |
| Manufacturer | NKK Switches |
| Illumination | Non-Illuminated |
| Series | CB3 |
| Mechanical Life | 100,000 Cycles |
| Outline | 6.20mm x 6.20mm |
| Operating Temperature | -25°C ~ 70°C |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
