| IPA041N04NGXKSA1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

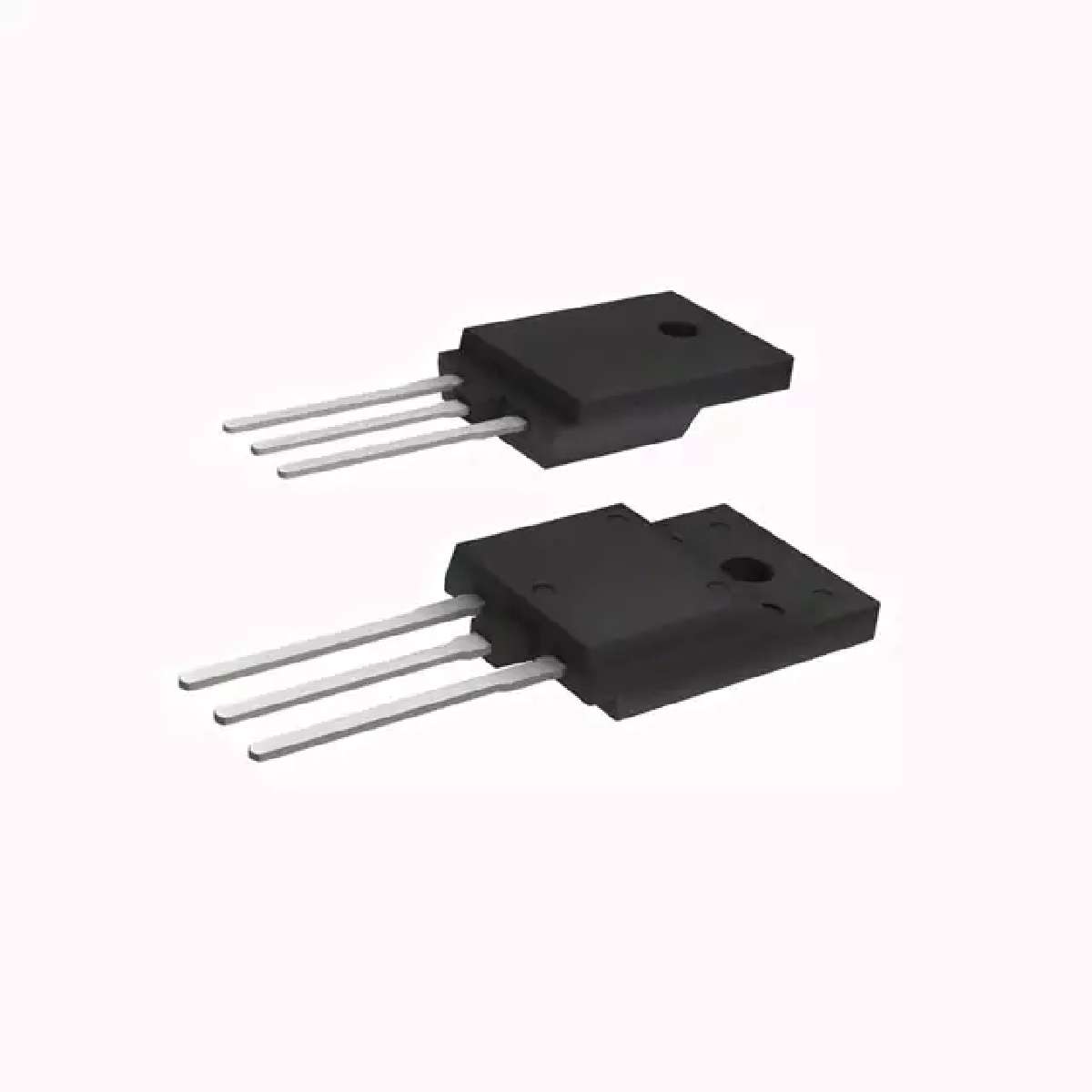

Transistor: N-MOSFET; unipolar; 40V; 70A; 35W; TO220FP
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Standard |
|---|---|
| Package / Case | TO-220-3 Full Pack |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 70A (Tc) |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Vgs(th) (Max) @ Id | 4V @ 45µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Packaging | Tube |
| Rds On (Max) @ Id, Vgs | 4.1 mOhm @ 70A, 10V |
| Power - Max | 35W |
| Supplier Device Package | PG-TO220-FP |
| Gate Charge (Qg) @ Vgs | 56nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Through Hole |
| Input Capacitance (Ciss) @ Vds | 4500pF @ 20V |
| ECCN | EAR99 |
