DSM7UA56105 | ||
---|---|---|
|
||
|
||
产品描述:

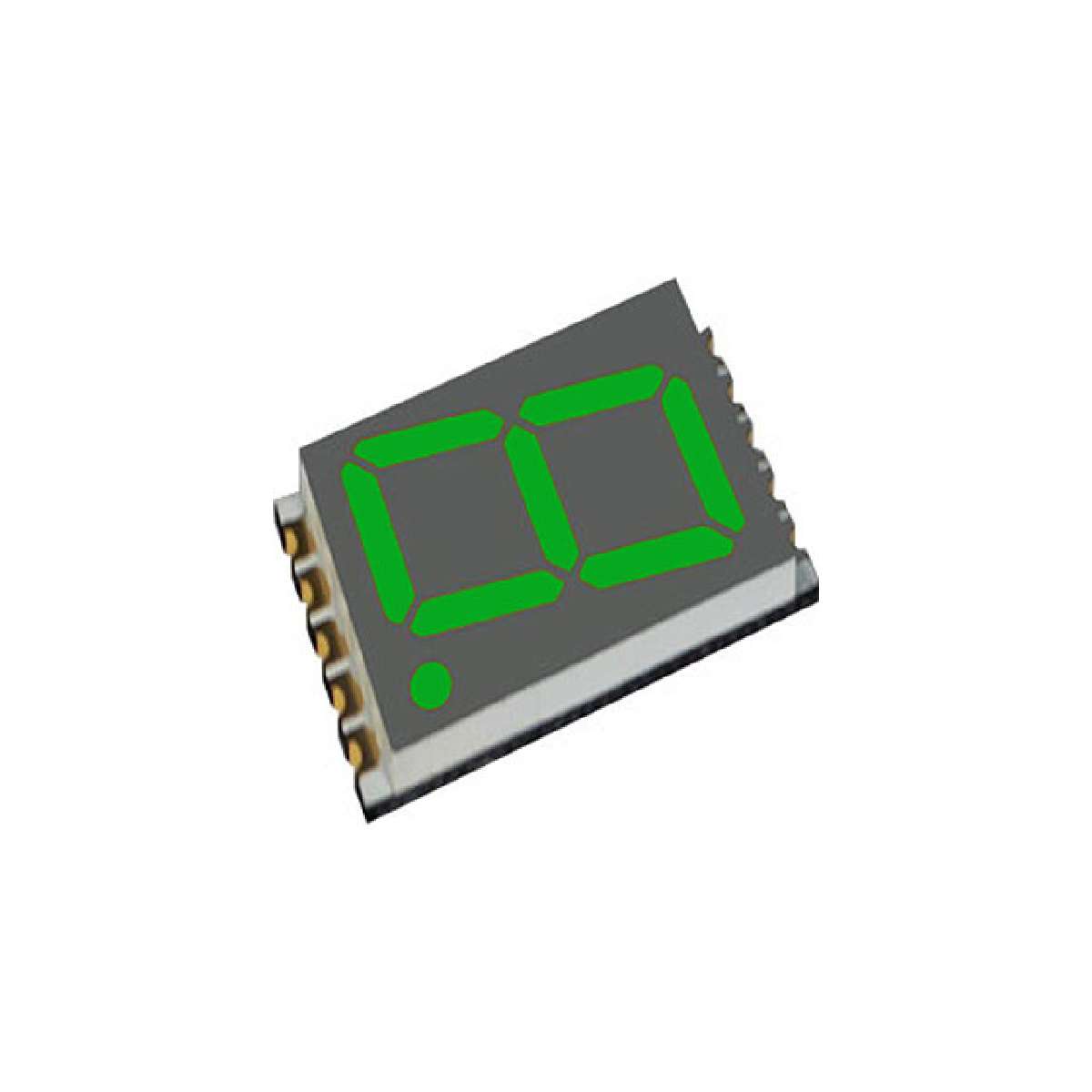

Single Digit 7 Segment Common Anode 0.56 Green Ultra Thin Display
|
||
标准包装:100 | ||
数据手册: -- |
Thickness: | 2.1 mm |
---|---|
Display Type: | 7 Segment |
Width: | 12.5 mm |
Luminous Intensity: | 250 mcd |
Operating Temperature Range: | - 40 C to + 105 C |
Configuration: | Common Anode |
Vf - Forward Voltage: | 2.8 V |
If - Forward Current: | 20 mA |
Series: | DSM7 |
Brand: | VCC |
Power Consumption: | 120 mW |
Number of Digits: | 1 |
Type: | Ultra Thin Surface Mount LED Display |
Maximum Operating Temperature: | + 105 C |
Product: | LED Display |
Character Size: | 0.56 in |
Packaging: | Bulk |
Minimum Operating Temperature: | - 40 C |
Illumination Color: | Green |
Mounting Style: | SMD/SMT |
Length: | 20 mm |
Manufacturer: | VCC |
Factory Pack Quantity: | 100 |
RoHS: | Details |
Product Category: | LED Displays & Accessories |
Module Size - W x H x T: | 12.5 mm x 20 mm x 2.1 mm |
Wavelength: | 530 nm |
ECCN | EAR99 |
