| CDM2205-800FP SL | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

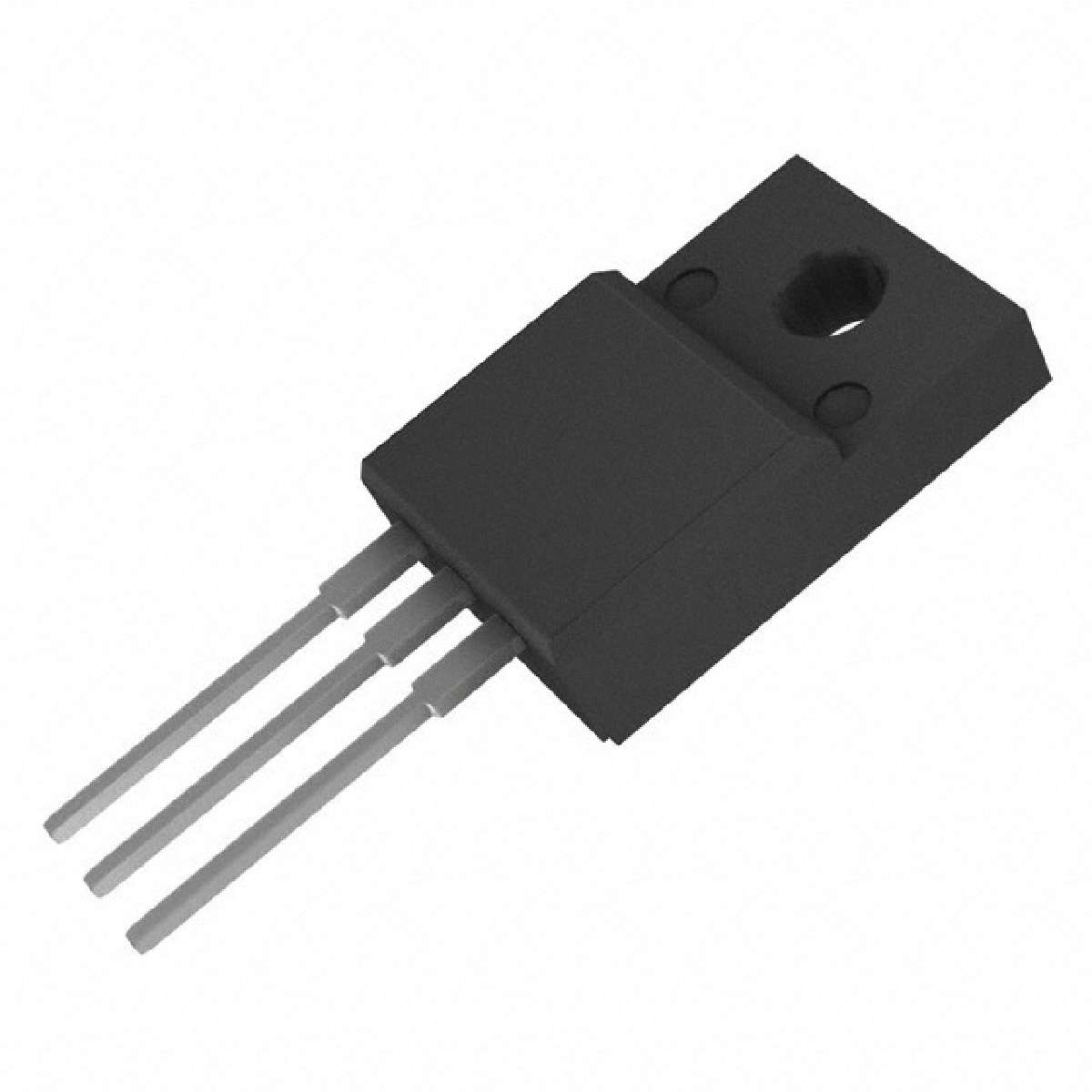

CDM2205 Series 800 V 2.7 Ohm 5 A Flange Mount N-Channel Power Mosfet - TO-220FP
|
||
| 标准包装：50 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Standard |
|---|---|
| Package / Case | TO-220-3 Full Pack |
| Drain to Source Voltage (Vdss) | 800V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Part Status | Active |
| Manufacturer | Central Semiconductor Corp |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Through Hole |
| Input Capacitance (Ciss) @ Vds | 705pF @ 25V |
| ECCN | EAR99 |
| Rds On (Max) @ Id, Vgs | 2.7 Ohm @ 2.5A, 10V |
| Power - Max | 48W |
| Supplier Device Package | TO-220FP |
| Gate Charge (Qg) @ Vgs | 17.4nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Tube |
