| NSV60101DMTWTBG | ||
|---|---|---|
|
|
||
|
||
| Product description : NSS60101 Series 60 V 1 A 2.27 W SMT Low VCE(sat) NPN Transistor - WDFN-6 | ||
| SPQ：3000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Vce Saturation (Max) @ Ib, Ic | 180mV @ 100mA, 1A |
|---|---|

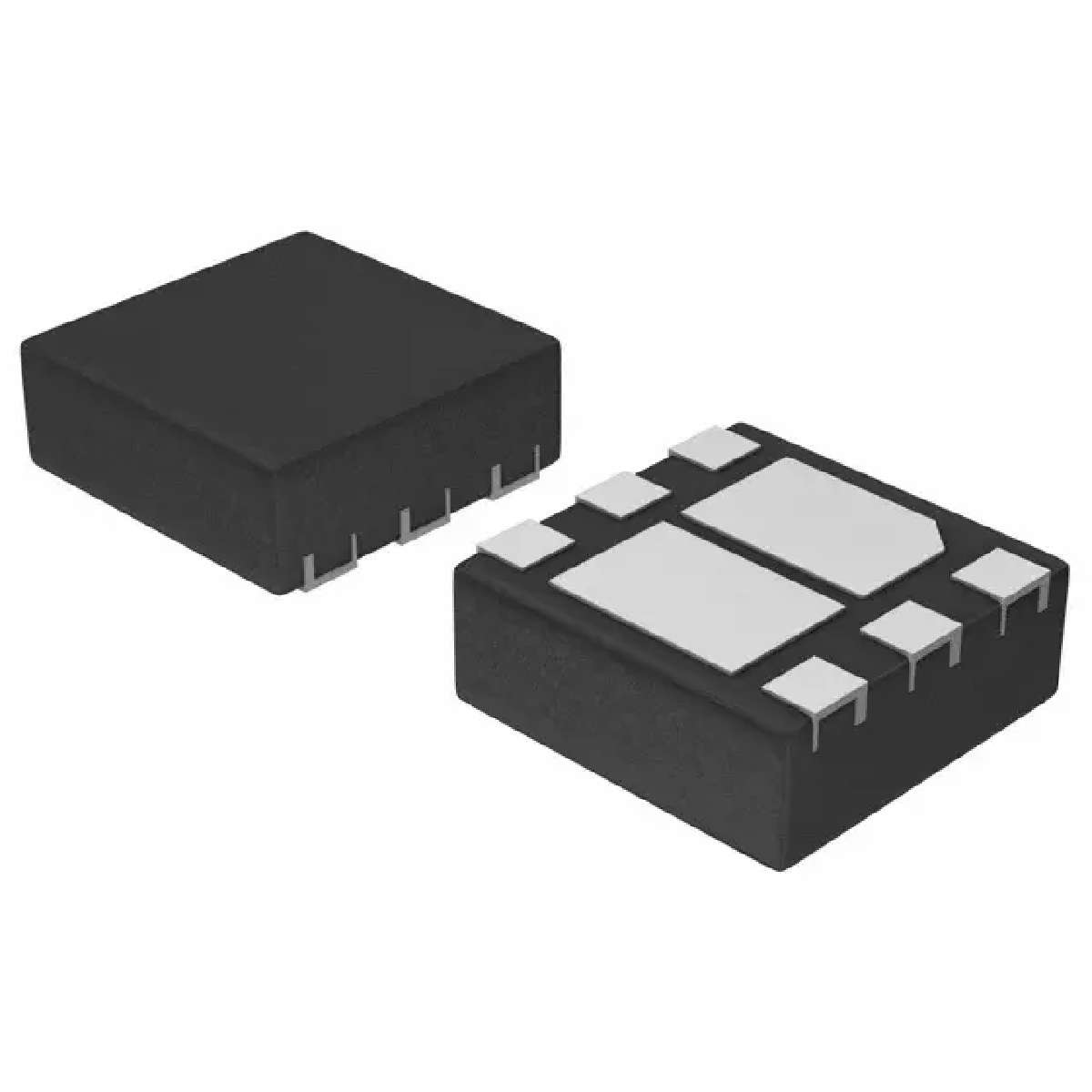

| Package / Case | 6-WDFN Exposed Pad |
| Transistor Type | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 1A |
| Category | Discrete Semiconductor Products |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Tape & Reel (TR) |
| Frequency - Transition | 180MHz |
| Power - Max | 2.27W |
| Supplier Device Package | 6-WDFN (2x2) |
| Part Status | Active |
| Manufacturer | ON Semiconductor |
| Family | Transistors - Bipolar (BJT) - Arrays |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 500mA, 2V |
| ECCN | EAR99 |
