| BXRC-35G2000-C-23 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

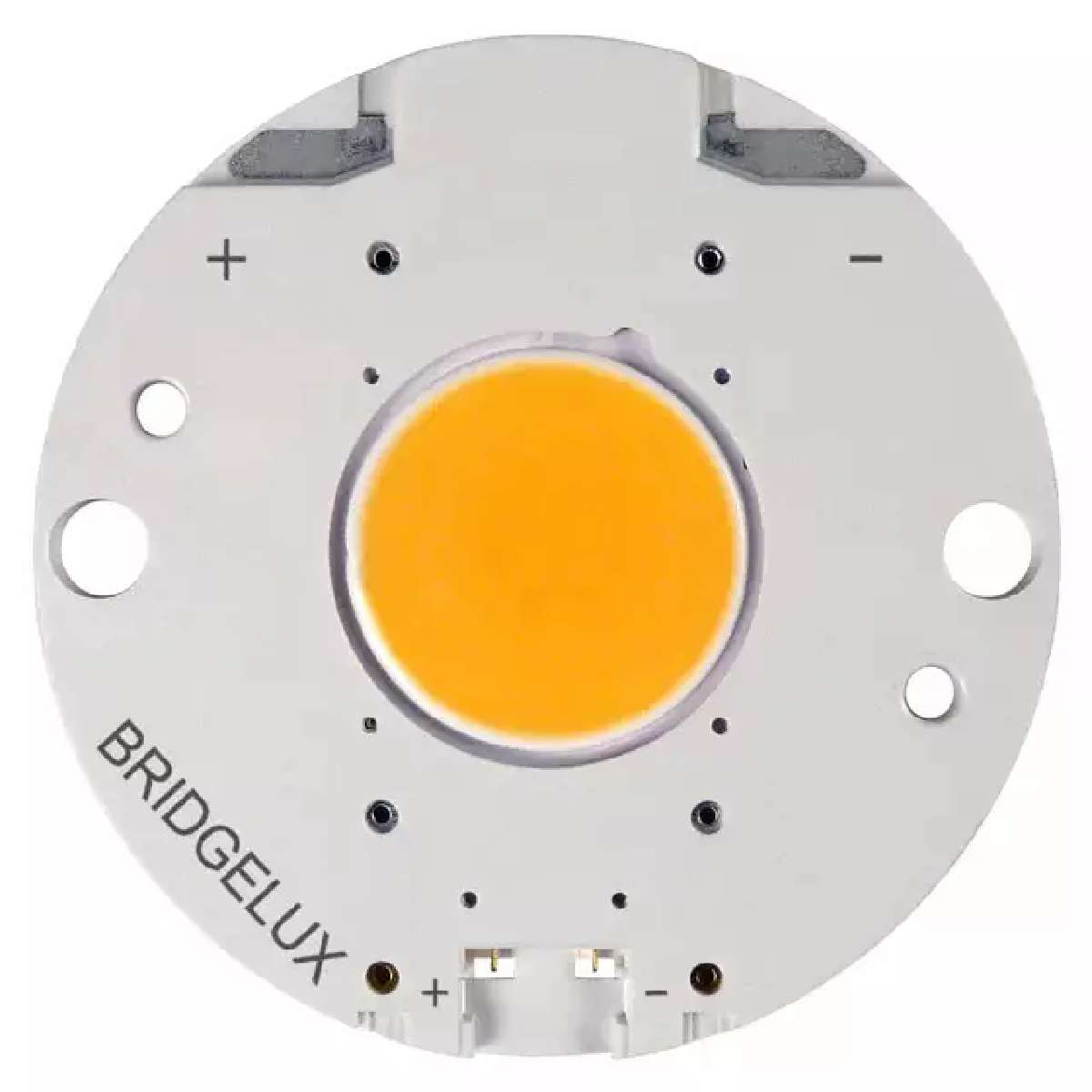

VERO 13 LES (Light Emitting Surface) CoB Array 3500K 90 CRI min 1868 lm 3 SDCM
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 90 |
|---|---|
| Viewing Angle | 120° |
| Height | 1.90mm |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Features | With Connector |
| Part Status | Active |
| Temperature - Test | 85°C |
| Category | Optoelectronics |
| Current - Test | 500mA |
| Current - Max | 1.05A |
| Flux @ Current/Temperature - Test | 1627 lm (Typ) |
| Packaging | Tray |
| Lens Type | Flat |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Color | White, Warm |
| Size / Dimension | 36.20mm Diameter |
| Light Emitting Surface (LES) | 13.20mm Diameter |
| Manufacturer | Bridgelux |
| Voltage - Forward (Vf) (Typ) | 31.3V |
| Series | Vero® 13 Array |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 104 lm/W |
| ECCN | EAR99 |
