TL6215VF200RBT
TL6215VF200RBT
  • ACTIVE
  • EAR99

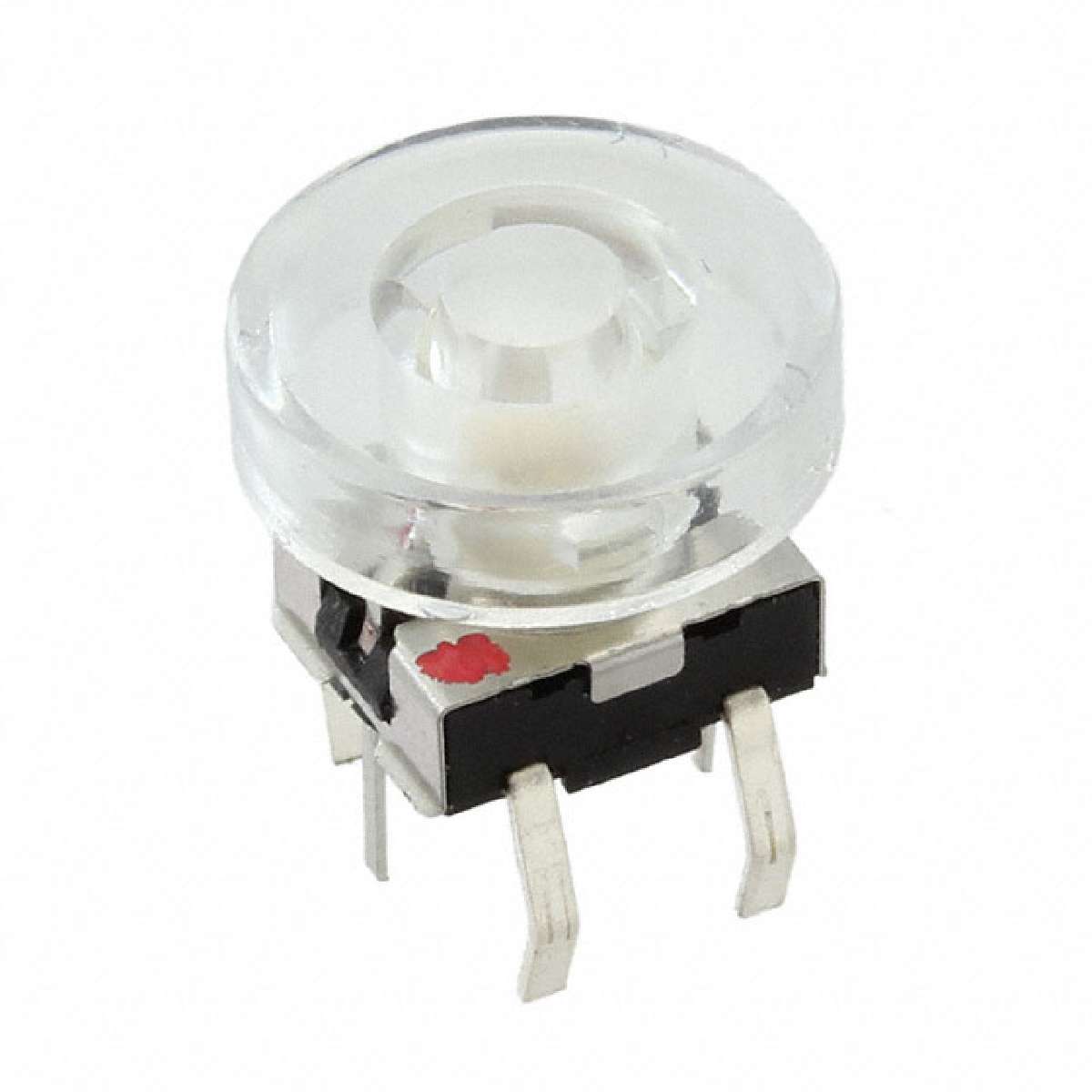

Product description : TL6215 Series 7.7 x 6.37 mm SPST IP67 Top Actuated Red B-Cap LED Tactile
SPQ:100
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Illumination Voltage (Nominal) 1.95 VDC
Actuator Type Round Button
Actuator Orientation Top Actuated
Actuator Height off PCB, from Pins 8.80mm
Termination Style PC Pin
Illumination Type, Color LED, Red
Category Switches
Switch Travel 0.45mm
Operating Force 200gf
Family Tactile Switches
Mounting Type Through Hole
Packaging Tray
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Ingress Protection IP67 - Dust Tight, Waterproof
Part Status Active
Manufacturer E-Switch
Illumination Illuminated
Series TL6215
Mechanical Life 500,000 Cycles
Outline 7.70mm x 6.37mm
Operating Temperature -20°C ~ 70°C
ECCN EAR99
