| TL6215VF200BNN | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

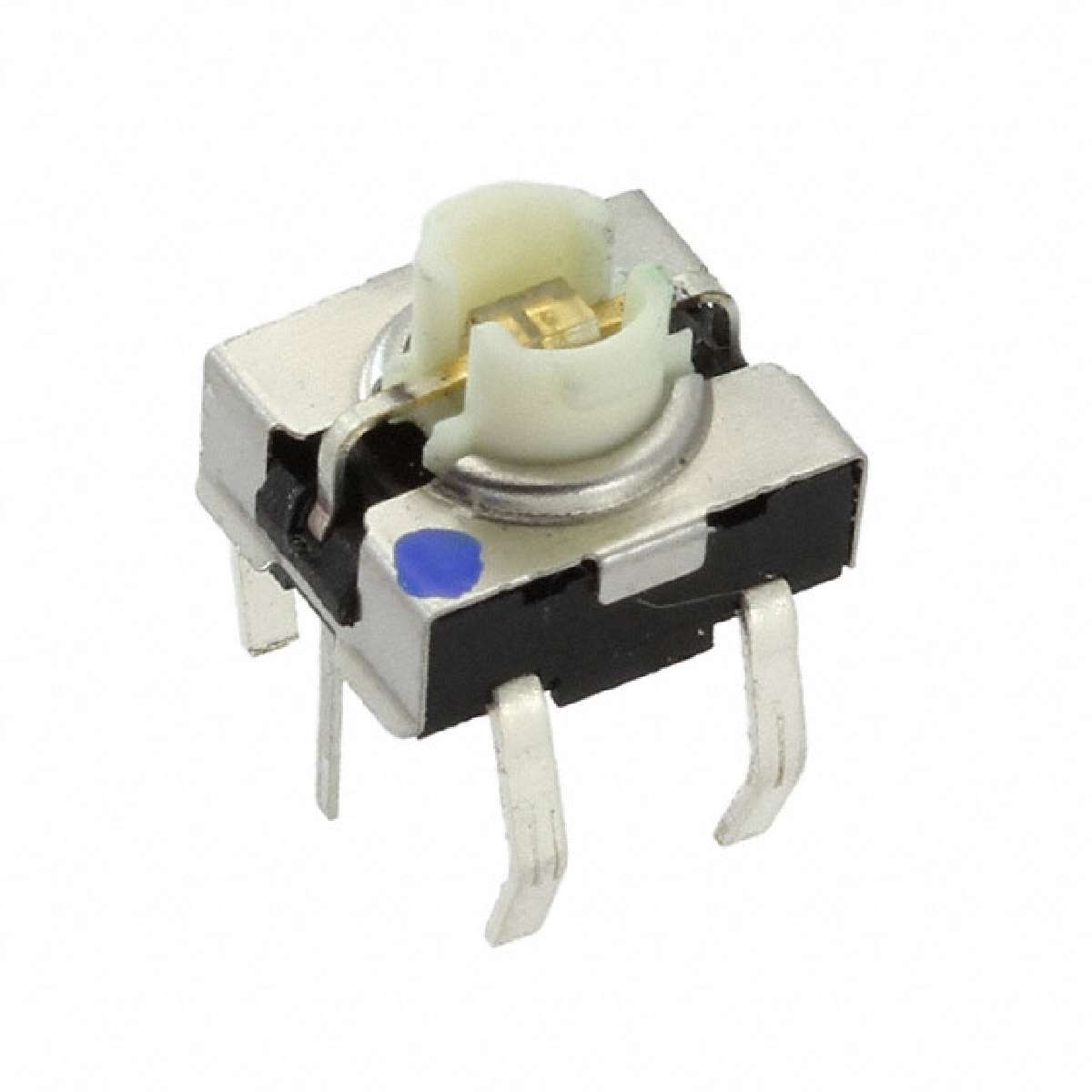

TL6215 Series 7.7 x 6.37 mm SPST IP67 Top Actuated Blue LED Tactile
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Color: | Blue |
|---|---|
| Operating Force: | 200 gf |
| Travel: | 0.45 mm |
| Manufacturer: | E-Switch |
| Operating Temperature Range: | - 20 C to + 70 C |
| Contact Form: | SPST |
| Brand: | E-Switch |
| Termination Style: | Solder Pin |
| Current Rating: | 50 mA |
| Ground Terminal: | No |
| ECCN | EAR99 |
| Mounting Direction: | Straight |
| Switch Function: | OFF - (ON) |
| Actuator: | Plunger |
| Series: | TL6215 |
| Voltage Rating DC: | 12 VDC |
| Factory Pack Quantity: | 100 |
| RoHS: | Details |
| Product Category: | Illuminated Tactile Switches |
| Illumination: | LED |
| Mounting Style: | Through Hole |
