ROE-0512S | ||
---|---|---|
|
||
|
||
产品描述:

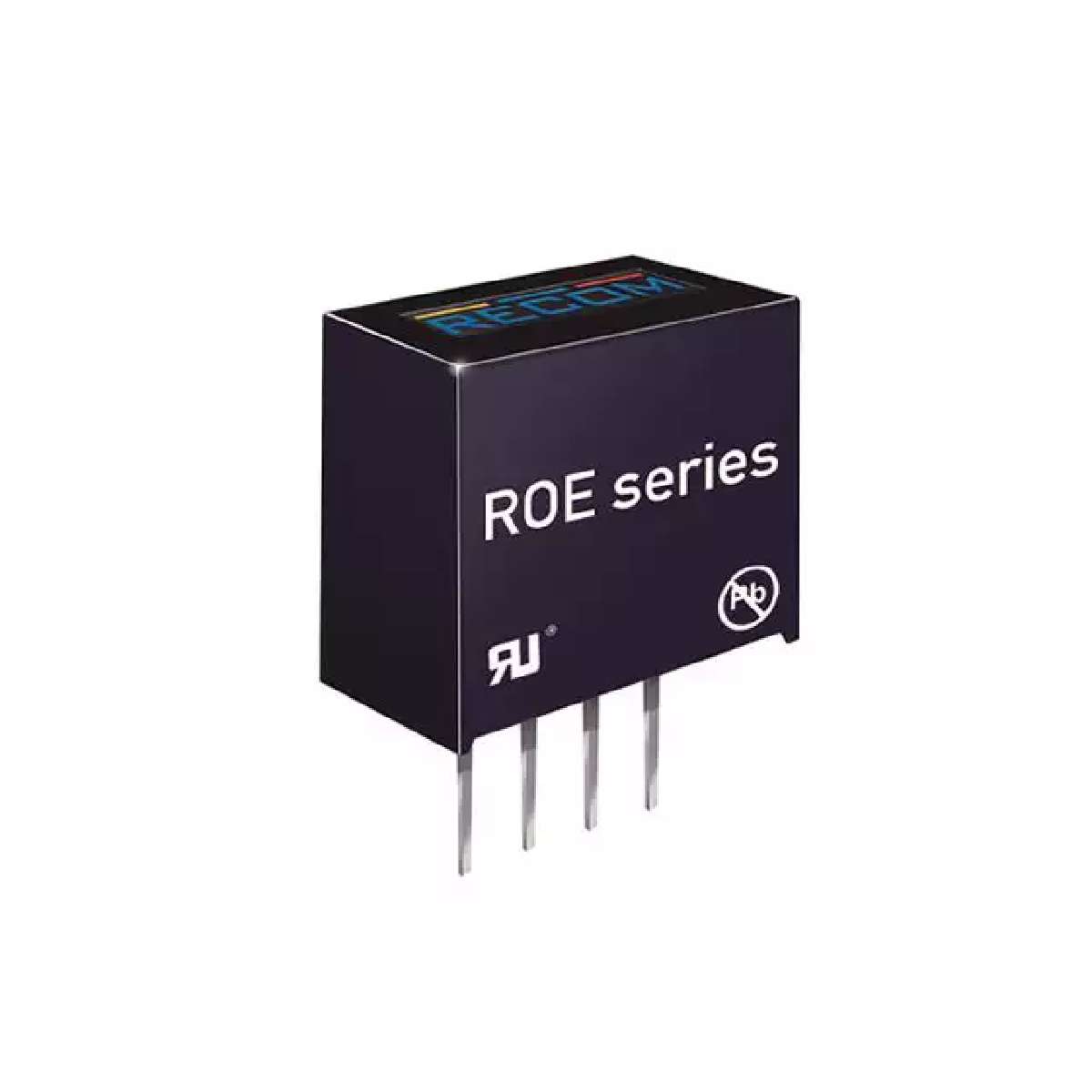

ROE Series 1 W 5 V Input Single Output 12 V Isolated DC/DC-Converter - SIP-4
|
||
标准包装:1 | ||
数据手册: -- |
Voltage - Isolation | 1kV (1000V) |
---|---|
Package / Case | 4-SIP Module |
Current - Output (Max) | 84mA |
Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) |
Category | Power Supplies - Board Mount |
Manufacturer | Recom Power |
Voltage - Output 1 | 12V |
Family | DC DC Converters |
Applications | ITE (Commercial) |
Operating Temperature | -40°C ~ 85°C |
Packaging | Tube |
Number of Outputs | 1 |
Type | Isolated Module |
Power (Watts) - Manufacture Series | 1W |
Part Status | Active |
Efficiency | 80% |
Voltage - Input (Max) | 5.5V |
Series | ECONOLINE ROE (E-Series) |
Voltage - Input (Min) | 4.5V |
Mounting Type | Through Hole |
Power (Watts) - Max | 1W |
ECCN | EAR99 |
