| R200A4-051-D0550 | ||
|---|---|---|
|
|
||
|
||

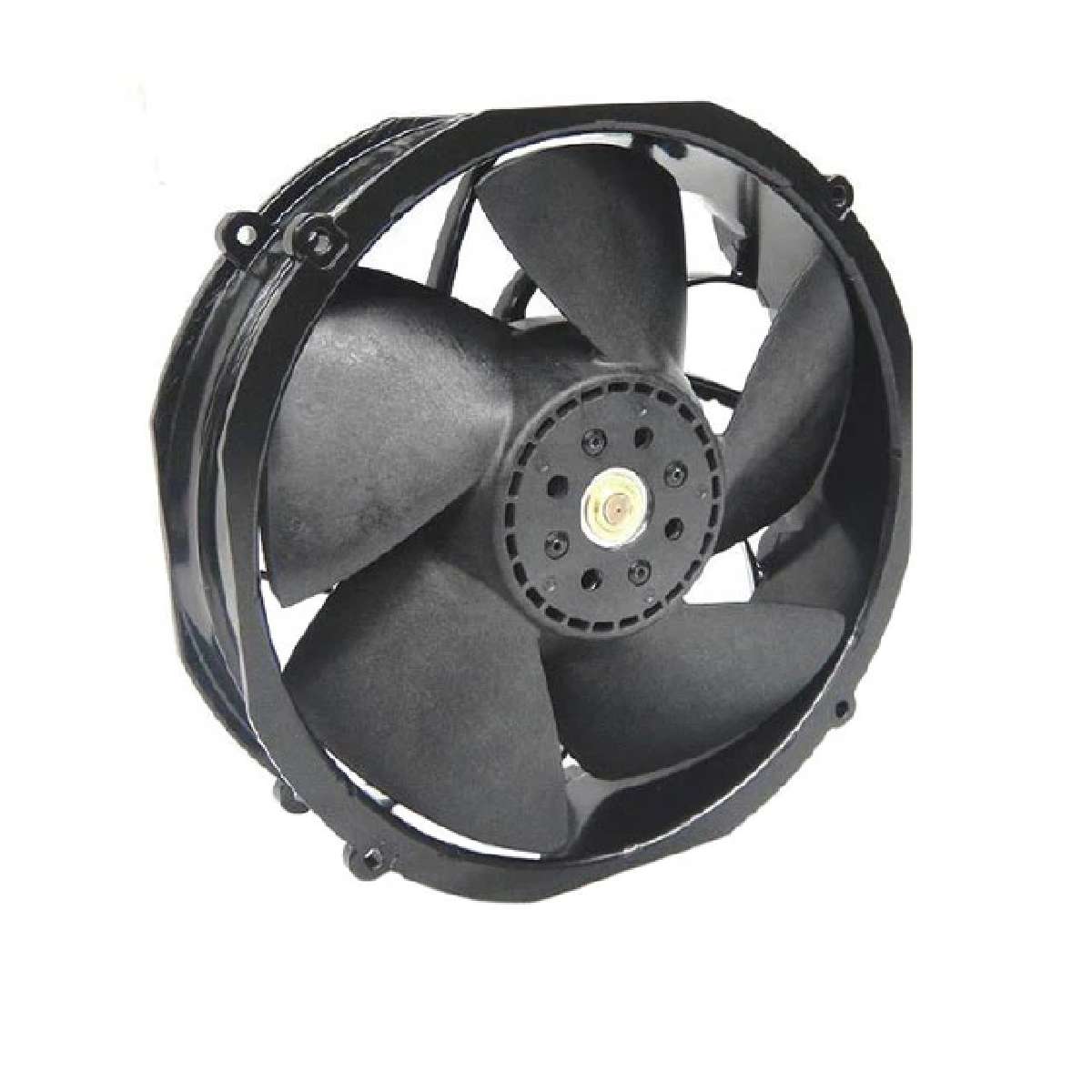

| Product description : R200 Series Ø200 x51mm 24 V 5000 RPM 590 CFM 67 dB 4 Wire Ball Bearing Axial Fan | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 4 Wire Leads |
|---|---|
| Material - Blade | Plastic |
| Voltage Range | 18 ~ 30VDC |
| Part Status | Active |
| Manufacturer | NMB Technologies Corporation |
| Air Flow | 590.0 CFM (16.71m³/min) |
| Voltage - Rated | 24VDC |
| Noise | 67 dB |
| Family | DC Fans |
| Width | 51mm |
| Bearing Type | Ball |
| Current Rating | 2.8A |
| Static Pressure | 3.320 in H2O (828.0 Pa) |
| Features | PWM Control; Speed Sensor (Tach) |
| Size / Dimension | Round - 208mm Dia |
| Category | Fans, Thermal Management |
| Material - Frame | Aluminum |
| Weight | 2.6 lbs (1.2kg) |
| Series | R200 |
| Power (Watts) | 67W |
| RPM | 5000 RPM |
| Operating Temperature | -22 ~ 158°F (-30 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
