| OD7025-12HHB10A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

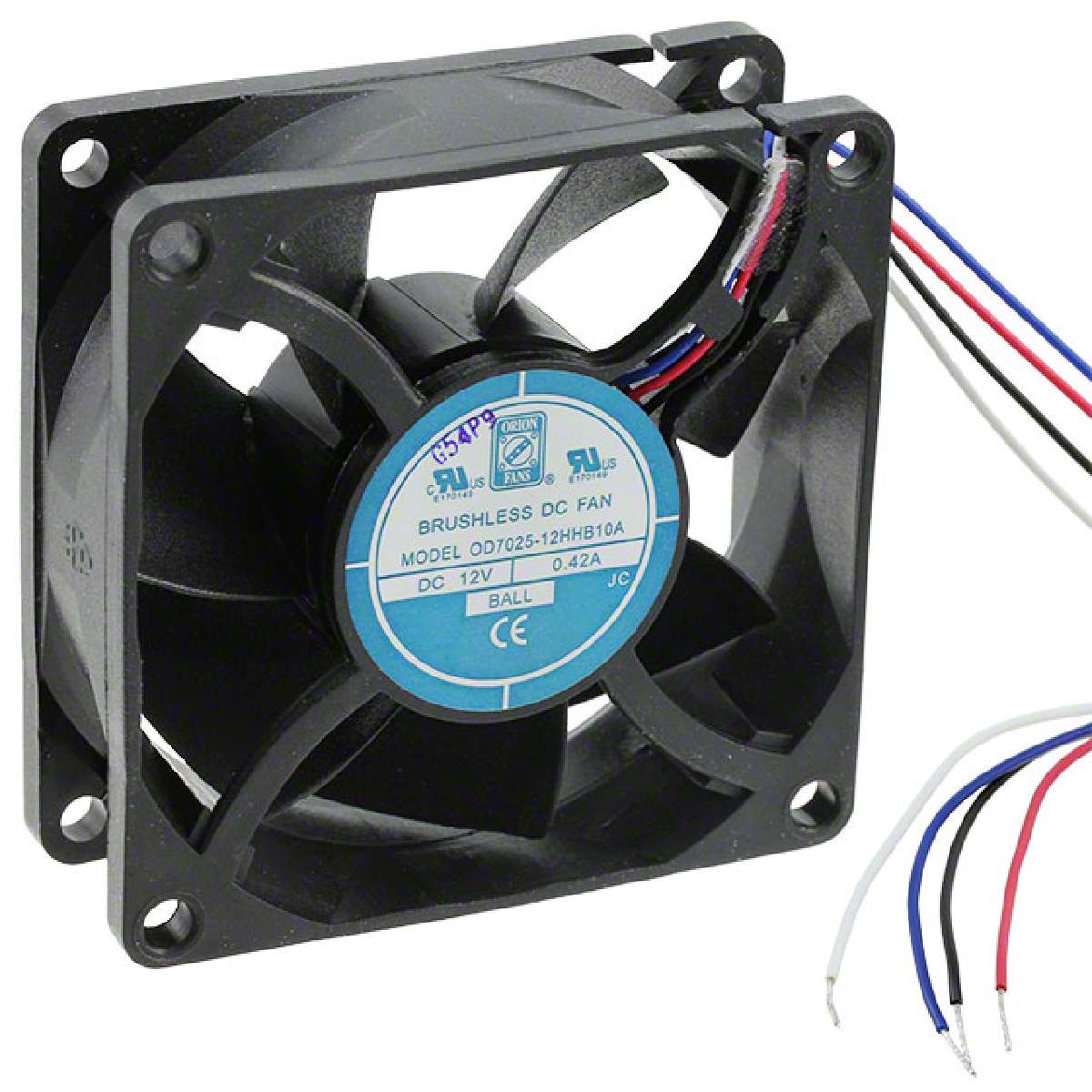

OD7025 Series 5000 RPM 70 x 25 mm 51 CFM 12 V 4 Wire Dual Ball Bearing Fan
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 4 Wire Leads |
|---|---|
| Approvals | * |
| Voltage Range | 10.8 ~ 13.2VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 51.0 CFM (1.44m³/min) |
| Voltage - Rated | 12VDC |
| Noise | 46 dB |
| Family | DC Fans |
| Width | 25mm |
| Bearing Type | Ball |
| Current Rating | 0.420A |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Features | PWM Control; Speed Sensor (Tach) |
| Size / Dimension | Square - 70mm L x 70mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Weight | 0.198 lb (89.81g) |
| Series | OD7025 |
| Power (Watts) | 5.04W |
| RPM | 5000 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
