| OD7020-12HHB10A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

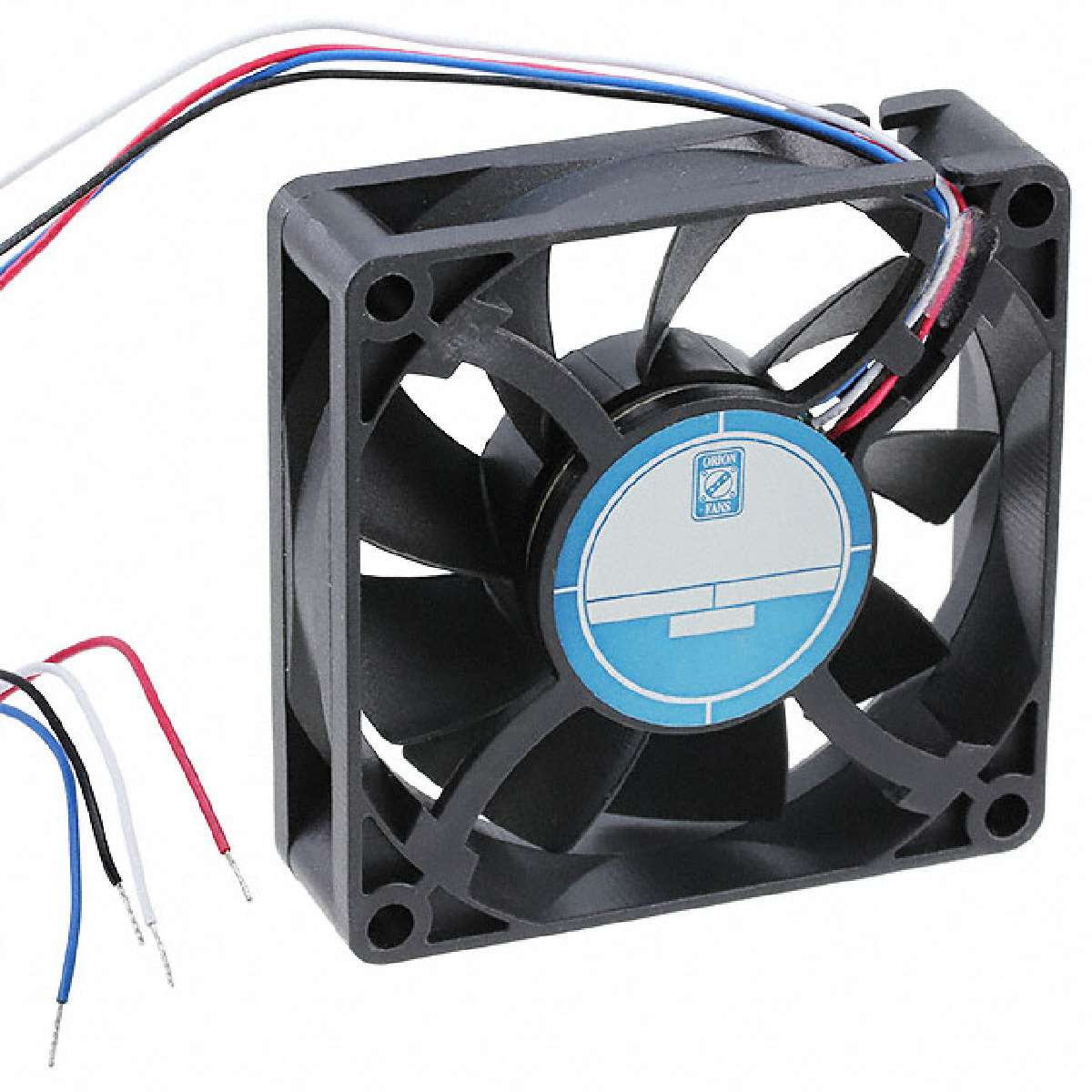

OD7020 Series 5000 RPM 70 x 20 mm 45 CFM 12 V 4 Wire Dual Ball Bearing Fan
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | DC Fans |
|---|---|
| Width: | 20 mm |
| Power Rating: | 6 W |
| Length: | 70 mm |
| Current Type: | DC |
| Airflow: | 45 CFM |
| Series: | OD7020 |
| Frame Dimensions - mm: | 70 mm L x 20 mm W x 70 mm H |
| Termination Style: | Wire Leads |
| Pressure Type: | 0.31 in H2O |
| Height: | 70 mm |
| Unit Weight: | 2.186986 oz |
| ECCN | EAR99 |
| Noise: | 43 dBA |
| Packaging: | Bulk |
| Housing Material: | Plastic |
| Manufacturer: | Orion Fans |
| Speed: | 5000 RPM |
| Operating Supply Voltage: | 12 VDC |
| Brand: | Orion Fans |
| RoHS: | Details |
| Product Category: | DC Fans |
| Size: | 70 mm |
| Bearing Type: | Ball |
| Type: | Brushless Axial Fan |
