| L1C1-4070000000000 | ||
|---|---|---|
|
|
||
|
||

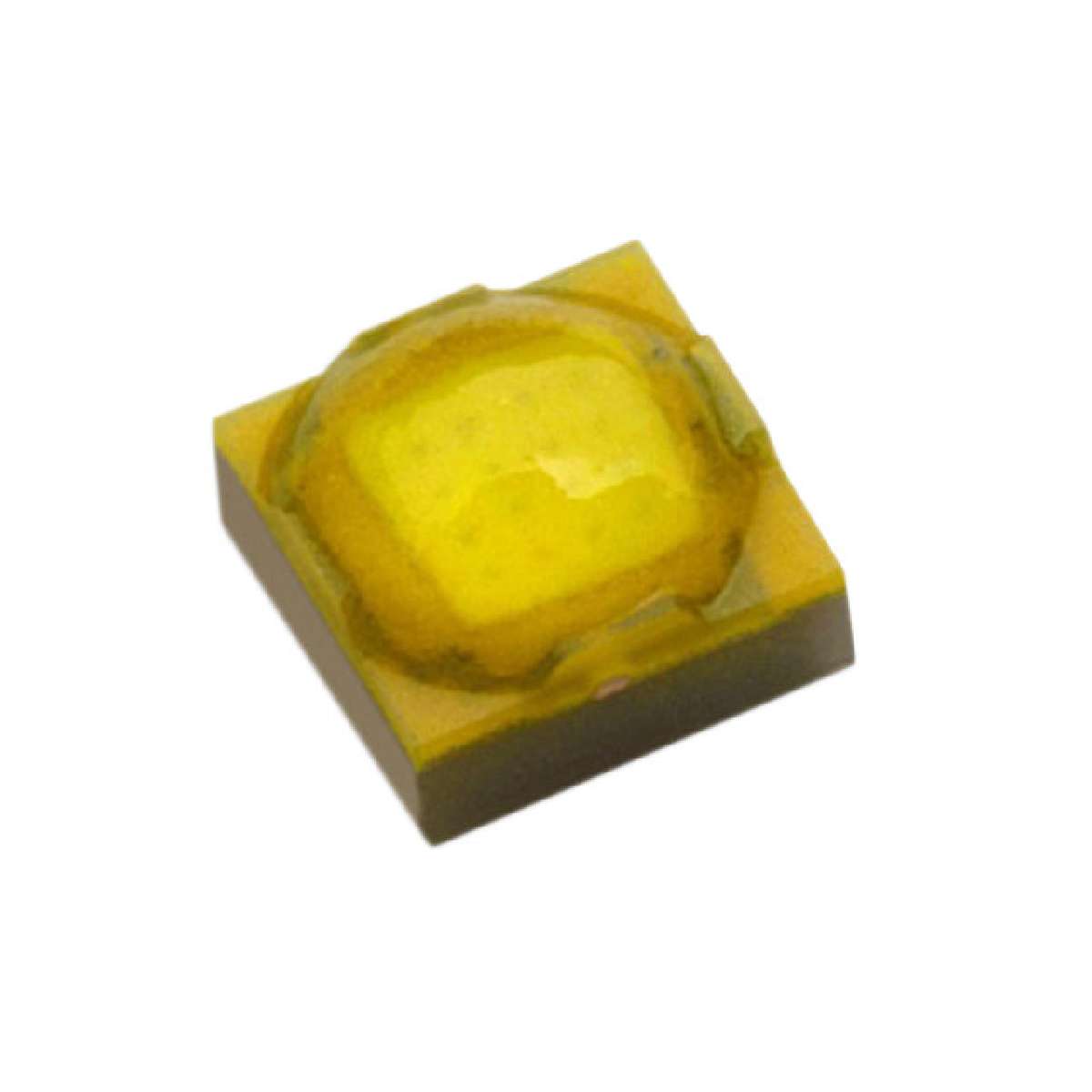

| Product description : LUXEON C Color High Power LED Emitter Neutral White 70 CRI 4000K 100lm Min 350mA | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Lens Color/Style: | Water Clear |
|---|---|
| Viewing Angle: | 150 deg |
| Luminous Flux/Radiant Flux: | 100 lm |
| Minimum Operating Temperature: | - 40 C |
| Package / Case: | SMD-2 |
| Height: | 1.35 mm |
| Lens Dimensions: | 2 mm |
| Vf - Forward Voltage: | 2.75 V |
| Length: | 2 mm |
| Manufacturer: | Lumileds |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Type: | Luxeon C |
| ECCN | EAR99 |
| Width: | 2 mm |
| Packaging: | Reel |
| Color Rendering Index - CRI: | 70 |
| LED Size: | 2 mm x 2 mm x 1.35 mm |
| Illumination Color: | Neutral White |
| Lens Shape: | Dome |
| Mounting Style: | SMD/SMT |
| Color Temperature: | 4000 K |
| If - Forward Current: | 350 mA |
| Series: | LUXEON C |
| Brand: | Lumileds |
| Product Category: | High Power LEDs - White |
| Maximum Operating Temperature: | + 135 C |
