| L2M0-4070004MC3300 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

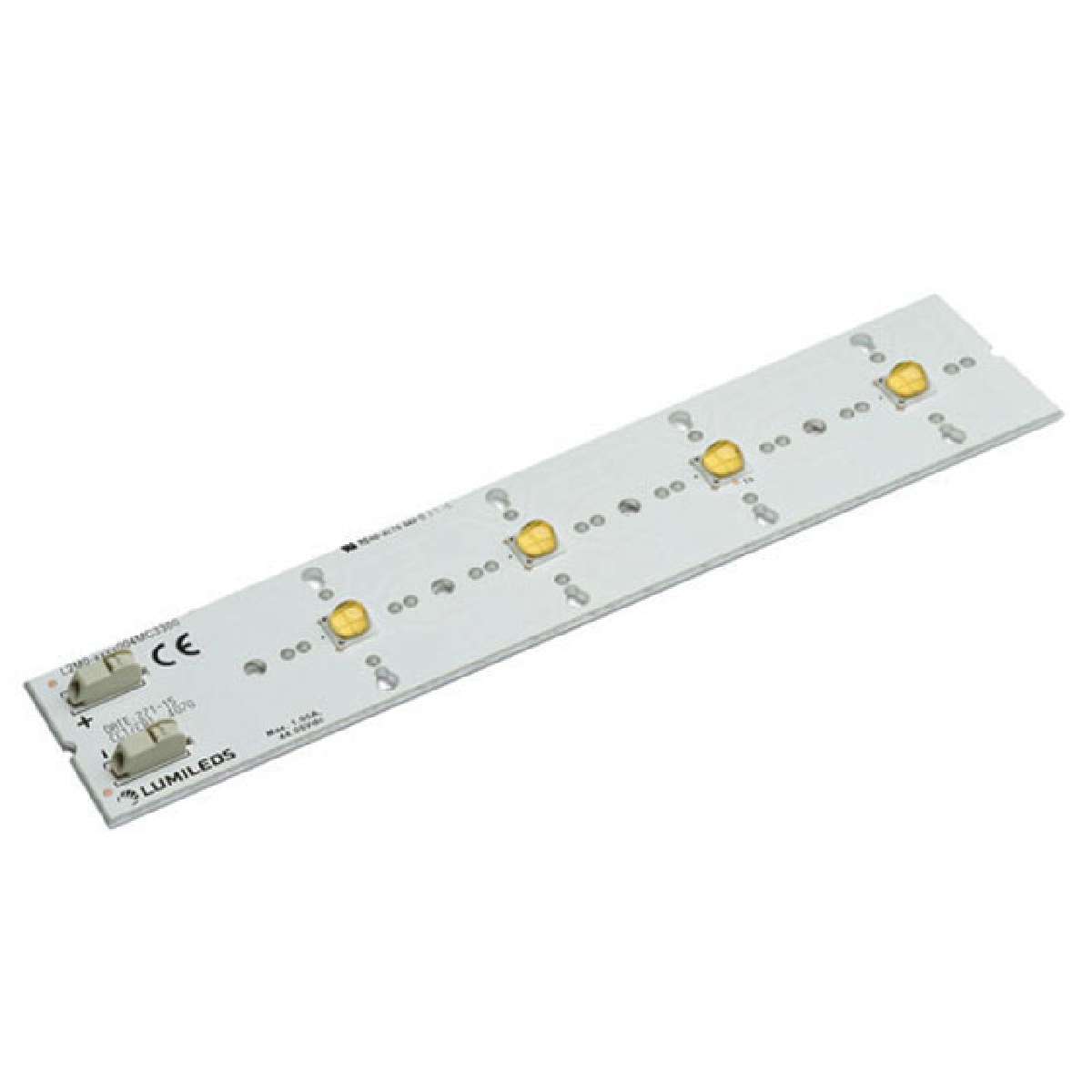

LUXEON MATRIX XR-M 4UP 165MMX33MM LINEAR CCT 4000K CRI70
|
||
| 标准包装：30 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 70 |
|---|---|
| Type | LED Module |
| Configuration | Linear Light Strip |
| Color | White, Neutral |
| Part Status | Active |
| Manufacturer | Lumileds |
| Voltage - Forward (Vf) (Typ) | 43.8V |
| Series | LUXEON XR-M |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 137 lm/W |
| ECCN | EAR99 |
| Lens Type | Domed |
| Height | 6.21mm |
| CCT (K) | 4000K |
| Size / Dimension | 165.00mm L x 33.00mm W |
| Temperature - Test | 85°C |
| Category | Optoelectronics |
| Current - Test | 700mA |
| Current - Max | 1.05A |
| Flux @ Current/Temperature - Test | 4211 lm (Typ) |
| Packaging | Tray |
