08020SA-12L-AA-00
08020SA-12L-AA-00
  • ACTIVE
  • EAR99

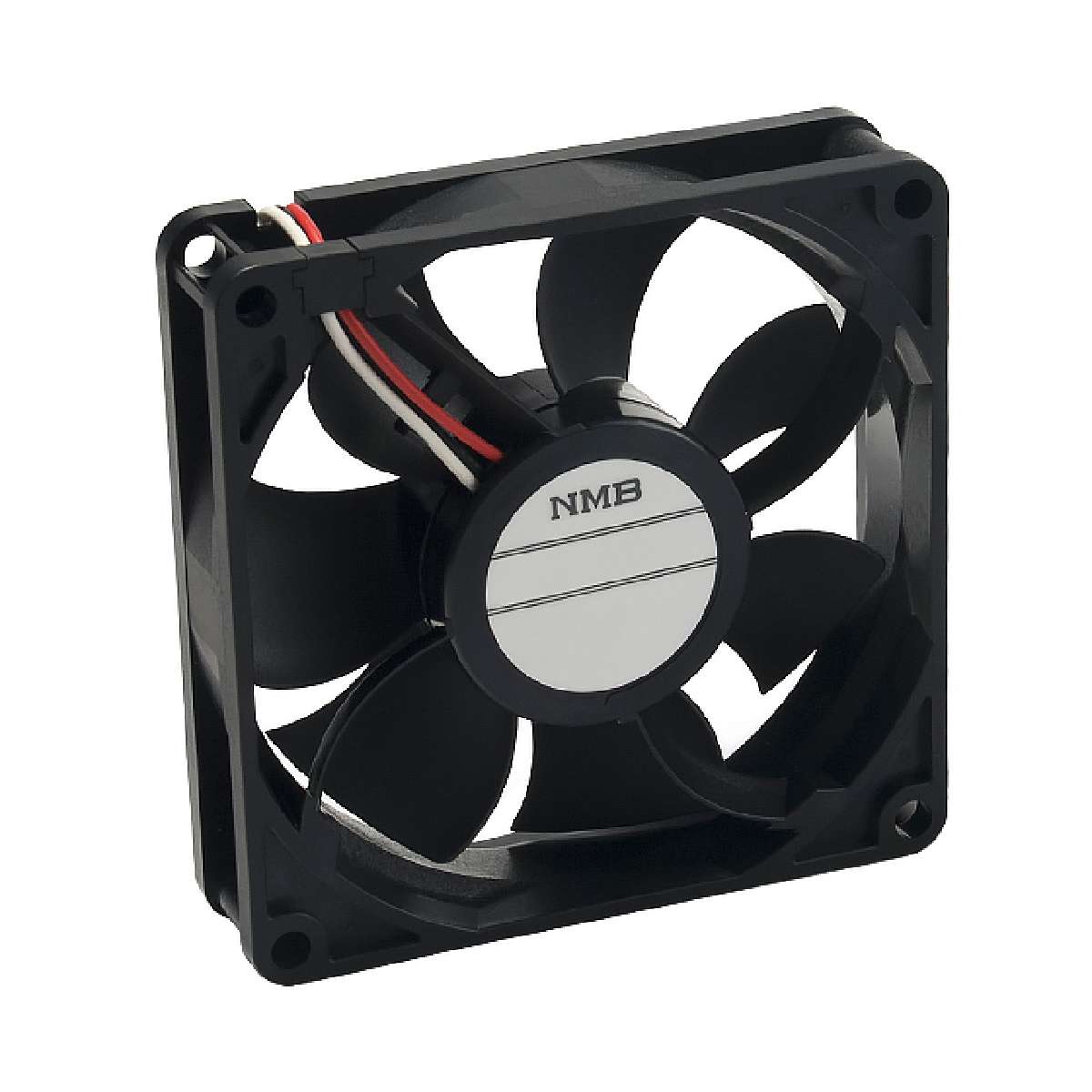

Product description : 80 x 20 mm 12 V 3300 RPM 36 CFM 34 dB 2 Wire Ball Bearing DC Axial Fan
SPQ:120
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Termination 2 Wire Leads
Material - Blade Plastic
Size / Dimension Square - 80mm L x 80mm H
Category Fans, Thermal Management
Material - Frame Plastic
Weight 0.176 lb (79.83g)
Series 08020SA
Power (Watts) 1.08W
RPM 3300 RPM
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Fan Type Tubeaxial
ECCN EAR99
Static Pressure 0.170 in H2O (42.3 Pa)
Voltage Range 6 ~ 13.8VDC
Part Status Active
Manufacturer NMB Technologies Corporation
Air Flow 36.0 CFM (1.02m³/min)
Voltage - Rated 12VDC
Noise 34 dB
Family DC Fans
Width 20.00mm
Bearing Type Ball
Current Rating 0.090A
