| PE60201B1-000U-A99 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

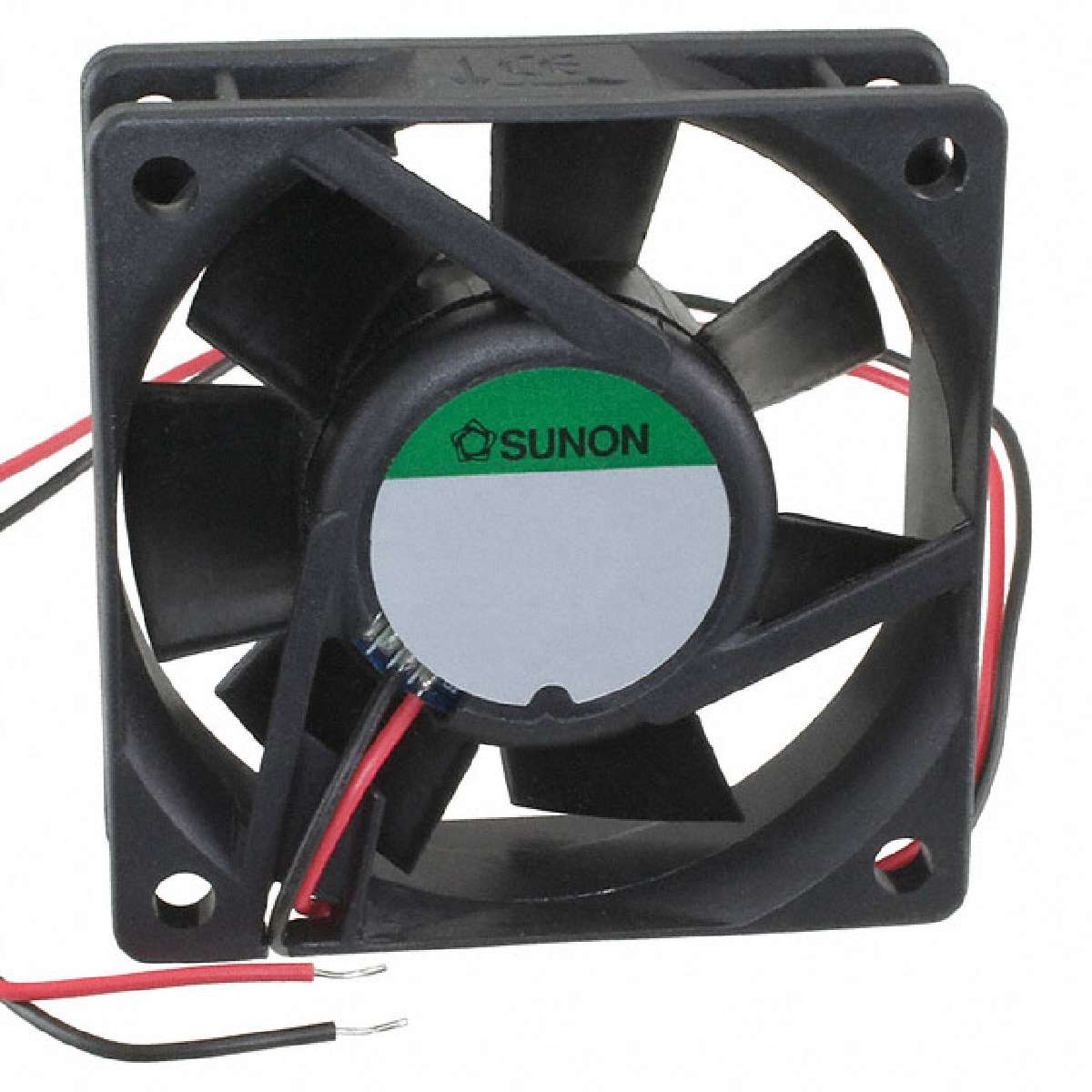

Fan: DC; axial; 12VDC; 60x60x20mm; 46.72m3/h; 39dBA; ball bearing
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Features | AutoRestart |
| Size / Dimension | Square - 60mm L x 60mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Weight | 0.115 lb (52.16g) |
| Series | DR MagLev® |
| Power (Watts) | 2.30W |
| RPM | 5000 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.280 in H2O (69.7 Pa) |
| Approvals | CE, CUR, TUV, UL |
| Voltage Range | 6 ~ 13.8VDC |
| Part Status | Active |
| Manufacturer | Sunon Fans |
| Air Flow | 27.5 CFM (0.779m³/min) |
| Voltage - Rated | 12VDC |
| Noise | 39 dB(A) |
| Family | DC Fans |
| Width | 20.00mm |
| Bearing Type | Ball |
| Current Rating | 0.192A |
