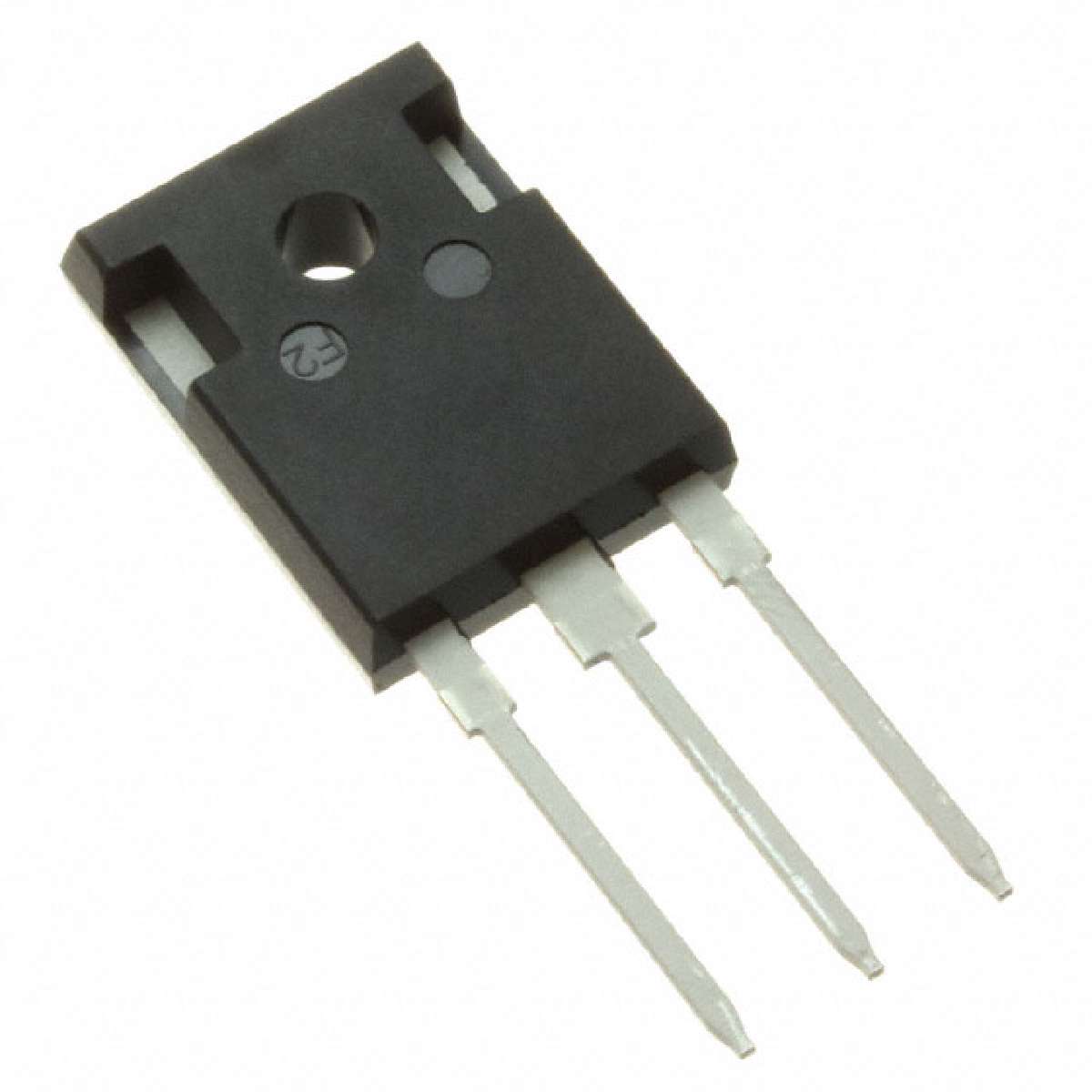

| SDUR6020WT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Schottky Rectifiers
|
||
| 标准包装：30 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -55°C ~ 150°C |
|---|---|
| Supplier Device Package | TO-247AD |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 45ns |
| Family | Diodes - Rectifiers - Arrays |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 30A |
| ECCN | EAR99 |
| Package / Case | TO-247-3 |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | SMC Diode Solutions |
| Current - Reverse Leakage @ Vr | 10µA @ 200V |
| Mounting Type | Through Hole |
| Diode Configuration | 1 Pair Common Cathode |
| Packaging | Tube |
