| MBR1060STR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

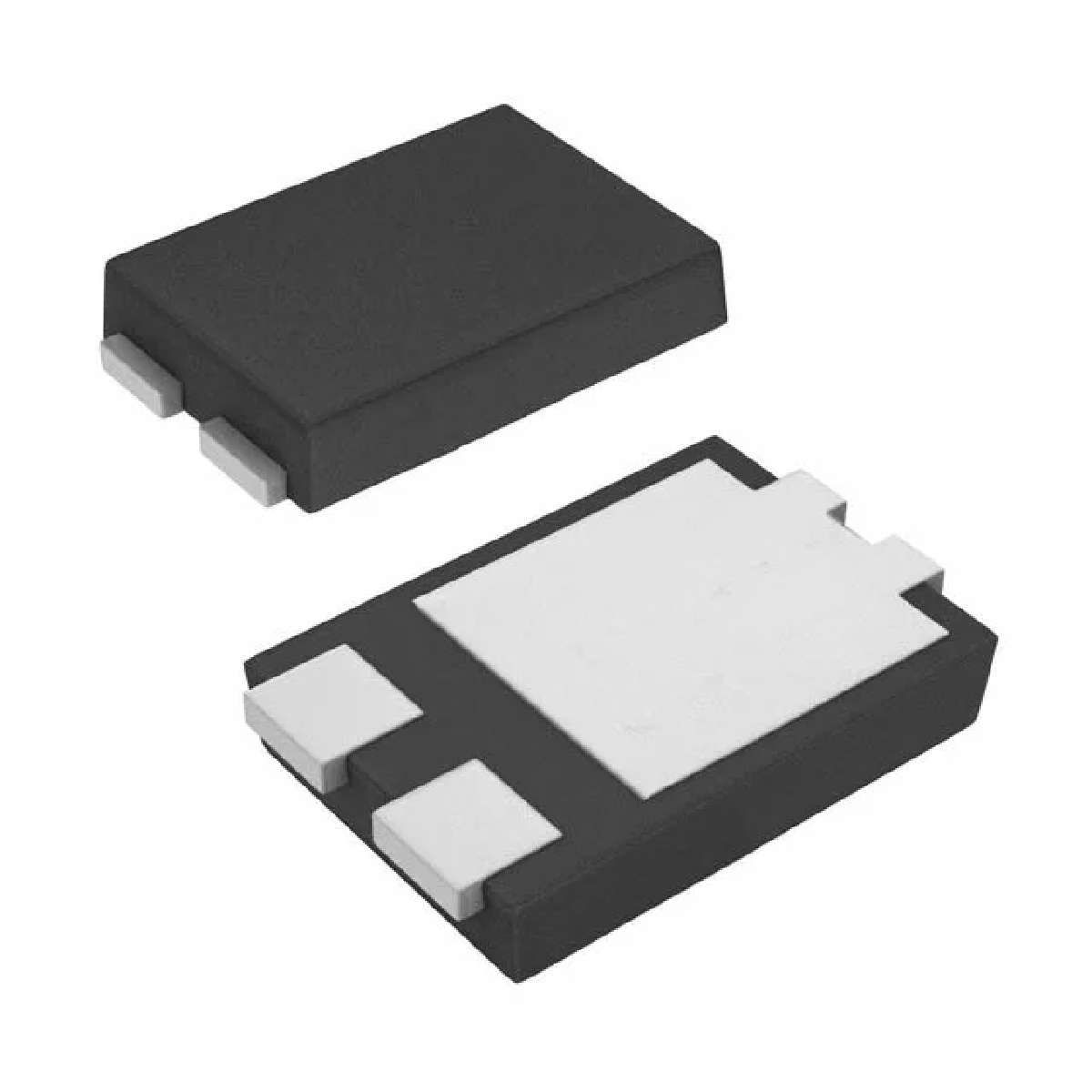

MBR1060 Series 60 V 10 A Surface Mount Schottky Rectifier - TO-277B
|
||
| 标准包装：5000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -55°C ~ 150°C |
|---|---|
| Capacitance @ Vr, F | 850pF @ 5V, 1MHz |
| Supplier Device Package | TO-277B |
| Diode Type | Schottky |
| Category | Discrete Semiconductor Products |
| Current - Reverse Leakage @ Vr | 1mA @ 60V |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 630mV @ 10A |
| ECCN | EAR99 |
| Current - Average Rectified (Io) | 10A |
| Package / Case | TO-277, 3-PowerDFN |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | SMC Diode Solutions |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 60V |
| Packaging | Tape & Reel (TR) |
