| LTST-T680KRWT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

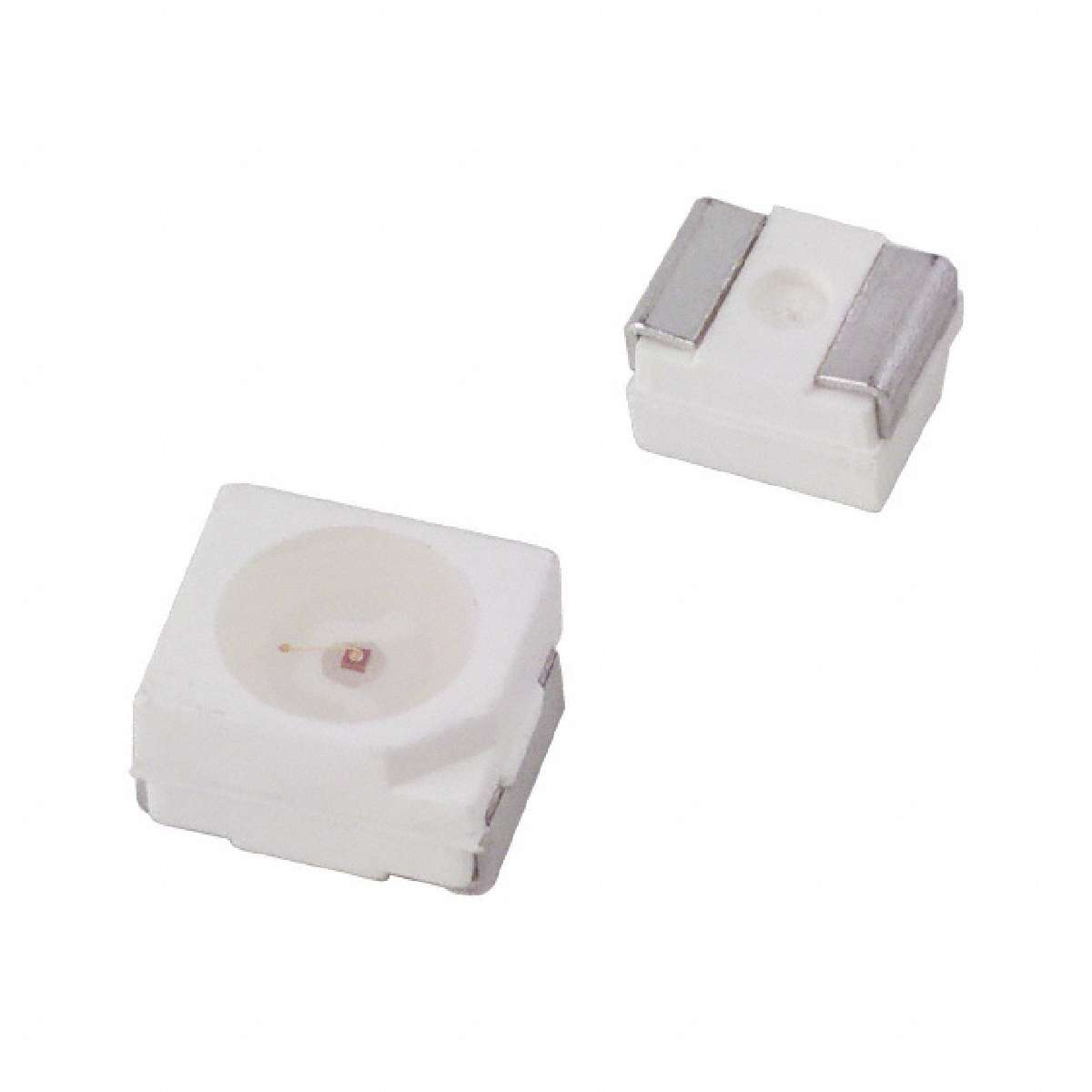

LED; SMD; 3528; red; 90÷280mcd; 3.5x2.8x1.9mm; 120°; 2÷2.4V; 20mA
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 2-LCC (J-Lead) |
|---|---|
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Category | Optoelectronics |
| Lens Style/Size | Round with Flat Top |
| Voltage - Forward (Vf) (Typ) | 2V |
| Wavelength - Peak | 639nm |
| Height (Max) | 1.90mm |
| Lens Transparency | Diffused |
| Packaging | Tape & Reel (TR) |
| Viewing Angle | 120° |
| Color | Red |
| Part Status | Active |
| Manufacturer | Lite-On Inc. |
| Wavelength - Dominant | 631nm |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 185mcd |
