| ES2GTR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

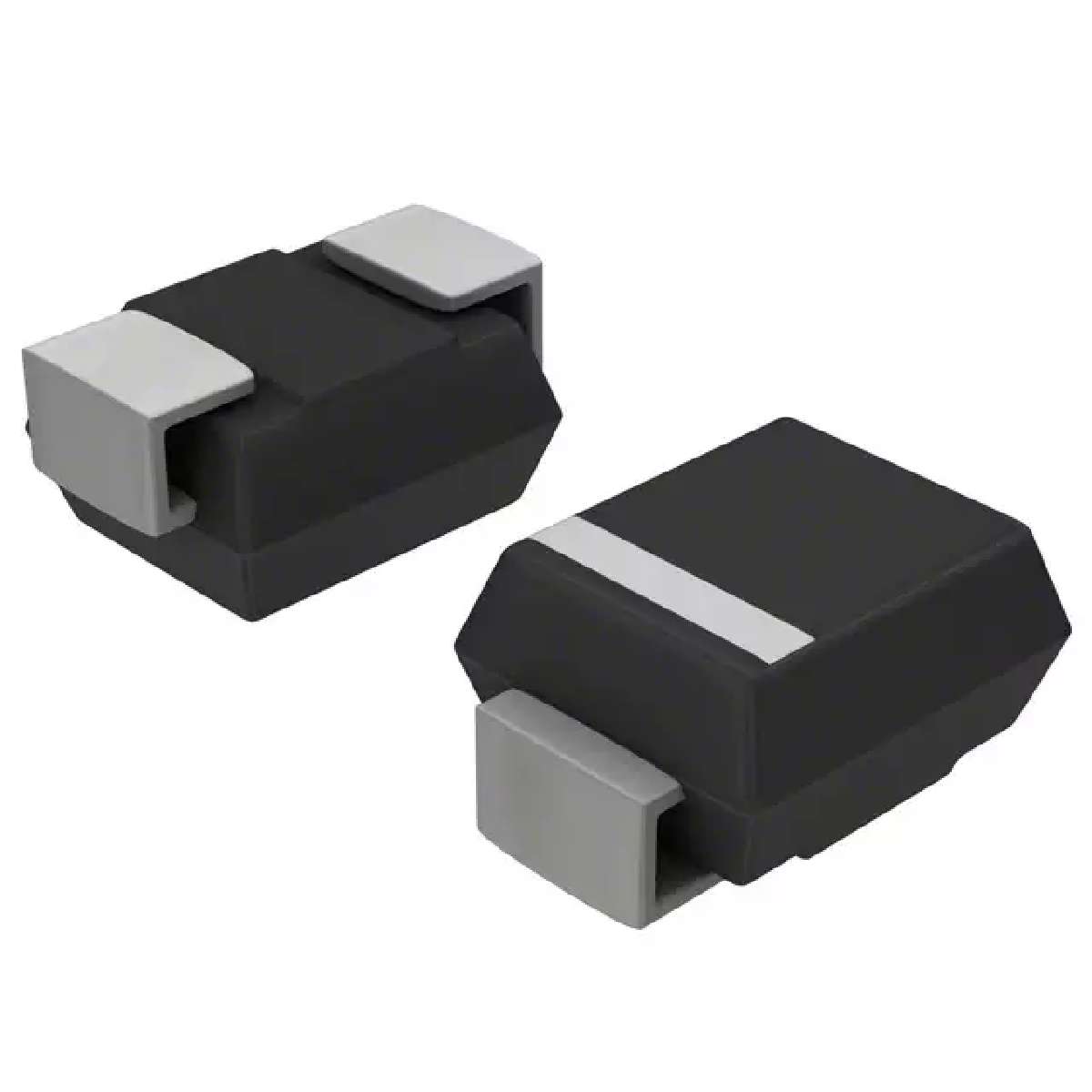

ES1G Series 400 V 2 A Surface Mount Super Fast Rectifier - DO-214AC
|
||
| 标准包装：5000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -55°C ~ 150°C |
|---|---|
| Capacitance @ Vr, F | 25pF @ 4V, 1MHz |
| Supplier Device Package | SMA (DO-214AC) |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 35ns |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 400V |
| Packaging | Digi-Reel® |
| Current - Average Rectified (Io) | 2A |
| Package / Case | DO-214AC, SMA |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | SMC Diode Solutions |
| Current - Reverse Leakage @ Vr | 5µA @ 400V |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 2A |
| ECCN | EAR99 |
