| BAT54TR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

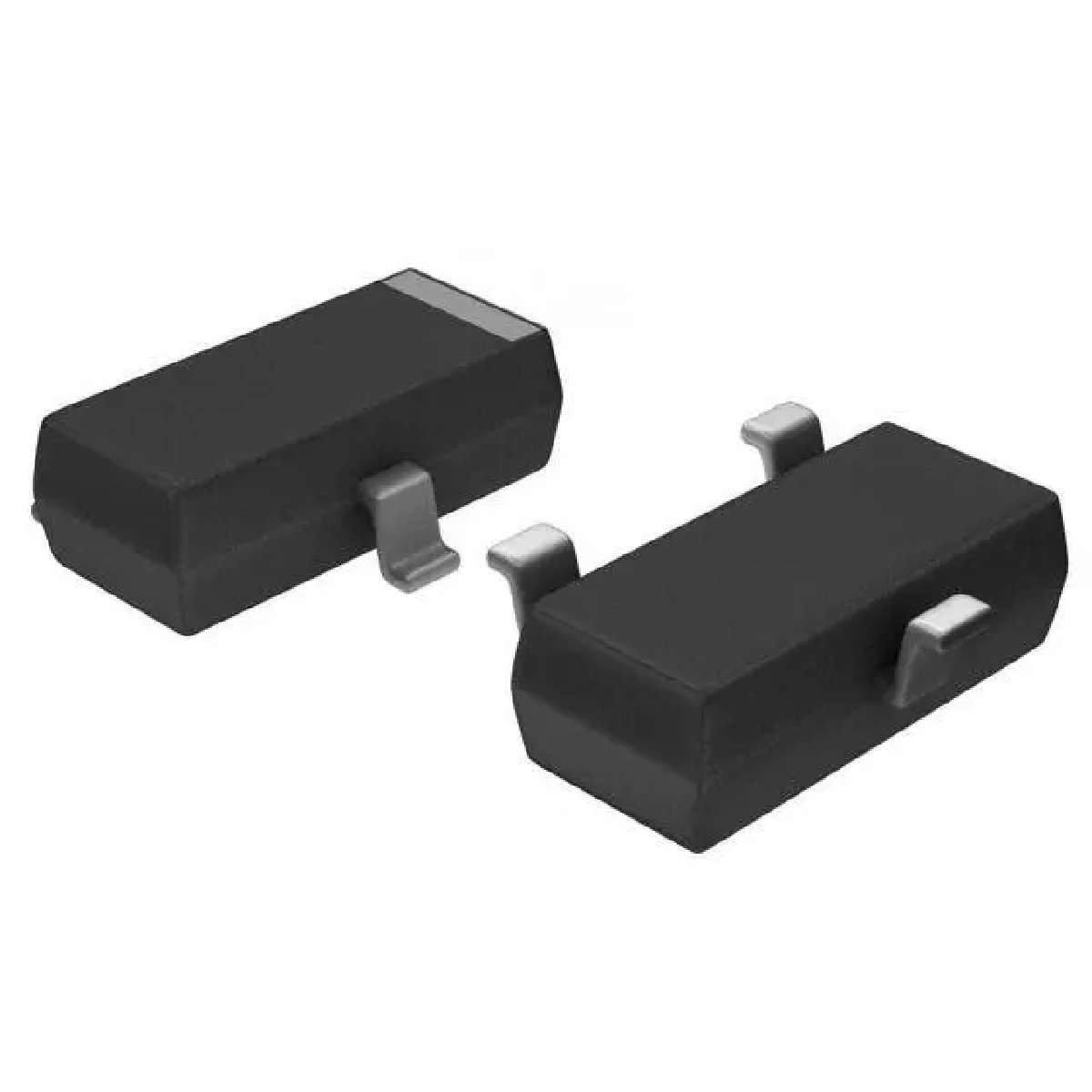

BAT54 Series 30 V 0.2 A Surface Mount Schottky Rectifier - SOT-23
|
||
| 标准包装：3000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | 150°C (Max) |
|---|---|
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | SMC Diode Solutions |
| Current - Reverse Leakage @ Vr | 1µA @ 30V |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 100mA |
| ECCN | EAR99 |
| Capacitance @ Vr, F | 10pF @ 5V, 1MHz |
| Supplier Device Package | SOT-23 |
| Diode Type | Schottky |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 5ns |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Packaging | Digi-Reel® |
