| FDMC8010ET30 | ||
|---|---|---|
|
|
||
|
||
| Product description : N-Channel 30 V 174 A 1.3 mOhm Surface Mount PowerTrench Mosfet - Power 33 | ||
| SPQ：3000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| FET Feature | Standard |
|---|---|

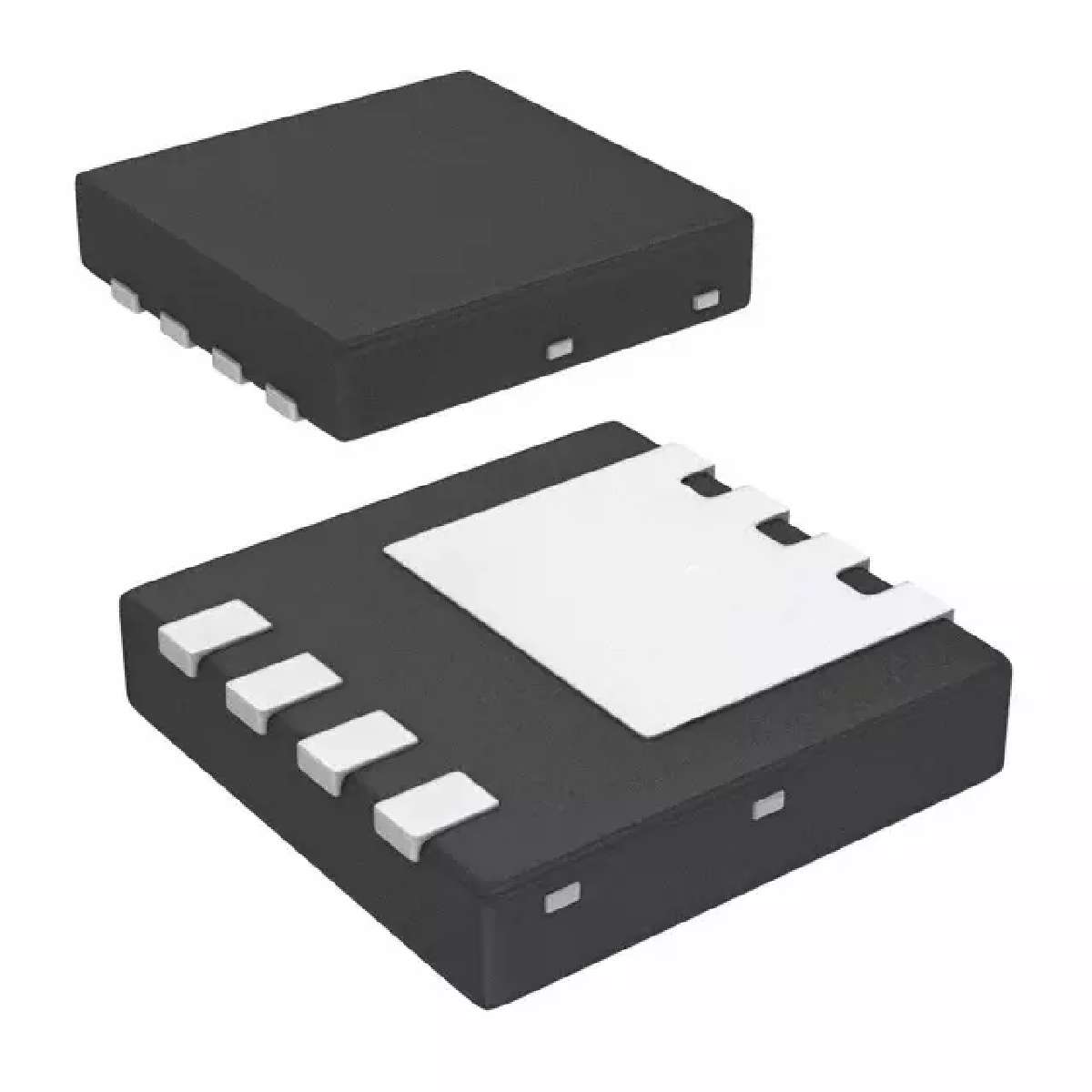

| Package / Case | 8-PowerWDFN |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 174A (Tc) |
| Part Status | Active |
| Manufacturer | Fairchild Semiconductor |
| Series | PowerTrench® |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Packaging | Digi-Reel® |
| Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 30A, 10V |
| Power - Max | 2.8W |
| Supplier Device Package | 8-PQFN (3.3x3.3), Power33 |
| Gate Charge (Qg) @ Vgs | 94nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 5860pF @ 15V |
| ECCN | EAR99 |
