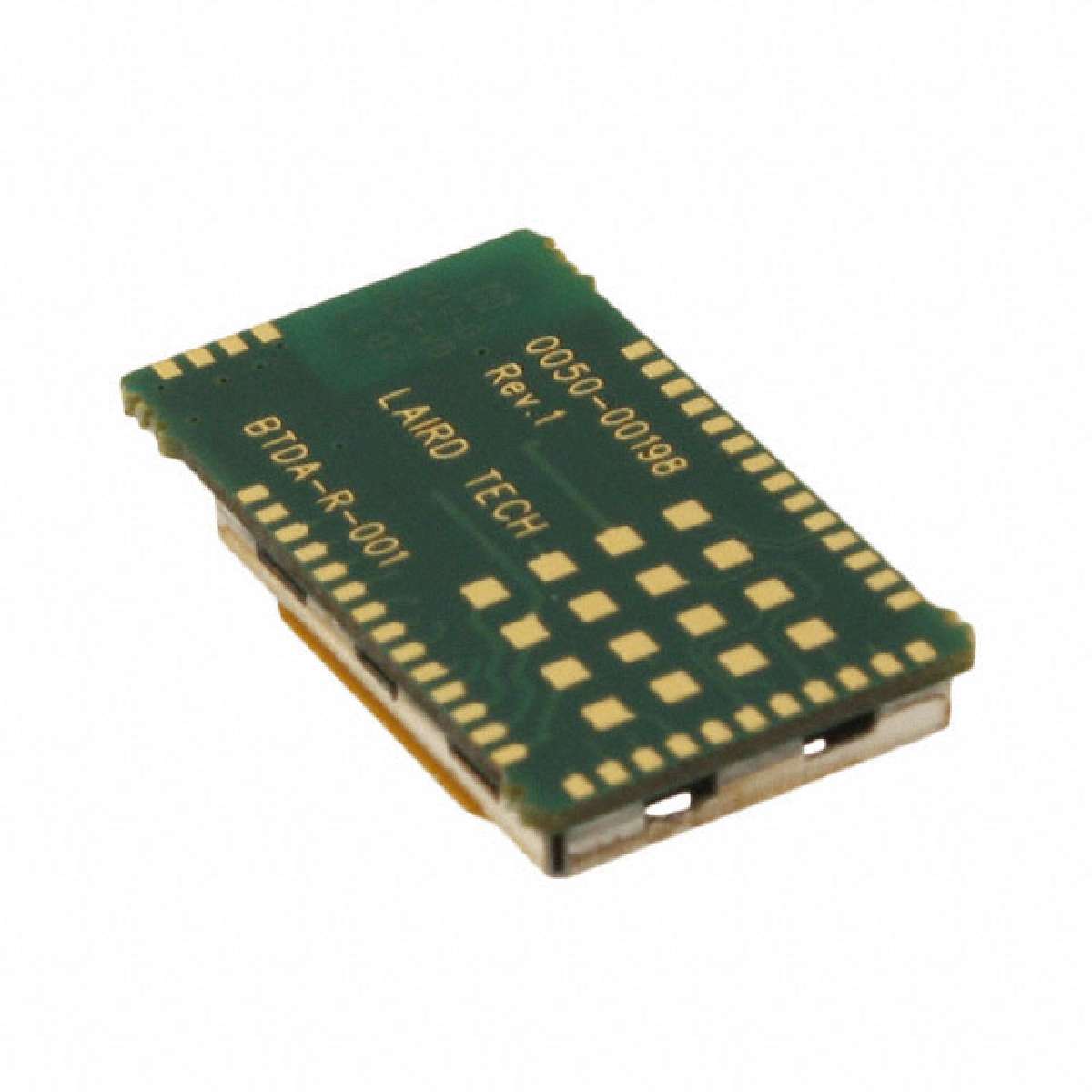

| BTM411 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
2.1 Mbps Class 2 Bluetooth V2.1 AT Data Module w/Integrated Antenna
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Supply | 3 V ~ 3.3 V |
|---|---|
| RF Family/Standard | Bluetooth |
| Package / Case | Module |
| Power - Output | 4dBm |
| Antenna Type | Integrated, Chip |
| Category | RF/IF and RFID |
| Current - Receiving | 40mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tray |
| Sensitivity | -84dBm |
| Data Rate | 2.1Mbps |
| Serial Interfaces | UART |
| Current - Transmitting | 40mA |
| Part Status | Active |
| Manufacturer | Laird - Embedded Wireless Solutions |
| Family | RF Transceiver Modules |
| Frequency | 2.4GHz |
| Protocol | Bluetooth v2.1 + EDR |
| 数据手册： |
|---|
