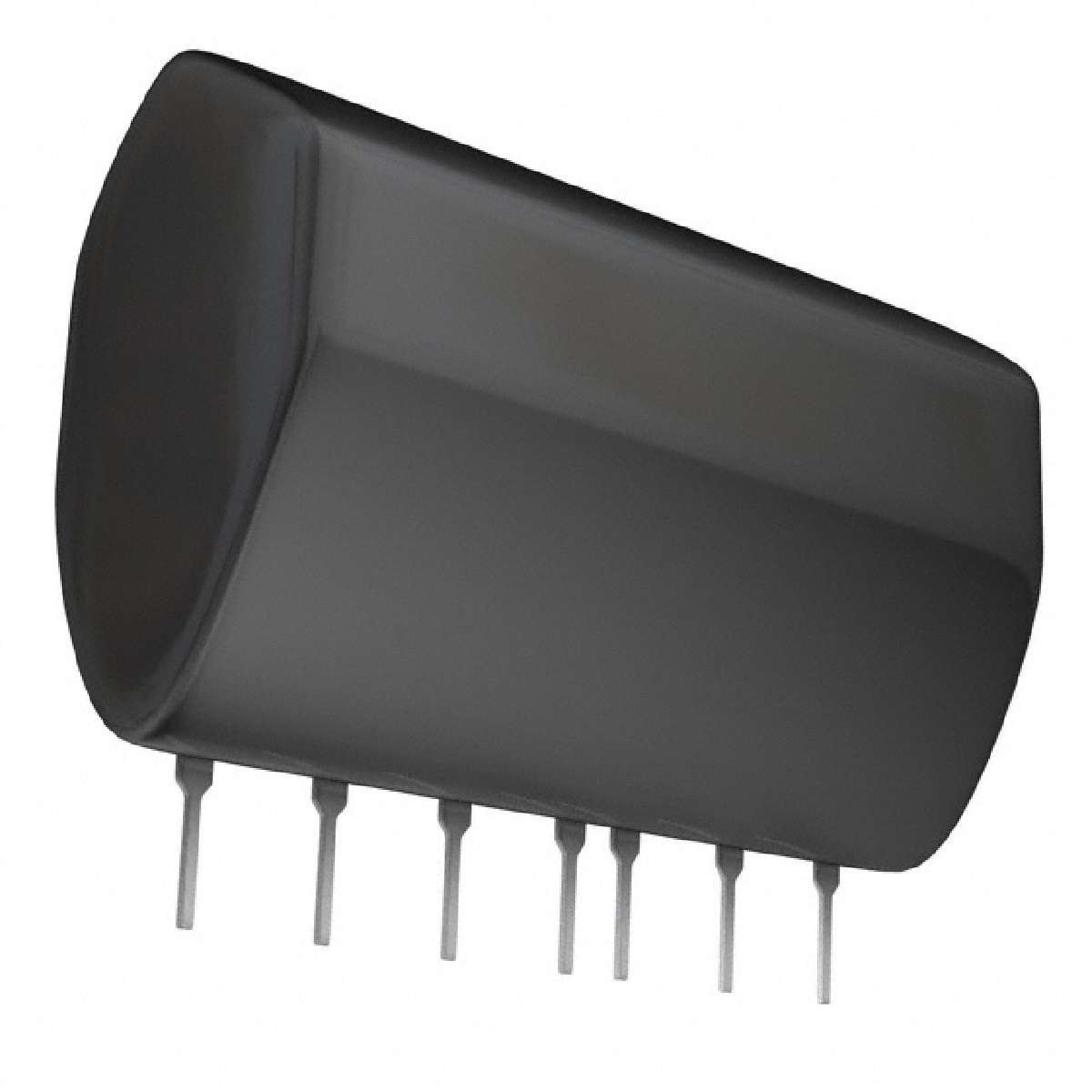

| BP5068-15 | ||
|---|---|---|
|
||
|
||
| 产品描述：
AC/DC CONVERTER -15V 800MA 12W
|
||
| 标准包装：96 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Line Regulation | 200mV |
|---|---|
| Number of Outputs | 1 |
| Load Regulation | 500mV |
| Size / Dimension | 1.36\" L x 0.44\" W x 0.85\" H (34.5mm x 11.3mm x 21.5mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Rohm Semiconductor |
| Series | BP5068 |
| Family | AC DC Converters |
| Mounting Type | Through Hole |
| Power (Watts) - Max | 12W |
| Lead Free Status / RoHS Status | 1 |
| Type | Enclosed |
| Voltage - Input | 85 ~ 115 VAC |
| Current - Output (Max) | 800mA |
| Power Supply Type | Enclosed |
| Part Status | Obsolete |
| Efficiency | 0.85 |
| Voltage - Output 1 | -15V |
| Power (Watts) | 12W |
| Applications | ITE (Commercial) |
| Operating Temperature | -20°C ~ 80°C (With Derating) |
| Package / Case | 12-SIP Module, 7 Leads |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
