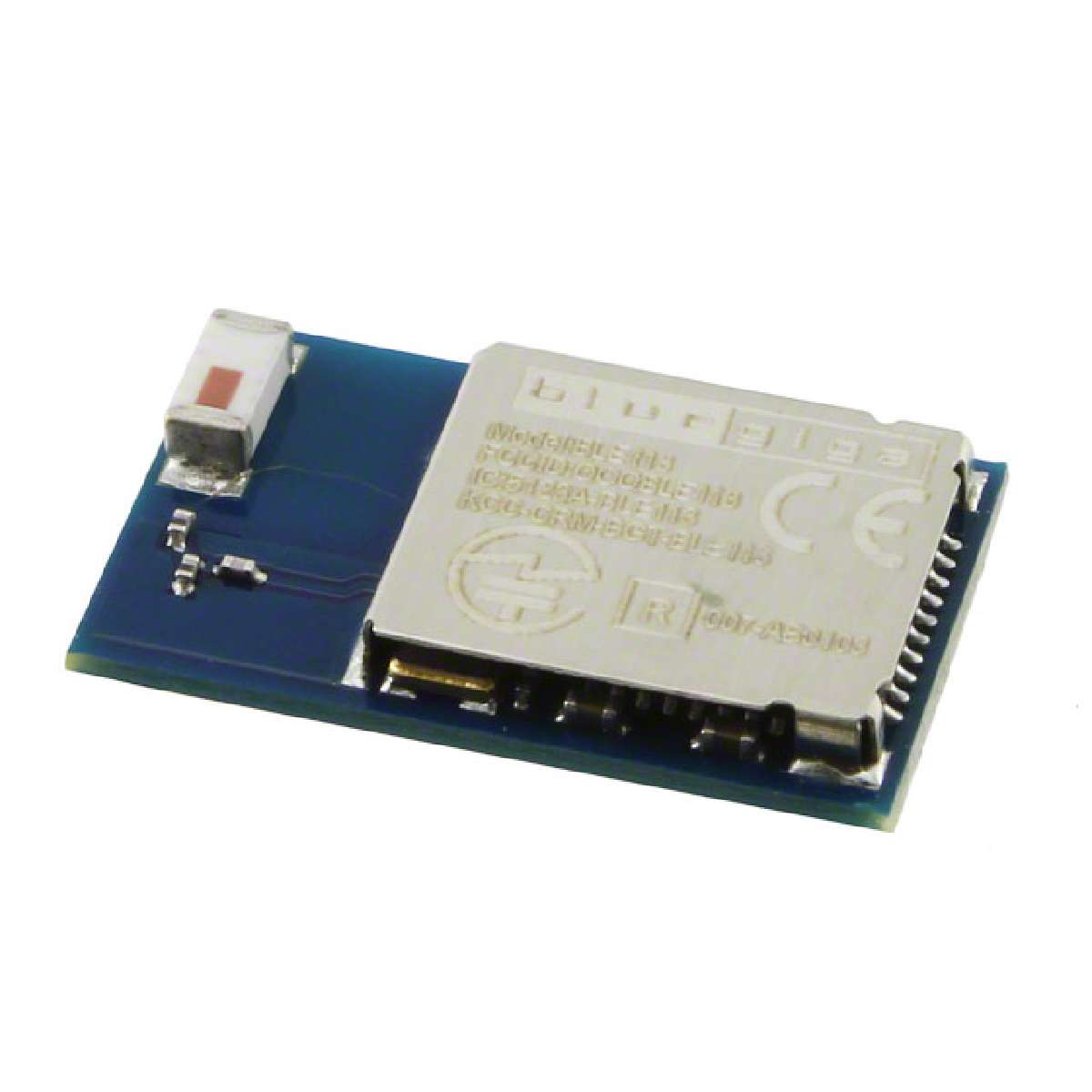

| BLE113-A-V1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Module: Bluetooth; GPIO,I2C,PWM,SPI,UART
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| RF Family/Standard | Bluetooth |
|---|---|
| Voltage - Supply | 2 V ~ 3.6 V |
| Package / Case | Module |
| Power - Output | 0dBm |
| Antenna Type | Integrated, Chip |
| Part Status | Active |
| Manufacturer | Silicon Labs |
| Family | RF Transceiver Modules |
| Frequency | 2.4GHz |
| Protocol | Bluetooth v4.0 |
| Sensitivity | -93dBm |
| Data Rate | 2Mbps |
| Serial Interfaces | ISP, PWM, SPI, UART |
| Current - Transmitting | 26.1mA |
| Memory Size | 128kB Flash, 8kB SRAM |
| Category | RF/IF and RFID |
| Current - Receiving | 27mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Digi-Reel® |
| 数据手册： |
|---|
