BD04AV | ||
---|---|---|
|
||
|
||
产品描述:

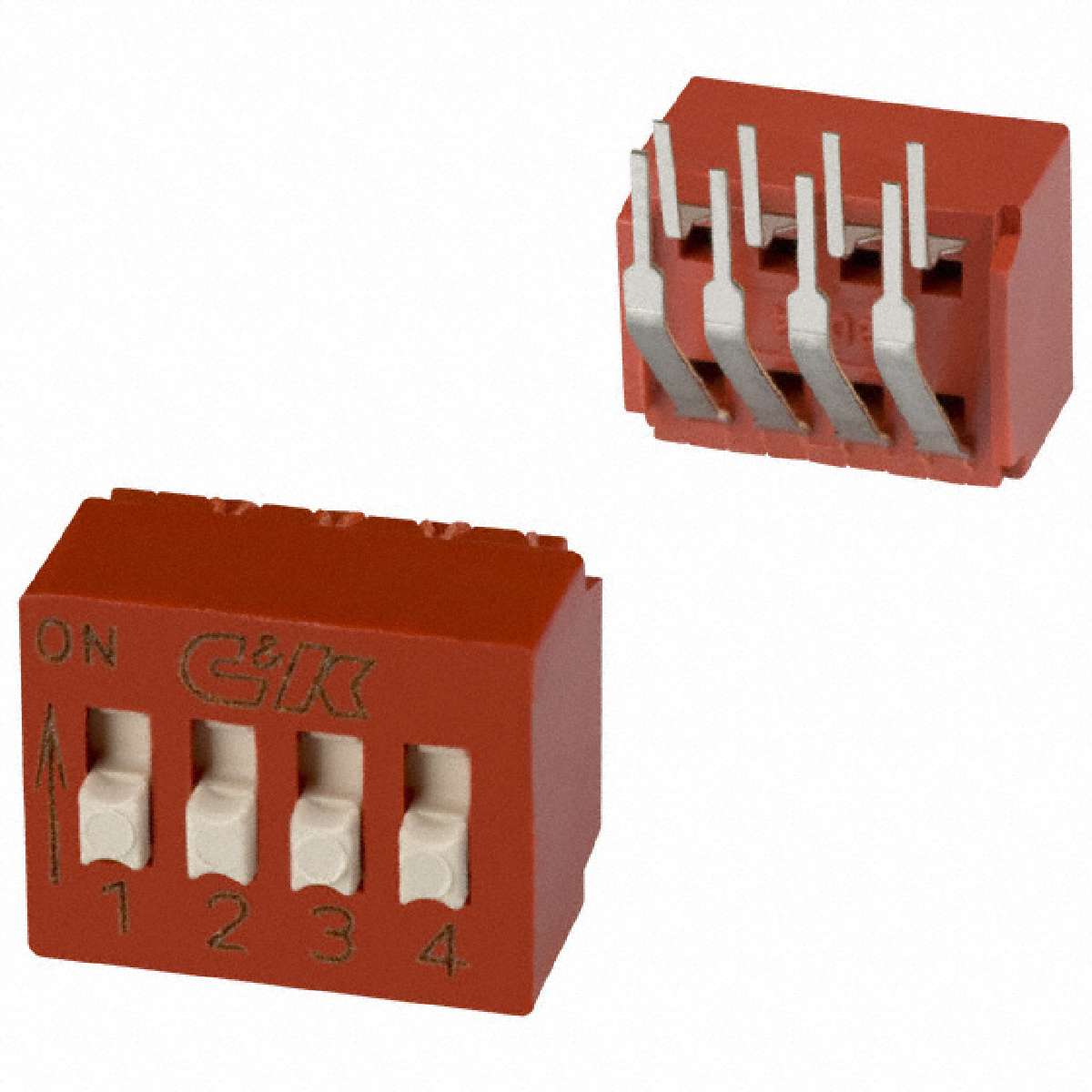

BD Series Side Actuated SPST 4 Position Right Angle Through Hole DIP Switch
|
||
标准包装:42 | ||
数据手册: -- |
Contact Rating: | 25 mA at 25 V, 100 mA at 5 V, 50 V |
---|---|
Mounting Angle: | Vertical |
Actuator: | Extended |
Mounting: | Right Angle |
Operating Temperature Range: | - 40 C to + 85 C |
Factory Pack Quantity: | 42 |
RoHS: | Details |
Termination Style: | PCB |
Contact Material: | Palladium Silver |
Current Rating: | 100 mA |
Life: | 10000 Cycles |
ECCN | EAR99 |
Packaging: | Tube |
Switch Type: | DIP |
Manufacturer: | C&K Components |
Series: | BD |
Contact Form: | SPST |
Brand: | C&K Components |
Number of Positions: | 4 Position |
Package / Case: | DIP |
Product Category: | DIP Switches / SIP Switches |
Contact Plating: | Palladium Silver |
Terminal Pitch: | 2.54 mm |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
stock | 1655 | Update On 2024-05-28 |
---|---|---|
Lead-Time | 0Weeks | |
Supplier SPQ/MOQ | 42/35 | |
Location | -- | |
DateCode | -- |
