| BD02AV | ||
|---|---|---|
|
|
||
|
||

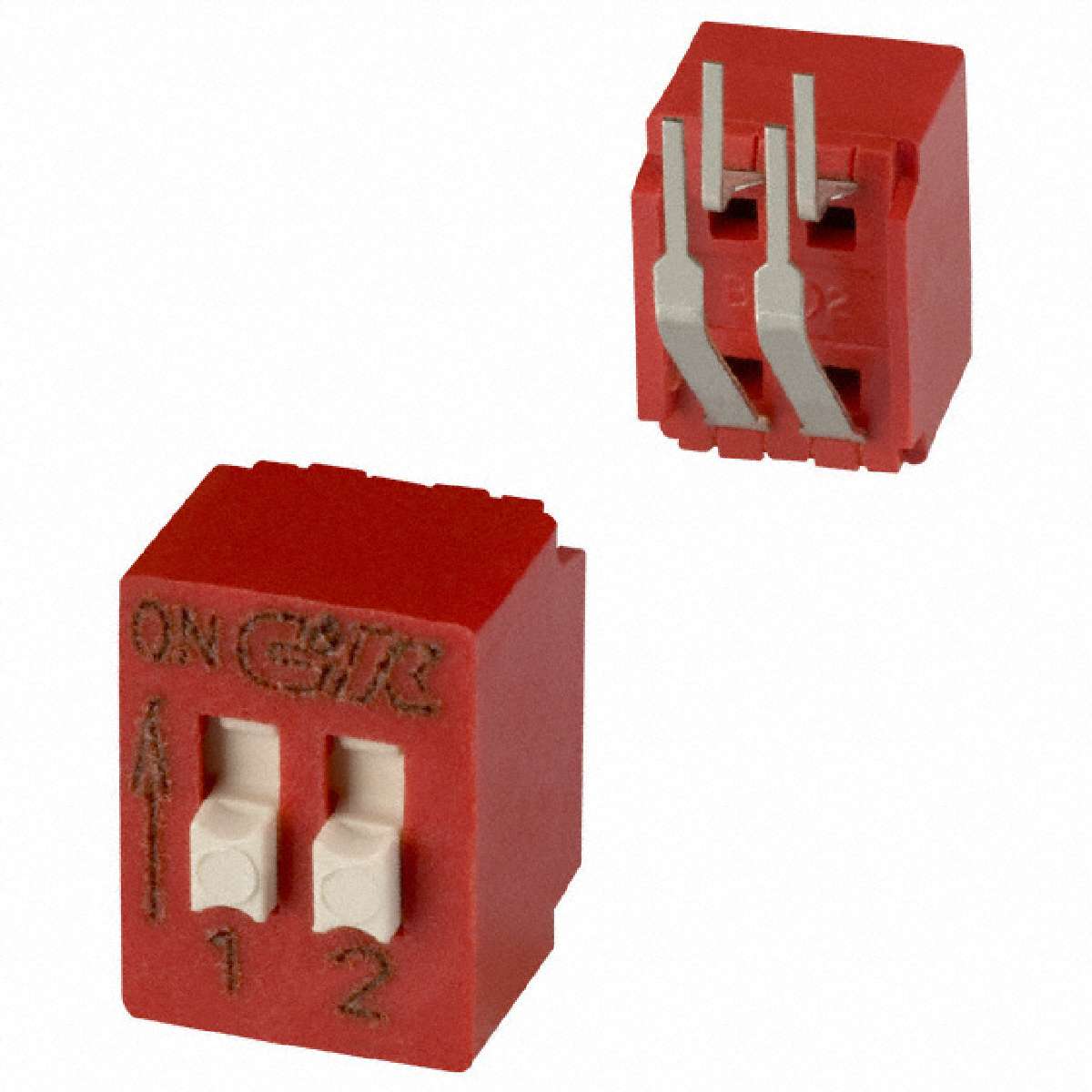

| Product description : BD Series Side Actuated SPST 2 Position Right Angle Through Hole DIP Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination Style | PC Pin |
|---|---|
| Voltage Rating | 5VDC |
| Electrical Life | 10,000 Cycles |
| Washable | Yes |
| Packaging | Tube |
| Circuit | SPST |
| Part Status | Active |
| Contact Material | Phosphor Bronze |
| Length | 0.280" (7.11mm) |
| Number of Positions | 2 |
| Family | DIP Switches |
| Current Rating | 100mA |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Body Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Manufacturer | C&K Components |
| Mounting Type | Through Hole, Right Angle |
| Height Above Board | 0.380" (9.64mm) |
| Actuator Type | Slide (Standard) |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 10,000 Cycles |
| Series | BD |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$3.348
￥27.80730999382996
See more prices
| 15+ | $3.348 |
|---|---|
| 625+ | $3.2705 |
| 1250+ | $3.1775 |
| 2500+ | $3.038 |
| 10000+ | $3.007 |
| stock | 27624 | Update On 2022-11-30 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/15 | |
| Location | -- | |
| DateCode | -- |
