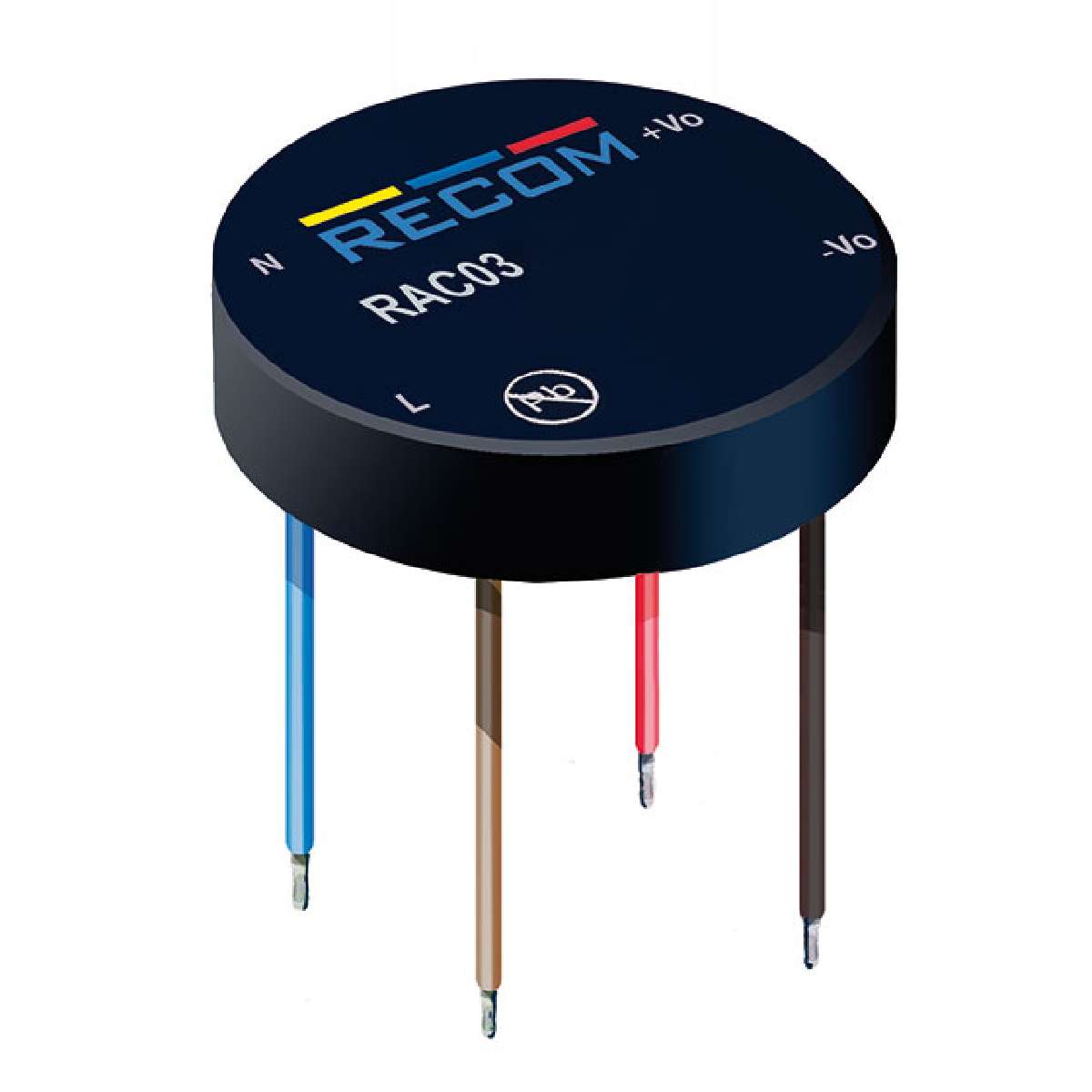

| RAC03-12SER/277 | ||
|---|---|---|
|
|
||
|
||
| Product description : Converter: AC/DC; 3W; 85÷305VAC; Usup: 120÷430VDC; Uout: 12VDC; 74% | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 3kV (3000V) |
|---|---|
| Voltage - Input | 85 ~ 305 VAC |
| Current - Output (Max) | 250mA |
| Features | DC Input Capable, Universal Input |
| Part Status | Active |
| Category | Power Supplies - External/Internal (Off-Board) |
| Manufacturer | Recom Power |
| Series | POWERLINE RAC03-SER/277 |
| Family | AC DC Converters |
| Mounting Type | Chassis Mount |
| Power (Watts) - Max | 3W |
| Number of Outputs | 1 |
| Type | Enclosed |
| Approvals | CE, cURus |
| Size / Dimension | 1.98" L x 1.98" W x 0.43" H (50.3mm x 50.3mm x 11.0mm) |
| Minimum Load Required | Yes |
| Efficiency | 74% |
| Voltage - Output 1 | 12V |
| Power (Watts) | 3W |
| Applications | Household Appliances, ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| ECCN | EAR99 |
