| RAC03-12SE/277 | ||
|---|---|---|
|
|
||
|
||

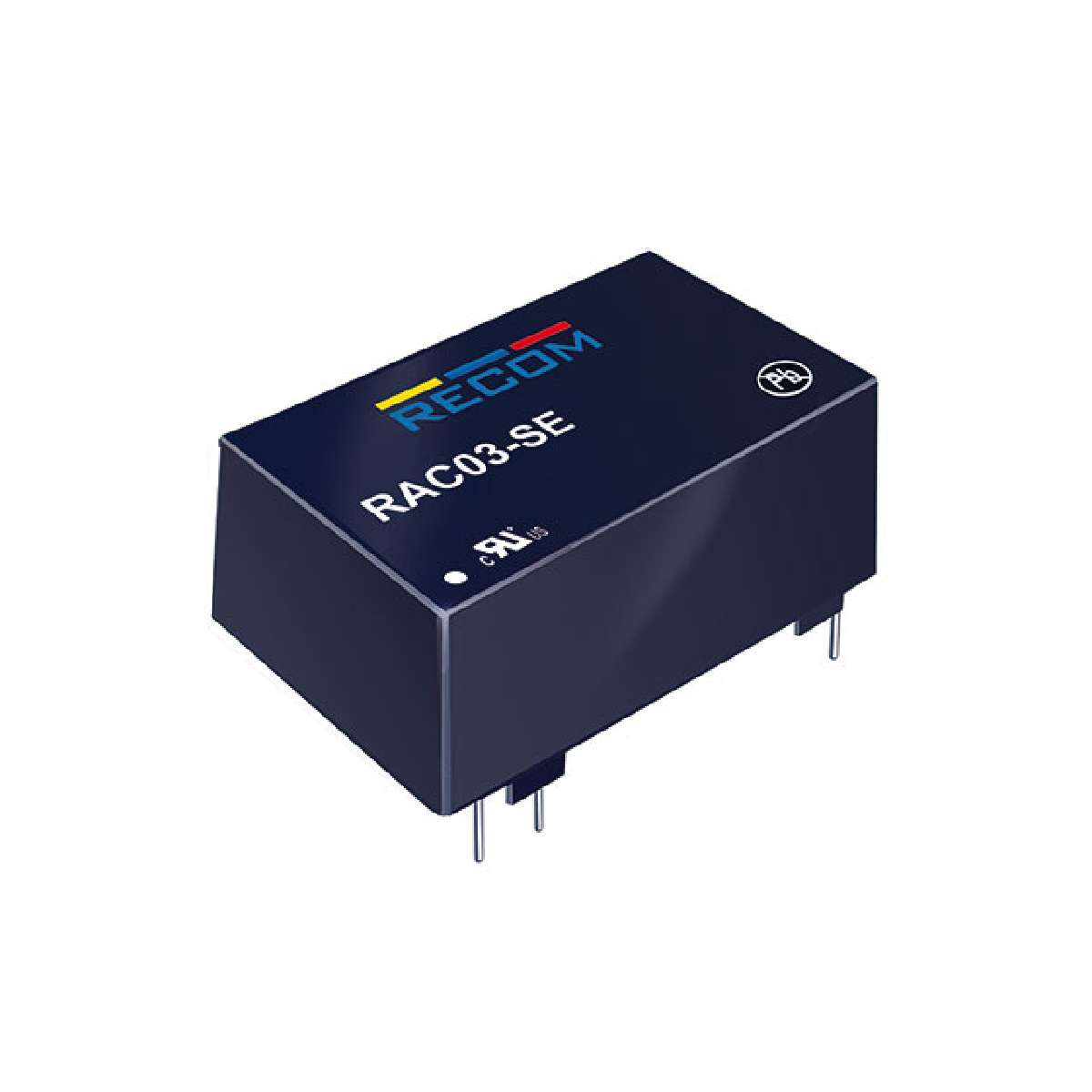

| Product description : RAC-SE Series 3 W Single Output 12 V AC/DC-Converter Module | ||
| SPQ：12 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Number of Outputs | 1 |
|---|---|
| Line Regulation | ±1.5% |
| Load Regulation | ±6% |
| Approvals | CE, cURus |
| Size / Dimension | 1.50" L x 0.96" W x 0.69" H (38.1mm x 24.3mm x 17.4mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Recom Power |
| Voltage - Output 1 | 12V |
| Power (Watts) | 3W |
| Applications | Household Appliances, ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Voltage - Input | 85 ~ 305 VAC |
| Current - Output (Max) | 250mA |
| Power Supply Type | Enclosed |
| Features | OCP, OVP, SCP |
| Part Status | Active |
| Efficiency | 78% |
| Weight | 0.062 lb (28.12g) |
| Series | POWERLINE RAC03-SE/277 |
| Family | AC DC Converters |
| Mounting Type | Through Hole |
| Power (Watts) - Max | 3W |
