| BB15AH | ||
|---|---|---|
|
|
||
|
||

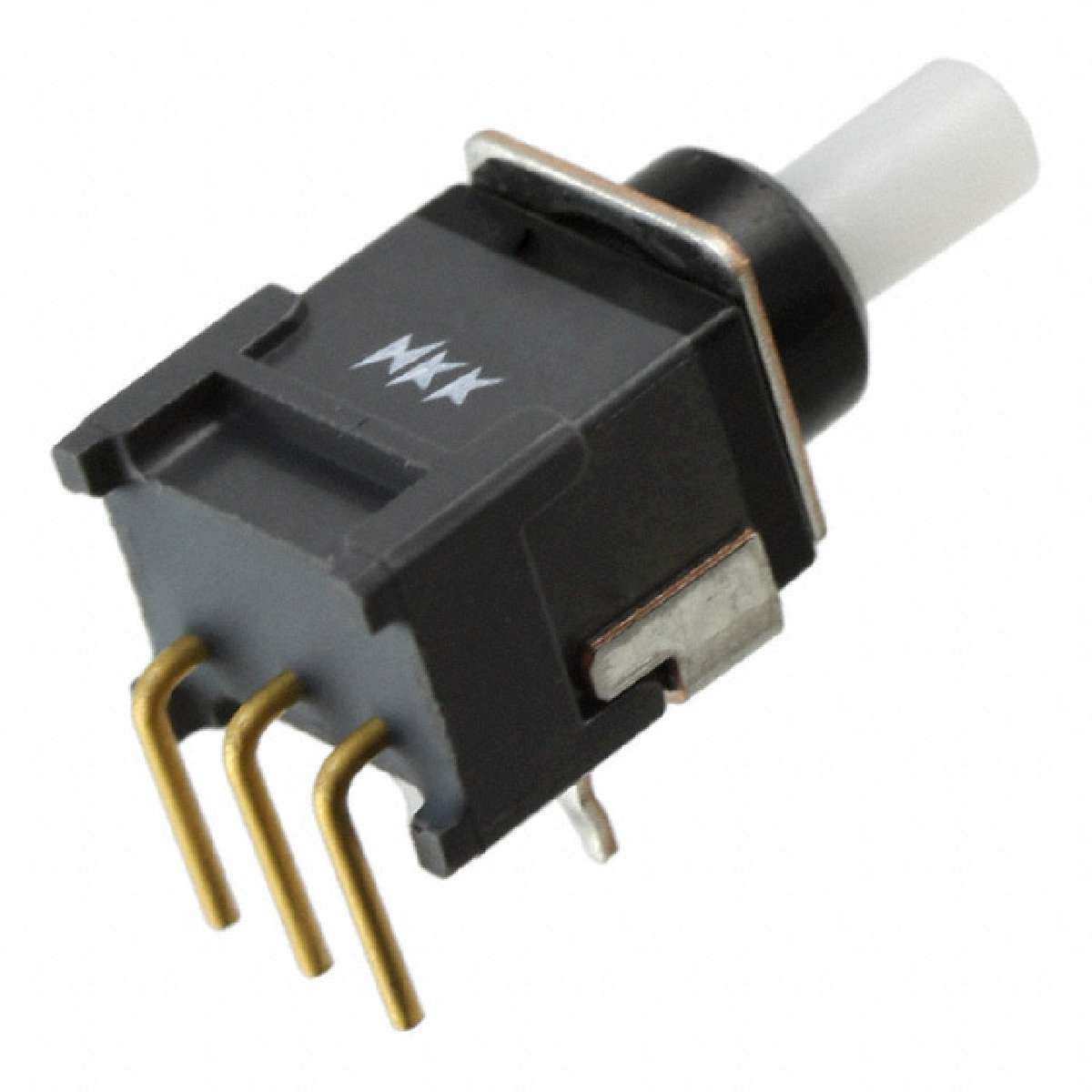

| Product description : BB Series SPDT On-On Right Angle PC Terminals Subminiature Pushbutton Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Product: | Standard Switches |
|---|---|
| Housing Material: | Polyamide, Glass Fiber Reinforced |
| Actuator: | Without Cap |
| Contact Form: | SPDT |
| Illumination Color: | None |
| Switch Function: | ON - (ON) |
| Manufacturer: | NKK Switches |
| Series: | BB |
| Factory Pack Quantity: | 1 |
| Part # Aliases: | BB-15AH |
| Termination Style: | Solder Pin |
| Product Category: | Pushbutton Switches |
| Type: | Sealed |
| Packaging: | Bulk |
| Power Rating: | 0.4 VA |
| Features: | Button/cap ordered separately |
| Contact Plating: | Gold |
| Mounting Style: | Through Hole |
| Terminal Seal: | Epoxy |
| Voltage Rating AC: | 28 V |
| Voltage Rating DC: | 28 VDC |
| Brand: | NKK Switches |
| RoHS: | Details |
| Flammability Rating: | UL 94 V-0 |
| Life: | 50000 Cycles |
| ECCN | EAR99 |
