| B82464A4473K | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

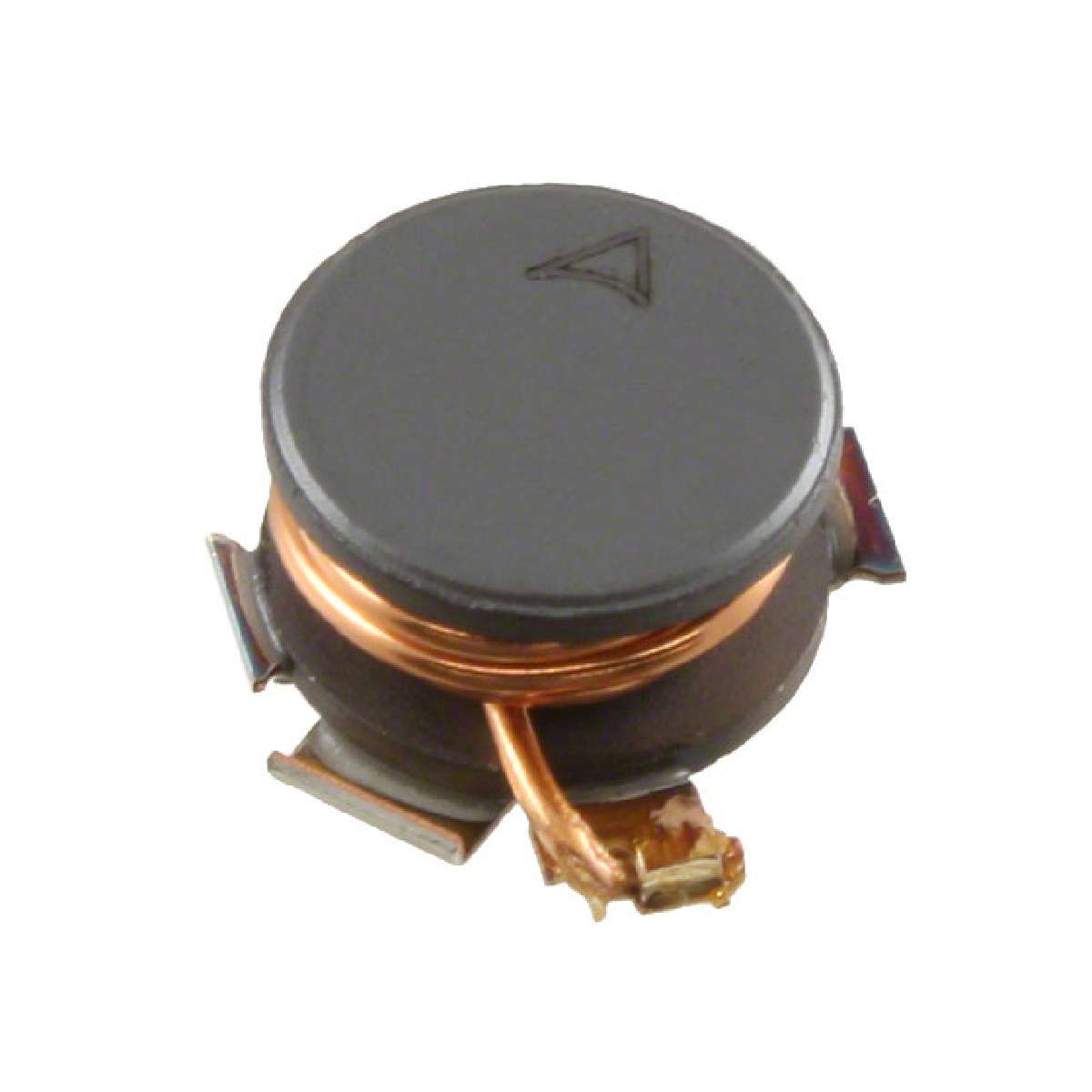

B28464 Series 10.4 x 10.4 mm 47 uH 1.5 A ±10% 140 mΩ Unshielded Inductor
|
||
| 标准包装：750 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| Tolerance | ±10% |
| Ratings | AEC-Q200 |
| Current - Saturation | 1.8A |
| Part Status | Active |
| Manufacturer | EPCOS (TDK) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Unshielded |
| DC Resistance (DCR) | 140 mOhm Max |
| Current Rating | 1.5A |
| ECCN | EAR99 |
| Inductance | 47µH |
| Type | Wirewound |
| Frequency - Self Resonant | 100kHz |
| Size / Dimension | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Series | B82464A4 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 100kHz |
